Cables

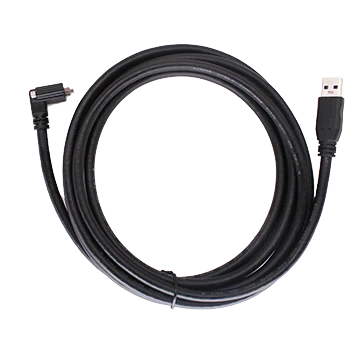

Camera Data Cable, Micro-B male (with screw), Angle (down) to A male, 1m (LS-CBL-0152)
Model LS-CBL-0152
- Length1m
- End BA male
- Diameter6.8 mm
- Max. voltage5 VDC
- JacketNitrile PVC
$39.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, Micro-B male (with screw), Angle (down) to A male, 1m. The USB3.0 Standard (Angle) Data Cable can be used for data transmission and power supply of USB3.0 interface cameras, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0152 |
|---|---|
| Jacket | Nitrile PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | Micro-B male (with screw), Angle (down) |
|---|---|
| End B connector | A male |
| Cable diameter | 6.8 mm |
| Cable mechanical | (26#*1P+EAM)*2+26#*1P*20#*2C+AEB |
| Cable color | Black |
| Connector durability | >750 cycles |
| Applicable scenario | Static scene |
Environment and compliance
| Working temperature | -20°C~ 80°C |
|---|---|
| Certification | RoHS, UL |
Electrical
| Max. voltage | 5 VDC |
|---|
Mechanical
| Length | 1m |
|---|---|
| Min. bending radius | 81.6 mm |
| Shipping weight (estimated) | 0.31 kg |
