Cables

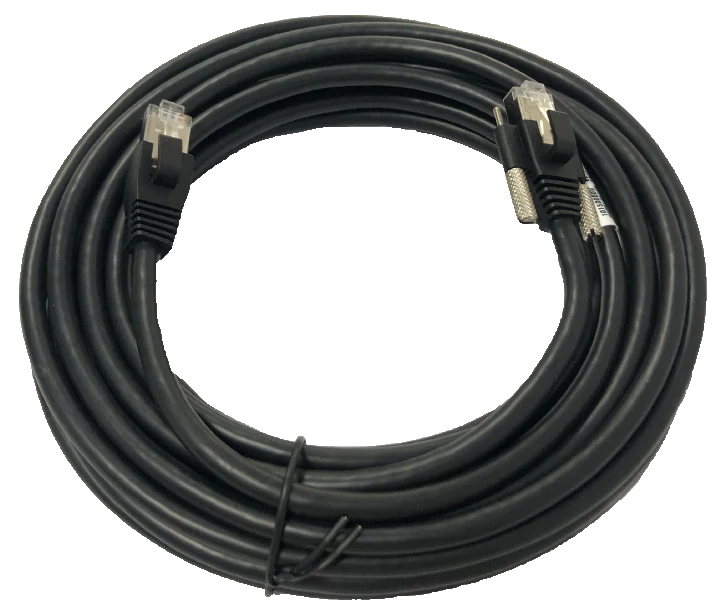

Camera Data Cable, RJ45 (with locking stud) to RJ45, 3 m, drag-chain and robot-arm use (LS-CBL-0102)
Model LS-CBL-0102
- Length3 m
- End ARJ45 (with locking stud)
- End BRJ45
- Diameter6.5 mm
- Max. voltage30 VDC
- JacketPVC
$39.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, RJ45 (with locking stud) to RJ45, 3 m. The RJ45 Super Flex Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0102 |
|---|---|
| Jacket | PVC |
| Max. ±180° torsional cycles | 3 million times |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | RJ45 (with locking stud) |
|---|---|
| End B connector | RJ45 |
| Cable diameter | 6.5 mm |
| Cable mechanical | 4P*26#+AB |
| Cable color | Black |
| Connector durability | ≥750 cycles |
| Applicable scenario | Tank chain, Robot arm |
Environment and compliance
| Working temperature | -20°C~ 75°C |
|---|---|
| Certification | RoHS2.0, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 3 m |
|---|---|
| Min. bending radius | 78 mm |
| Max. U-type bending cycles | 10 million times |
| Max. ±90° bending cycles | 5 million times |
| Shipping weight (estimated) | 0.31 kg |
