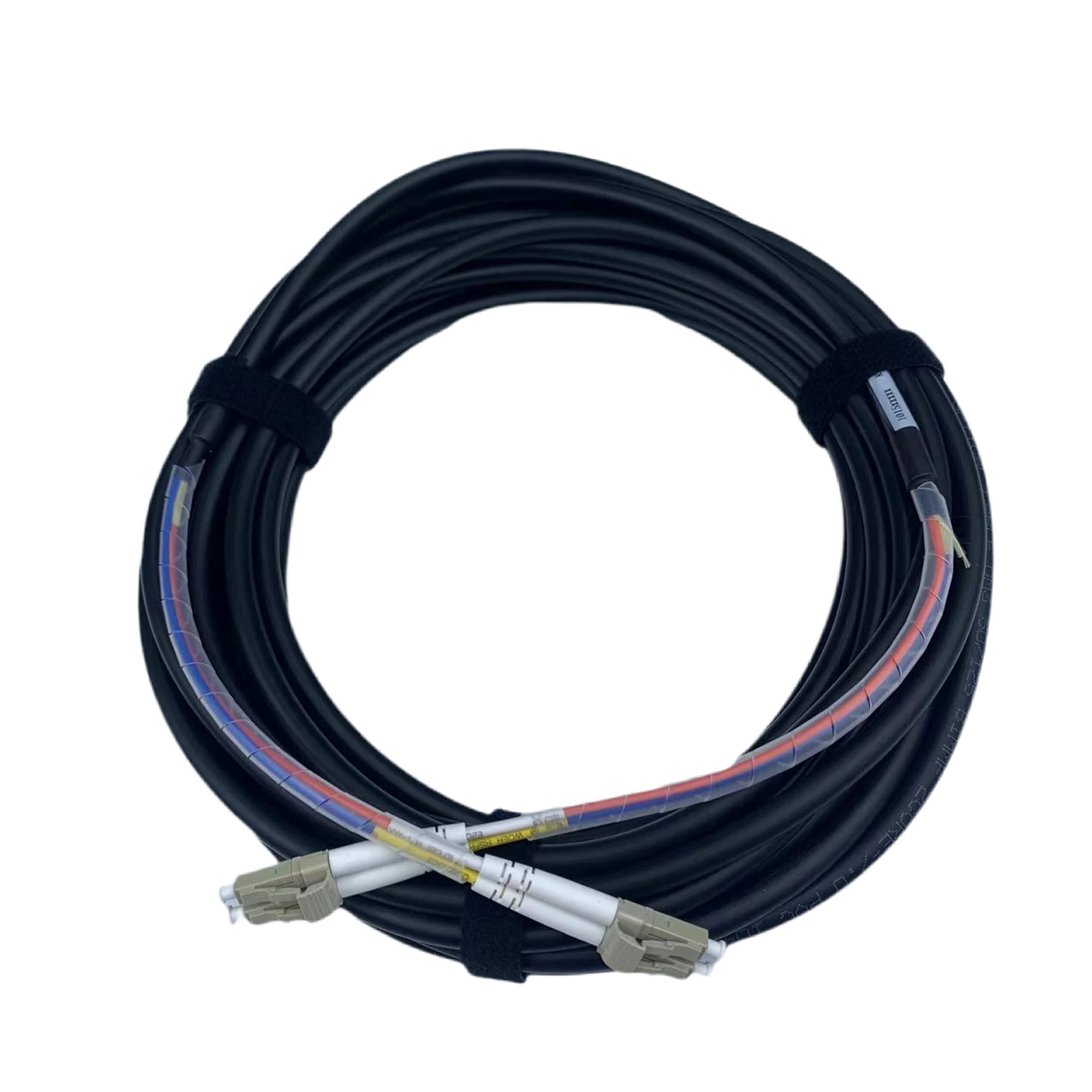

Camera Data Cable, LC (2-core) to LC (2-core), 3 m, static use (LS-CBL-0010)
  • Camera Data Cable, LC (2-core) to LC (2-core), 3 m, static use (LS-CBL-0010)
  • LS-CBL-0010 dimensions (mm)

Cables

Camera Data Cable, LC (2-core) to LC (2-core), 3 m, static use (LS-CBL-0010)

Model LS-CBL-0010

  • Length3 m
  • End ALC (2-core)
  • End BLC (2-core)
  • Diameter6.5 mm
$39.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Camera Data Cable, LC (2-core) to LC (2-core), 3 m, static use (LS-CBL-0010)LS-CBL-0010

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Camera Data Cable, LC (2-core) to LC (2-core), 3 m. The high flex 10 GigE optical fiber patch cord, with central wavelength 850 nm and multimode 50 μm/125 μm, can be used for data transmission of 10 GigE optical fiber port in static scenes.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CBL-0010
Fiber typeMultimode 50 μm/125 μm
Insertion loss≤ 0.30 dB
Return loss≥ 36 dB
PackagingIndividual package

Interfaces and I/O

End A connectorLC (2-core)
End B connectorLC (2-core)
Cable diameter6.5 mm
Cable colorBlack
Connector durability200 mating cycles
Applicable scenarioStatic scenes

Light

Central wavelength850 nm

Environment and compliance

Working temperature–20 °C to 75 °C (–4 °F to 167 °F)
CertificationRoHS

Mechanical

Length3 m
Shipping weight (estimated)0.31 kg
