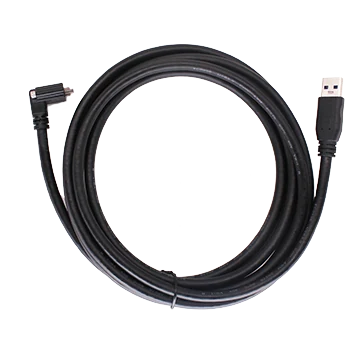

Camera Data Cable, Micro-B male (with screw), Angle (down) to A male, 3 m, drag-chain use (LS-CBL-0145)
Model LS-CBL-0145
- Length3 m
- End BA male
- Diameter4.8 ± 0.2 mm
- Max. voltage5 VDC
- JacketTPU
$39.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, Micro-B male (with screw), Angle (down) to A male, 3 m. USB3.0 ultra-flex (right-angle) cable for data transmission and power to USB3.0 cameras; available in multiple lengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0145 |
|---|---|
| Jacket | TPU |
| Max. ±180° torsional cycles | 5 million times |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | Micro-B male (with screw), Angle (down) |
|---|---|
| End B connector | A male |
| Cable diameter | 4.8 ± 0.2 mm |
| Cable mechanical | AOC-Hybrid-UG-2A1b+4*20AWG |
| Cable color | Black |
| Connector durability | 5, 000 mating cycles |
| Applicable scenario | Static scenes / drag chains |
Environment and compliance
| Working temperature | -20 °C~ 80 °C |
|---|---|
| Certification | RoHS |
Electrical
| Max. voltage | 5 VDC |
|---|
Mechanical
| Length | 3 m |
|---|---|
| Min. bending radius | 57.6 mm |
| Max. U-type bending cycles | 10 million times |
| Max. ±90° bending cycles | 3 million times |
| Shipping weight (estimated) | 0.31 kg |
