Flex-circuit positioning: retain the corner, outline and trace detail
The supplied blue-light image shows an L-shaped flexible-circuit region with visible outline and trace detail. The imaging lesson is to preserve stable geometry while accounting for the way a flexible part changes shape in its fixture.
Fixture the flex before trusting its projected position.
Real camera capture
- Light in sourceLS-FCS200 · blue
- EvidenceReal application-lab image
- Imaging kitCamera, lens and fixture proposed
- AcceptanceValidate on representative parts
Lighting application-lab catalog capture

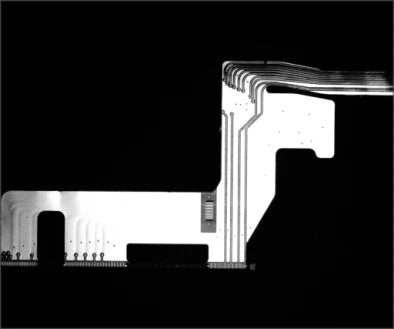

What the camera saw
Cropped from the source test sheet; original test annotations are retained. Captures are not generated or enhanced. Drag a comparison slider, or open any image full size.
The challenge
A flexible circuit can bend or curl, changing both its projected outline and its reflections.
A rule based on one trace or hole must remain stable across the accepted part and fixture variation.
How it was solved
The source identifies the blue 200 mm flat coaxial light for flexible-circuit positioning. The supplied image shows only the captured region, not a documented whole-part field.
Choose reference geometry from the actual circuit drawing and support the part consistently. Test the proposed camera and macro lens on that fixture rather than transferring a position result from the source image.
Why it works
- 1
The illumination records bright substrate regions, dark openings and fine traces as complementary visible features.
- 2
Those features can be tested for localization, but they do not establish electrical continuity or a calibrated assembly offset.
Lighting application-lab catalog capture
Evidence you can inspect
An L-shaped bright region, edge features and trace paths are visible.
The catalog labels this flexible-circuit positioning under a blue flat coaxial light.
No source circuit dimensions, fixture, position error, camera field or electrical result is provided.
From image contrast to a production decision
What to validate on your part
- 01
Control the flexible part
Specify support and flattening without stretching or damaging the circuit.
- 02
Choose robust reference features
Test features that remain stable across accepted trace, hole and outline tolerances.
- 03
Validate position and function separately
Measure localization errors independently and retain any required electrical acceptance test.
From the demo to your test bench
Parts in this setup
LightTested
LS-FCS200
200 x 200 mm Flat coaxial light (LS-FCS200)
Blue LS-FCS200 named in the source flexible-circuit positioning example. Printed emitting area 200 × 200 mm and housing 240 × 240 × 10 mm.
$789.00
In proposed setup
CameraOur pick
MV-CS050-10GM(NPOE)
Hikrobot MV-CS050-10GM(NPOE) 5 MP GigE area scan camera, IMX264, Gen 2 basic version, Mono, Without PoE
5 MP monochrome global-shutter camera proposed for a contrast trial. Confirm field, sampling, exposure and algorithm on the actual application.
$819.00
In proposed setup
LensOur pick
LS-KF1628M-ML
16mm, F2.8, 1.1", C-mount, Macro lens (52 mm (-0.25X) to 546 mm (-0.03X)) (LS-KF1628M-ML)
Proposed 16 mm C-mount macro lens at its printed 0.1x magnification / 152 mm working-distance pair. The proposed 2448 × 2048 sensor with 3.45 µm pixels gives a derived 84.456 × 70.656 mm field; confirm focus, coverage and residual distortion on the real sample.
$319.00
In proposed setup
Camera test stationOur pick
LS-BT-XZ-G-6-6045
Camera stand with XZ adjustment and glass tray, height 600 mm (LS-BT-XZ-G-6-6045)
600 mm column, 600 × 450 mm breadboard, XZ adjustment, glass tray and two lighting holders as listed. Proposed bench fixture; confirm loads, travel and camera/lens clamps.
$359.00
In proposed setup
"Tested" identifies the part named in the source. "Our pick" is a proposed alternative or supporting part. Confirm colour, optics, controllers, power supplies, cables and mounting before ordering.
The set-up
| Tested light | LS-FCS200, blue |
|---|---|
| Source camera / lens | Not specified in the source image caption; proposed parts below |
| Proposed lens point | 0.1x at 152 mm, printed lens pair |
| Derived proposed field | 84.456 × 70.656 mm = sensor dimensions / 0.1x; not a source test field |
| Light-guide area (printed) | 200 × 200 mm |
| Housing (printed) | 240 × 240 × 10 mm |
| Mounting (proposed) | LS-BT-XZ-G-6-6045; 600 mm column, 600 × 450 mm base, glass tray and two included lighting holders |

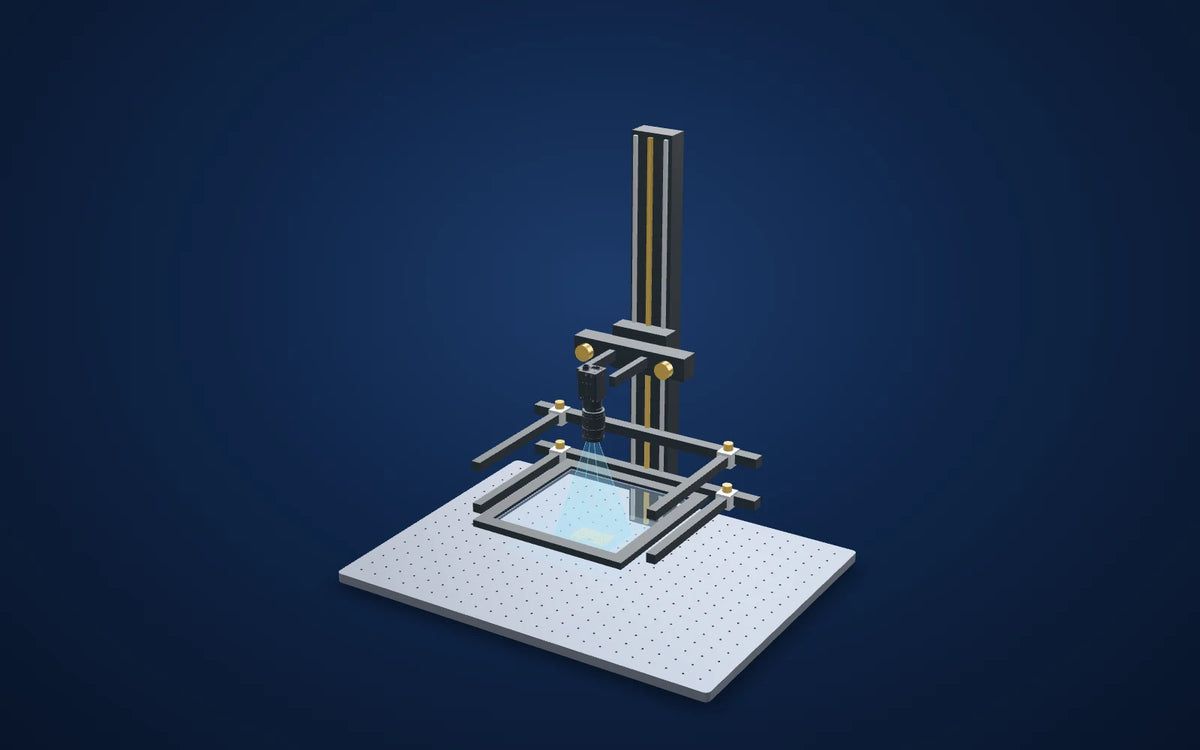

Mount the optics with intent
The station is an optical test bench, with its two lighting holders included in the catalog listing. The 3D column and base follow the published height and footprint. Carriages, clamps and part supports are schematic: confirm camera screw pattern, lens support, light fasteners, permissible load and actual travel before ordering.
Complete the electrical system
Select a controller against the exact light voltage, drive mode and power, then confirm camera data/power/I/O cables and a suitable PC. These are not silently added to the proposed optical kit.
Build this system
Start from this setup, adapt it to your part.
The configurator opens with this study's camera, lens, light and station picked. Swap any part, check fit and price, then buy or ask for a quote.
Camera and available lens CAD are published models. Lens and light envelopes use printed dimensions. The linked station uses its published base size and column height; carriage, brackets, fittings, parts and spacing are illustrative. Confirm load, travel, fasteners and clearances before ordering. Light paths explain the arrangement and do not simulate optical performance. Representative part geometry is illustrative, not reconstructed inspection evidence. The specimen and lighting angle are representative, not dimensions or settings recovered from the source capture.
