Carrier-tape pockets: see components through a reflective cover film
The source compares two flat-dome lights on the same type of glossy part. The revised illumination makes the useful surface information clearer; the manufacturer's images show the change without a claimed production detection rate.
Treat cover-film glare as an optical problem before changing the algorithm.
Manufacturer test image
- Proposed light housing (spec)140 × 140 × 11.5 mm
- EvidenceManufacturer test images
- Camera (proposed)2448 × 2048 monochrome
- Field (derived proposal)84.46 × 70.66 mm
Explore it in 3D
Camera and available lens CAD are published models. Lens and light envelopes use printed dimensions. The linked station uses its published base size and column height; carriage, brackets, fittings, parts and spacing are illustrative. Confirm load, travel, fasteners and clearances before ordering. Light paths explain the arrangement and do not simulate optical performance. The part geometry is illustrative and is not reconstructed from the camera image. The proposed field is derived from the printed lens magnification and camera pixel dimensions; actual coverage and focus need a bench check. Representative part geometry is illustrative, not reconstructed inspection evidence. The light-guide panel is shown transparent to explain viewing through it; its internal construction is schematic.
Lighting manufacturer's test sheet
What the camera saw
Images from the manufacturer's application test, cropped; the original annotations are kept and nothing is generated or enhanced. Drag a comparison slider, or open any image full size.
Revised flat dome: Revised white flat dome: repeated pockets and chip details are clearer through the film.
The challenge

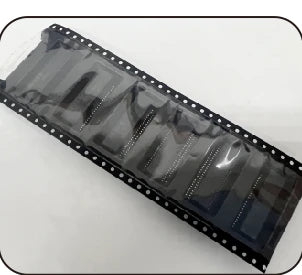

The cover film on component carrier tape reflects the light into the lens. That reflection competes with the chip and pocket detail the inspection needs.
How it was solved
The application sheet compares white LS-SDL-0127 with white LS-DOM-0050. The latter is the proposed light below.
Camera, macro lens, station and final part spacing are proposed. The source does not state its exposure, camera or lens.
Why it works
- 1
A broad diffuse field reduces localized glare and patchy reflections.
- 2
The source comparison demonstrates image visibility. It does not establish a smallest detectable defect or a guarantee that every surface finish will behave the same way.
Lighting manufacturer's test sheet
Evidence you can inspect
The revised flat-dome capture shows clearer repeated chip and lead detail through the film.
The source captions describe reduced reflection and clearer imaging; no quantitative inspection result is given.
A lighting manufacturer's application demonstration. The source supplies no customer deployment, defect-size limit, repeatability study or production false-call data. Proposed camera, lens, field, mounting and spacing are not the system the manufacturer tested.
From image contrast to a production decision
What to validate on your part
- 01
Include finish variation
Collect good and known defective parts across realistic gloss, colour and coating variation.
- 02
Lock the geometry
Fix the light height, camera axis and fixture tilt before comparing image contrast.
- 03
Verify visibility and false calls
Test the smallest relevant surface feature at the final exposure, including glare and dust that must be tolerated.
From the demo to your test bench
Parts in this setup
LightTested
LS-DOM-0050

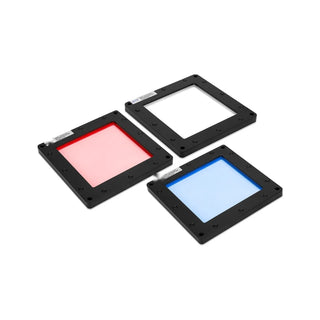

Flat dome light, 140 x 140 x 11.5 mm (LS-DOM-0050)
Revised white flat dome used in the source comparison; 140 × 140 × 11.5 mm housing and 100 × 100 mm emitting area.
$539.00
In proposed setup
LightTested
LS-SDL-0127
100 x 100 mm Flat shadowless light (LS-SDL-0127)
Earlier white flat dome used in the source comparison.
$389.00
Separate test / alternative
CameraOur pick
MV-CS050-10GM(NPOE)
Hikrobot MV-CS050-10GM(NPOE) 5 MP GigE area scan camera, IMX264, Gen 2 basic version, Mono, Without PoE
5 MP monochrome global-shutter camera, 2448 × 2048 pixels, 3.45 µm pixels and C-mount. Proposed for a bench contrast trial; the source does not identify its camera. Requires separate camera power; this NPOE model does not support PoE.Not available in the United States. Available for delivery to other countries.
$819.00
In proposed setup
LensOur pick
LS-FFL-1454
16 mm, F2.8, 1.1", C-mount, Macro lens (52 mm (-0.25X) to 546 mm (-0.03X)) (LS-FFL-1454)
16 mm C-mount macro lens; its printed 0.1x at 152 mm working distance gives a derived 84.46 × 70.66 mm field on the proposed camera. Confirm coverage, focus and the required smallest feature.
$319.00
In proposed setup
Camera test stationOur pick
LS-MNT-0097
Camera stand with XZ adjustment and glass tray, height 600 mm, 600 x 450 mm base (LS-MNT-0097)
600 mm column, 600 × 450 mm breadboard, XZ adjustment, glass tray and two lighting holders as listed. Proposed bench fixture; confirm loads, travel and camera/lens clamps.
$1,309.00
In proposed setup
"Tested" marks the part the manufacturer used in its application test. "Our pick" is our proposed alternative or supporting part, not tested by the manufacturer in this set-up. Confirm colour, optics, controllers, power supplies, cables and mounting before ordering.
The set-up
| Lighting evidence | Manufacturer test images |
|---|---|
| Camera and lens | Proposed catalog components; source camera unspecified |
| Proposed field (derived) | 84.46 × 70.66 mm at 0.1x |
| Lens working distance (spec) | 152 mm at the listed magnification |
| Mounting (proposed) | LS-MNT-0097 · 600 mm station, glass tray and two lighting holders |
Mount the optics with intent
The station is an optical test bench, with its two lighting holders included in the catalog listing. The 3D column and base follow the published height and footprint. Carriages, clamps and part supports are schematic: confirm camera screw pattern, lens support, light fasteners, permissible load and actual travel before ordering.
Complete the electrical system
Select a controller against the exact light voltage, drive mode and power, then confirm camera data/power/I/O cables and a suitable PC. These are not silently added to the proposed optical kit.
Build this system
Start from this setup, adapt it to your part.
The configurator opens with this study's camera, lens, light and station picked. Swap any part, check fit and price, then buy or ask for a quote.
Camera and available lens CAD are published models. Lens and light envelopes use printed dimensions. The linked station uses its published base size and column height; carriage, brackets, fittings, parts and spacing are illustrative. Confirm load, travel, fasteners and clearances before ordering. Light paths explain the arrangement and do not simulate optical performance. The part geometry is illustrative and is not reconstructed from the camera image. The proposed field is derived from the printed lens magnification and camera pixel dimensions; actual coverage and focus need a bench check. Representative part geometry is illustrative, not reconstructed inspection evidence. The light-guide panel is shown transparent to explain viewing through it; its internal construction is schematic.
