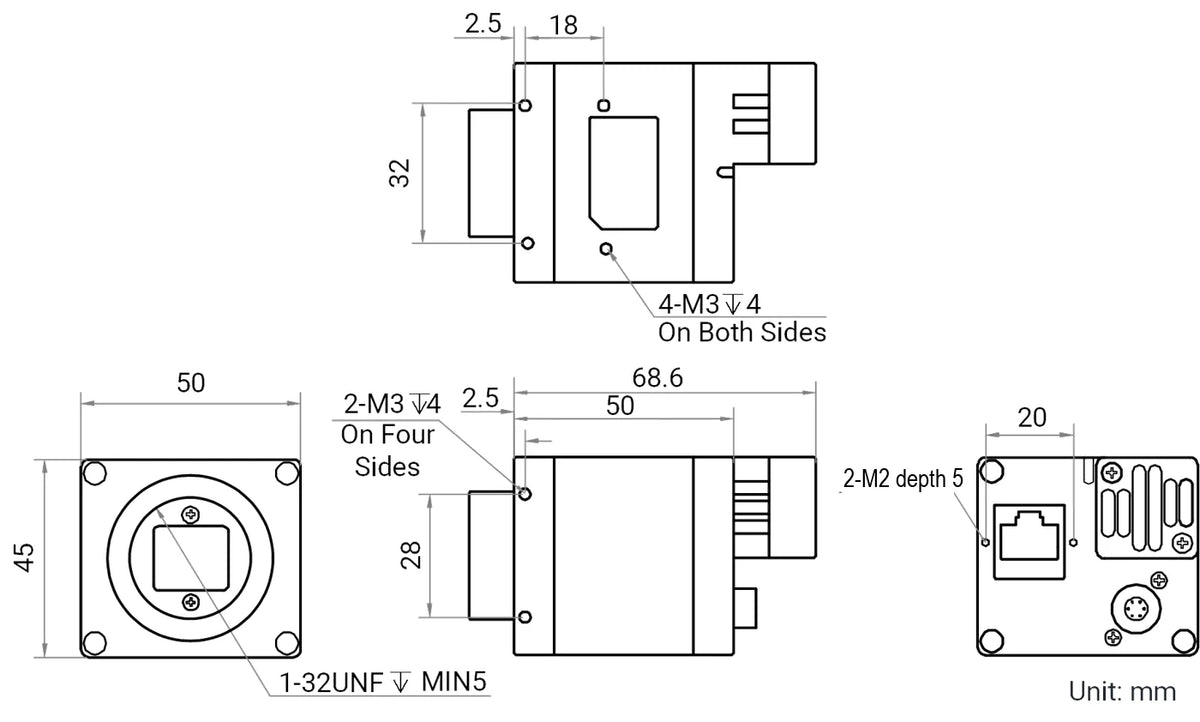

  • MV-CH120-90TM-C-NF dimensions (mm)

Area scan cameras

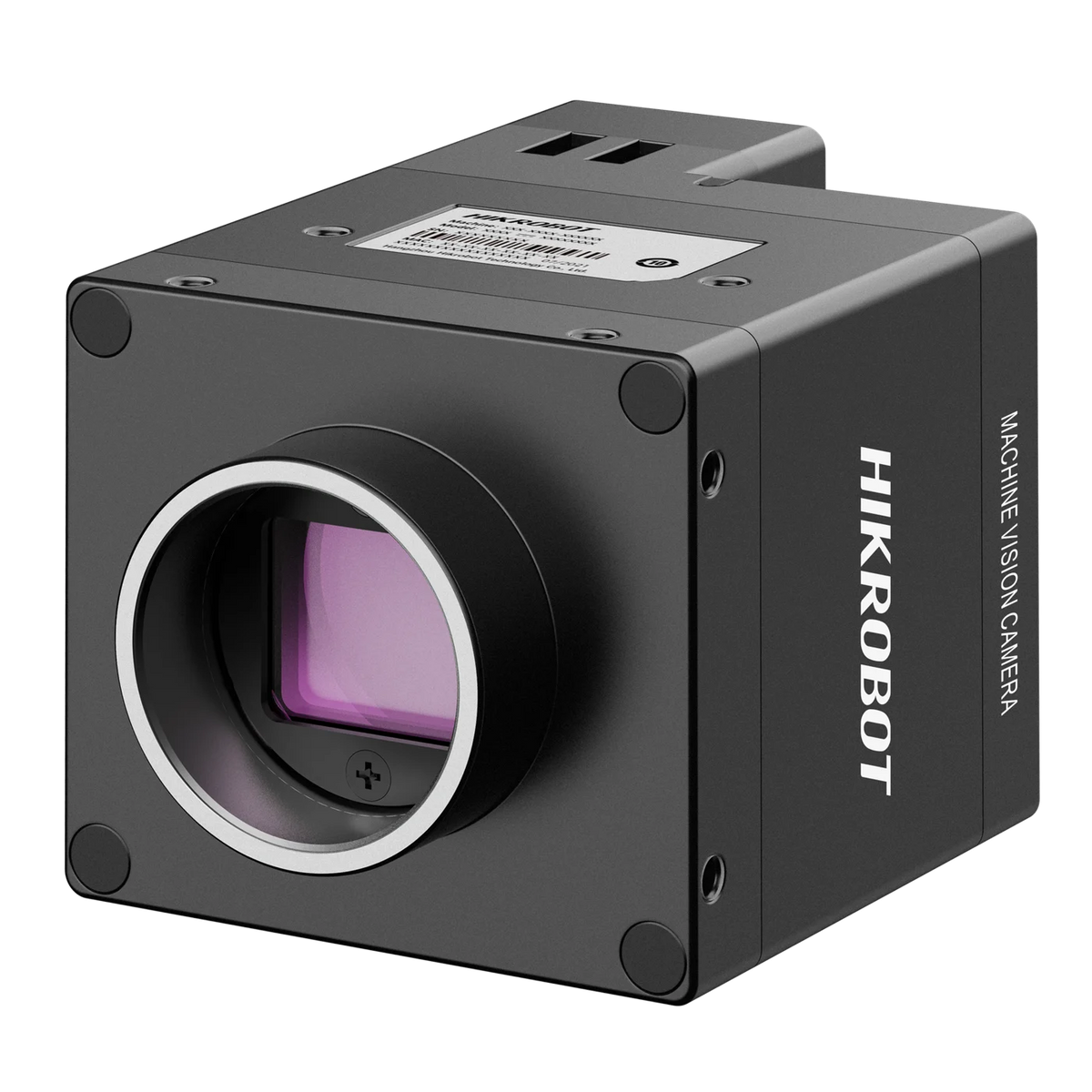

Hikrobot MV-CH120-90TM-C-NF 12MP Area Scan Camera, GMAX3412, 10GigE, Mono, C-mount, with fan

Model MV-CH120-90TM-C-NFHikrobot

  • Resolution4096 × 3072
  • SensorCMOS, global shutter
  • Speed94 fps @ 4096 × 3072 Mono 8
  • Lens mountC-mount
  • Mono / colourMono
  • Pixel size3.4 μm × 3.4 μm
$5,099.00
List price

Ships in 2-3 weeks

0.4 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CH120-90TM-C-NF: resolution 4096 x 3072; sensor type CMOS, global shutter; sensor size 1.1"; max. frame rate 94 fps @ 4096 x 3072 Mono 8.

Hikrobot MV-CH120-90TM-C-NF 12MP Area Scan Camera, GMAX3412, 10GigE, Mono, C-mount, with fan. Resolution of 4096 × 3072, pixel size of 3.4 μm × 3.4 μm. Compatible with C-mount lens.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CH120-90TM-C-NF
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX3412
Pixel size3.4 μm × 3.4 μm
Sensor size1.1"
Resolution4096 × 3072
Max. frame rate94 fps @ 4096 × 3072 Mono 8
Dynamic range60.1 dB
SNR39 dB
Gain0 dB to 6.1 dB
Exposure time6 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interface10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC
Power consumption10.2 W @ 12 VDC

Mechanical

Lens mountC-mount
Dimension50 mm × 45 mm × 68.6 mm (2.0" × 1.8" × 2.7")
WeightApprox. 212 g (0.5 lb.)
Shipping weight (estimated)0.40 kg

Engineering data

Field of view and resolution with the MV-CH120-90TM-C-NF

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area13.93 × 10.44 mm1.1" optical format
Lens image circle needed≥ Ø 17.4 mmC-mount
Pixel pitch3.4 µm4096 x 3072 px
Image data at max frame rate1183 MB/sCalculated: 94 fps × 4096 × 3072 px at 8 bit · 10GigE carries 1250 MB/s nominal
With a 16 mm lens at 500 mm435 × 326 mm0.106 mm per pixel
Dynamic range60.1 dB
SNR39 dB
Power consumption10.2 Wat 12 V DC
ShutterGlobal
Exposure range6 µs to 10 s
Weight212 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm522 × 392 mm0.128 mm per pixel871 × 652 mm0.213 mm per pixel1741 × 1305 mm0.425 mm per pixel
12 mm348 × 261 mm0.085 mm per pixel580 × 435 mm0.142 mm per pixel1161 × 870 mm0.283 mm per pixel
16 mm261 × 196 mm0.064 mm per pixel435 × 326 mm0.106 mm per pixel871 × 652 mm0.213 mm per pixel
25 mm167 × 125 mm0.041 mm per pixel279 × 209 mm0.068 mm per pixel557 × 418 mm0.136 mm per pixel
35 mm119 × 89.5 mm0.029 mm per pixel199 × 149 mm0.049 mm per pixel398 × 298 mm0.097 mm per pixel
50 mm83.6 × 62.6 mm0.02 mm per pixel139 × 104 mm0.034 mm per pixel279 × 209 mm0.068 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
