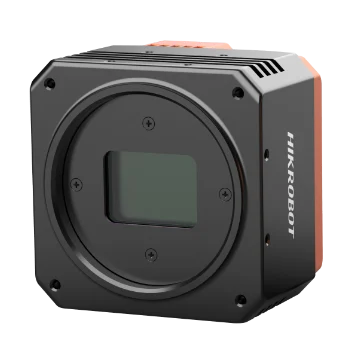

Hikrobot MV-CH120-15TC-M58S-NF 12MP Area Scan Camera, 10GigE, IMX253, Color, M58-mount

Model MV-CH120-15TC-M58S-NFHikrobot

Resolution4096 × 3000
SensorCMOS, global shutter
Speed68.3 fps @ 4096 × 3000
Lens mountM58
Mono / colourColor
Pixel size3.45 μm × 3.45 μm

$3,929.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.87 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CH120-15TC-M58S-NF 12MP Area Scan Camera, 10GigE, IMX253, Color, M58-mount. Resolution of 4096 × 3000, and pixel size of 3.45 μm × 3.45 μm. Supports auto or manual adjustment for gain, exposure time, Gamma correction, LUT, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CH120-15TC-M58S-NF
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX253
Pixel size	3.45 μm × 3.45 μm
Sensor size	1.1"
Resolution	4096 × 3000
Max. frame rate	68.3 fps @ 4096 × 3000
Dynamic range	71.6 dB
SNR	39.7 dB
Gain	0 dB to 18 dB
Exposure time	UltraShort exposure mode: 2 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8, Bayer RG 8; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	10 Gigabit Ethernet (10000Mbit/s), compatible with Gigabit Ethernet (1000Mbit/s)
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP40 ( under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC
Power consumption	Typ. 10.1 W @ 24 VDC

Mechanical

Lens mount	M58*0.75, flange back length 11.48 mm
Dimension	74 mm × 74 mm × 72.4 mm (2.9" × 2.9" × 2.9")
Weight	Approx. 550 g (1.2 lb)
Shipping weight (estimated)	0.87 kg

Downloads

Features

Resolution of 4096 × 3000, and pixel size of 3.45 μm × 3.45 μm.
Supports auto or manual adjustment for gain, exposure time, Gamma correction, LUT, etc.
Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
Compact design with mounting holes on panels for flexible mounting.
Compatible with GigE Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
