Area scan cameras

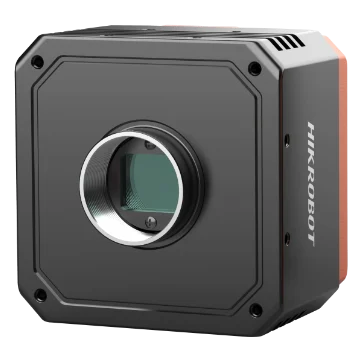

Hikrobot MV-HH2500-TM 25 MP 1.1" CMOS 10GigE industrial area scan camera
Model MV-HH2500-TMHikrobot
- Resolution5120 × 5120
- SensorCMOS, global shutter
- Speed41.5 fps @5120 × 5120 Mono 8
- Lens mountC-mount
- Mono / colourMono
- Pixel size2.5 μm × 2.5 μm
$1,489.00
Ships in 2-3 weeks
0.93 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-HH2500-TM 25 MP 1.1" CMOS 10GigE industrial area scan camera. 25 MP resolution, 2.5 µm pixel size C-mount lens compatible to reduce optical system cost
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-HH2500-TM |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1" |
| Resolution | 5120 × 5120 |
| Max. frame rate | 41.5 fps @5120 × 5120 Mono 8 |
| Dynamic range | 63 dB |
| SNR | 36 dB |
| Gain | 2.0x ~ 5.0x |
| Exposure time | Ultra-short exposure time: 3 μs to 8 μs; Standard exposure time: 9 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
|---|---|
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
|---|
Electrical
| Power supply | 9 ~ 24 VDC |
|---|---|
| Power consumption | 9.7 W@12 VDC |
Mechanical
| Lens mount | C-Mount, Flange focal distance 17.52 mm; M58*0.75, Flange focal distance 11.48 mm |
|---|---|

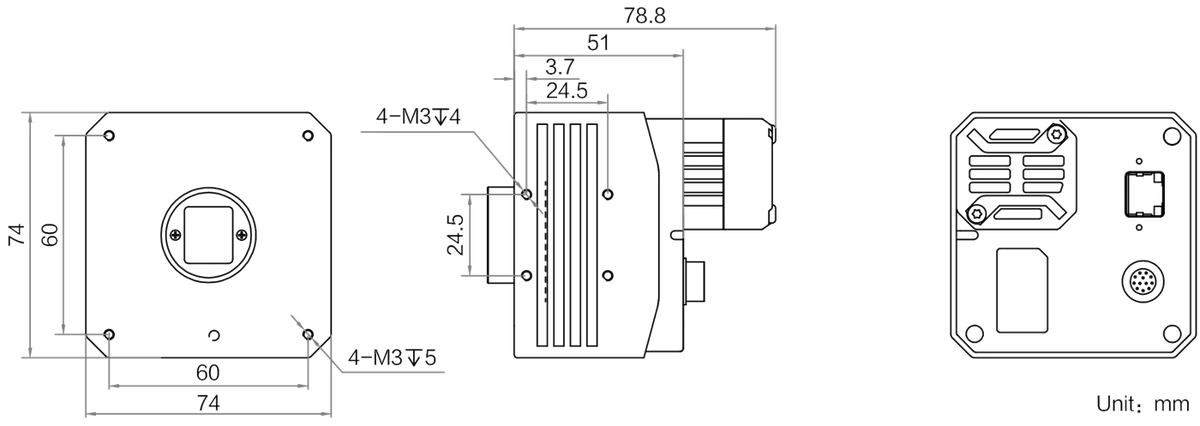

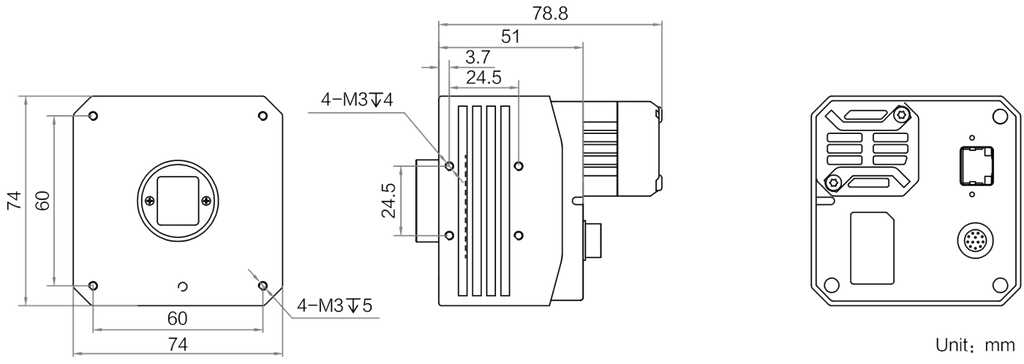

| Dimension | 74 mm × 74 mm × 78.8 mm |
| Weight | C-mount camera: approx. 590 g; M58-mount camera: approx. 550 g |
| Shipping weight (estimated) | 0.93 kg |
