Frame grabbers
Hikrobot MV-GT2101 Single-port RJ45 10GbE network card
Model MV-GT2101Hikrobot
- InterfacePCI-E gen3 x 4
- Size95.3 mm × 120 mm × 21.6 mm
- Ports1 port
- Delivery bandwidth3300 MB/s (peak bandwidth)
$1,429.00
Ships in 2-3 weeks
0.19 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GT2101 Single-port RJ45 10GbE network card. General-purpose network card with up to 10 Gbps per port Supports IEEE 802.3
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GT2101 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen3 x 4 |
| Standard | IEEE802.3 |
| Camera type supported | 10 GigE industrial camera |
| Camera quantity supported | Up to 1 |
| Camera connection speed | 1000/2500/5000/10000 Mbps |
| Stream | 1 |
| Cooling mode | Natural cooling |
| Jumbo frame | 9 KB |
Interfaces and I/O
| Interface | RJ45 × 1 |
|---|
Environment and compliance
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | RoHS, CE, KC |
Computing
| Operating system | Windows 10, Windows 11, Linux |
|---|
Electrical
| Power consumption | 12.5 W (excluding PoE) |
|---|
Mechanical
| Delivery bandwidth | 3300 MB/s (peak bandwidth) |
|---|---|

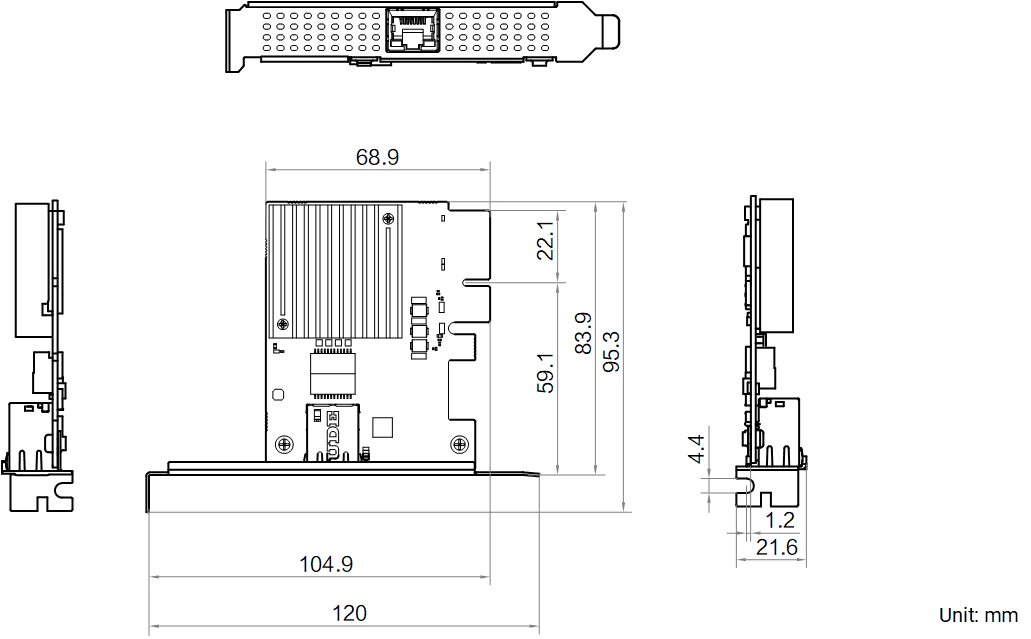

| Dimension | 95.3 mm × 120 mm × 21.6 mm |
| Weight | 60.83 g |
| Shipping weight (estimated) | 0.19 kg |
