Frame grabbers

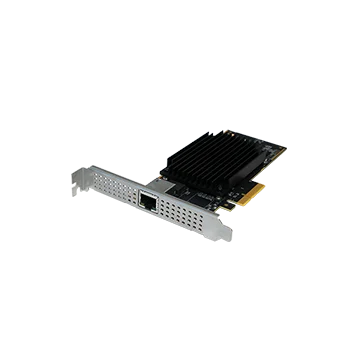

Hikrobot MV-GT2001 Single 10GigE Ethernet Adaptor
Model MV-GT2001Hikrobot
- InterfacePCI-E gen3 × 4
- Ports1 port
- Camera type supported10 GigE industrial camera
- Camera connection speed1000 Mbps / 10000 Mbps
$999.00
Quoted price: add to quote for lead time and volume pricing.
End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.
Ships in 2-3 weeks
0.27 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GT2001 Single 10GigE Ethernet Adaptor. Max. 10 Gbps data transfer speed of single RJ45 connector. Supports IEEE 802.3 protocol.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GT2001 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen3 × 4 |
| Standard | IEEE 802.3 |
| Camera type supported | 10 GigE industrial camera |
| Camera quantity supported | 1 at most |
| Camera connection speed | 1000 Mbps / 10000 Mbps |
| Stream | 1; 2 |
| Cooling mode | Natural cooling |
| Jumbo frame | 9.7 KB |
Interfaces and I/O
| Interface | RJ45 × 1 |
|---|
Environment and compliance
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | RoHS, CE, KC |
Computing
| Operating system | 64-bit Windows 7/10/11, Linux |
|---|
Electrical
| Power consumption | Typ. 7 W |
|---|
Mechanical
| Delivery bandwidth | 31.5 Gbps (max. transmission bandwidth); 20 Gbps (sustained transmission bandwidth) |
|---|---|
| Dimension | 160.9 mm × 104.9 mm × 21.6 mm (6.3" × 4.1" × 0.9") |
| Weight | 121 g (0.3 lb.) |
| Shipping weight (estimated) | 0.27 kg |
