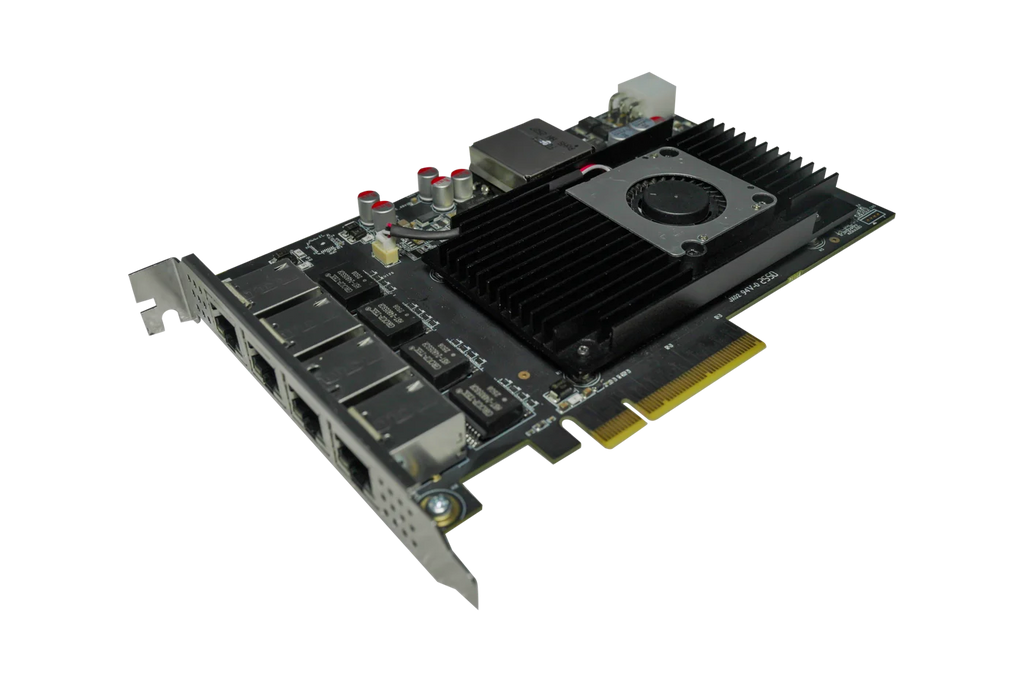

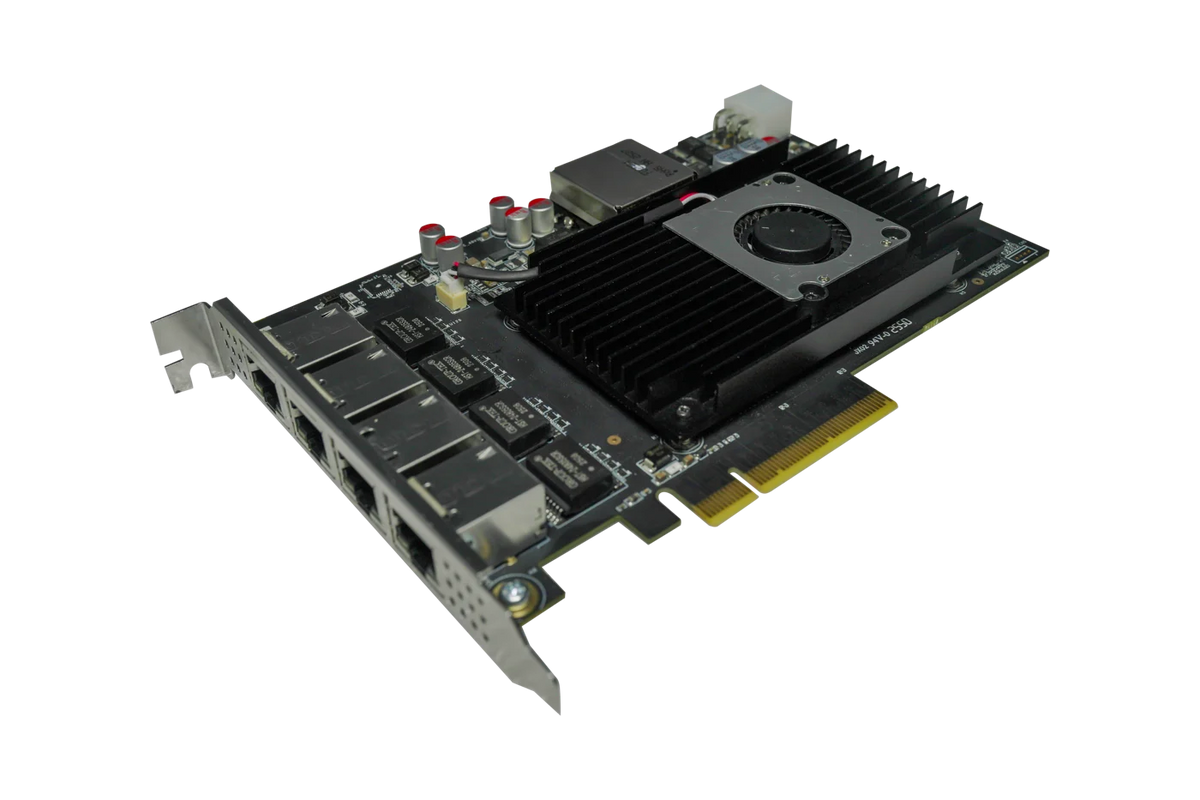

Hikrobot MV-GT2104P Quad-port copper 10GbE NIC, PoE power supported
Model MV-GT2104PHikrobot
- InterfacePCI-E gen3 x 8
- Size181 mm × 126.3 mm × 22.4 mm
- Ports4 ports
- Camera type supported10 GigE industrial camera
$1,429.00
Ships in 2-3 weeks
0.43 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GT2104P Quad-port copper 10GbE NIC, PoE power supported. General-purpose network card with up to 10 Gbps per port Supports IEEE 802.3
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GT2104P |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen3 x 8 |
| Standard | IEEE802.3 |
| Camera type supported | 10 GigE industrial camera |
| Camera quantity supported | 4 at most |
| Camera connection speed | 1000/2500/5000/10000 Mbps |
| Stream | 4 |
| Cooling mode | Natural cooling |
| Jumbo frame | 9 KB |
Interfaces and I/O
| Interface | RJ45 × 4 |
|---|
Environment and compliance
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | RoHS, CE, KC |
Computing
| Operating system | Windows 10, Windows 11, Linux |
|---|
Electrical
| Power consumption | 21.5 W (excluding PoE) |
|---|
Mechanical
| Delivery bandwidth | 7800 MB/s (max. transmission bandwidth); 6700 MB/s (sustained transmission bandwidth) |
|---|---|
| Dimension | 181 mm × 126.3 mm × 22.4 mm |
| Weight | 238.36 g |
| Shipping weight (estimated) | 0.43 kg |
