Area scan cameras

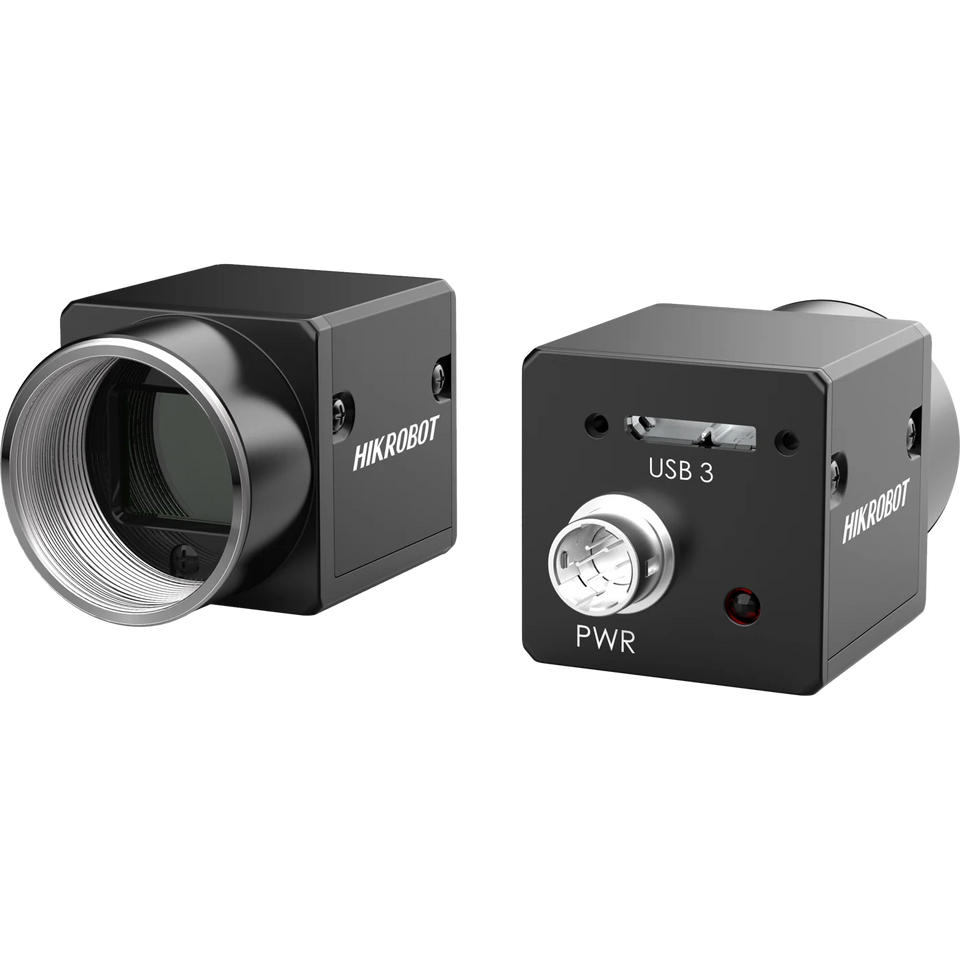

CE Series USB3.0 Area Scan Cameras
- 8 models
- from $209.00
- Series HIK-CE-USB
The CE Series USB3.0 Area Scan Cameras is a range of 8 area scan cameras from Hikrobot, from $209.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1.3 MP, 1/2.7", USB3, Mono, 5 MP, 1/2.5", USB3, Color, 6.3 MP, 1/1.8", USB3, Color, 6.3 MP, 1/1.8", USB3, Mono, 12.1 MP, 1/1.7", USB3, Color, 12.1 MP, 1/1.7", USB3, Mono, 20 MP, 1", USB3, Mono
- Interface
- USB3
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/1.8" - 1/1.56", 1"
Features
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
All 8 models in the CE Series USB3.0 Area Scan Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-CE013-80UM | 1.3 MP, 1/2.7", USB3, Mono | 1280 × 1024 | 148 fps @ 1280 × 1024 | USB3.0, compatible with USB2.0 | $209.00quote | View |
| MV-CE050-30UC | 5 MP, 1/2.5", USB3, Color | 2592 × 1944 | 44.7 fps @ 2592 × 1944 | USB3.0, compatible with USB2.0 | $269.00quote | View |
| MV-CE060-10UM | 6.3 MP, 1/1.8", USB3, Mono | 3072 × 2048 | 42.7 fps @ 3072 × 2048 | USB3.0, compatible with USB2.0 | $359.00quote | View |
| MV-CE060-10UC | 6.3 MP, 1/1.8", USB3, Color | 3072 × 2048 | 42.7 fps @ 3072 × 2048 | USB3.0, compatible with USB2.0 | $359.00quote | View |
| MV-CE120-10UM | 12.1 MP, 1/1.7", USB3, Mono | 4000 × 3036 | 31.9 fps @4000 × 3036 | USB3.0, compatible with USB2.0 | $499.00quote | View |
| MV-CE120-10UC | 12.1 MP, 1/1.7", USB3, Color | 4000 × 3036 | 31.9 fps @4000 × 3036 | USB3.0, compatible with USB2.0 | $499.00quote | View |
| MV-CE200-10UM | 20 MP, 1", USB3, Mono | 5472 × 3648 | 19.2 fps @ 5472 × 3648 | USB3.0, compatible with USB2.0 | $749.00quote | View |
| MV-CS060-RC | 6.3 MP, 1/1.8", USB3, Color | 3072 × 2048 | 42.7 fps @3072 × 2048 | USB3.0 | $969.00 | View |
