Area scan cameras

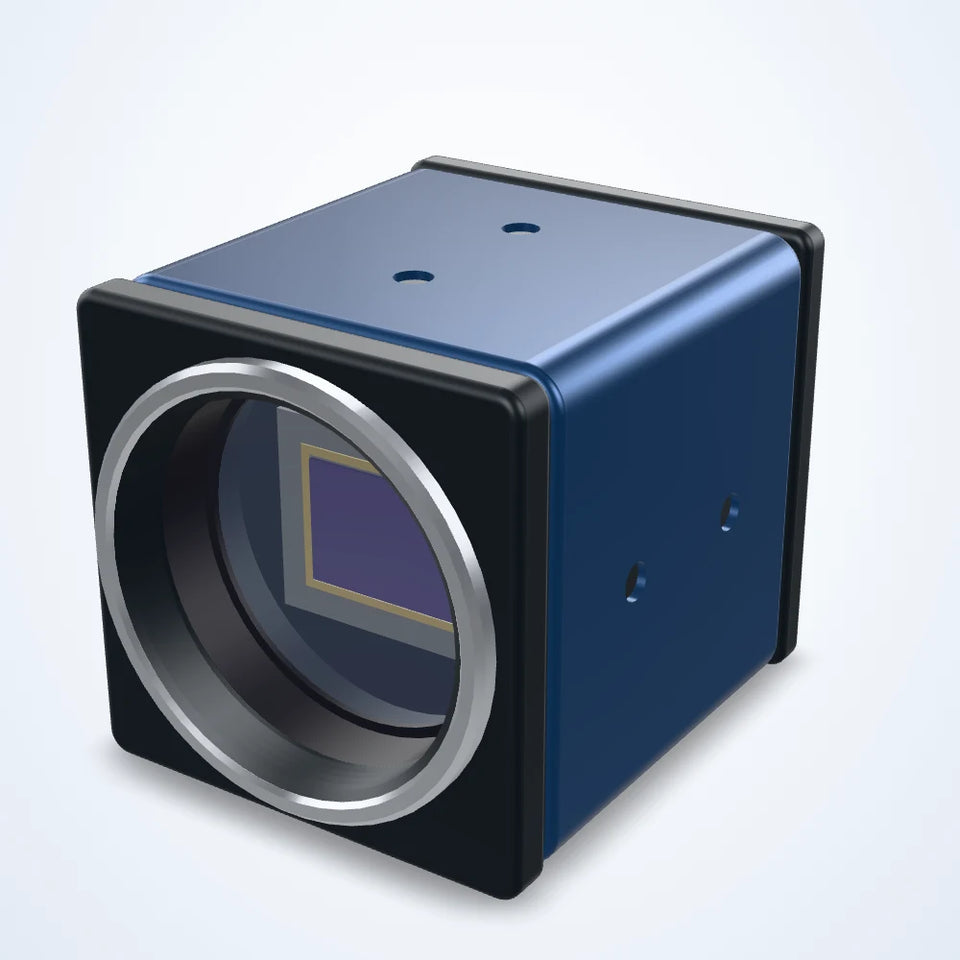

NIR USB3 area scan cameras (LS-CMR-S07)
- 4 models
- from $500.00
- Series LS-CMR-S07
The NIR USB3 area scan cameras (LS-CMR-S07) is a range of 4 area scan cameras from LumaSpec Vision, from $500.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2.1 MP, 1/2.8", USB3, 4.1 MP, 1/1.8", USB3, 4.2 MP, 1.2", USB3, 5.3 MP, 2/3", USB3
- Interface
- USB3
- Resolution
- Up to 3 MP, 5 MP
- Shutter
- Global, Rolling
- Lens mount
- C-mount
- Spectrum
- NIR
- Sensor format
- 1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3", 1.1" - 1.2"
Features
- Global shutter: moving parts are imaged without skew
All 4 models in the NIR USB3 area scan cameras (LS-CMR-S07)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CMR-0097 | 2.1 MP, 1/2.8", USB3 | 1920 px x 1080 px | 120.3 fps | USB 3.0 | $500.00 | View |
| LS-CMR-0098 | 4.1 MP, 1/1.8", USB3 | 2688 x 1520 | 90 fps | USB 3.0 | $650.00 | View |
| LS-CMR-0099 | 4.2 MP, 1.2", USB3 | 2048 × 2048 | 45 fps | USB 3.0 | $1,800.00 | View |
| LS-CMR-0100 | 5.3 MP, 2/3", USB3 | 2592 px x 2056 px | 60 fps | USB3.0 | $1,895.00 | View |
