Area scan cameras

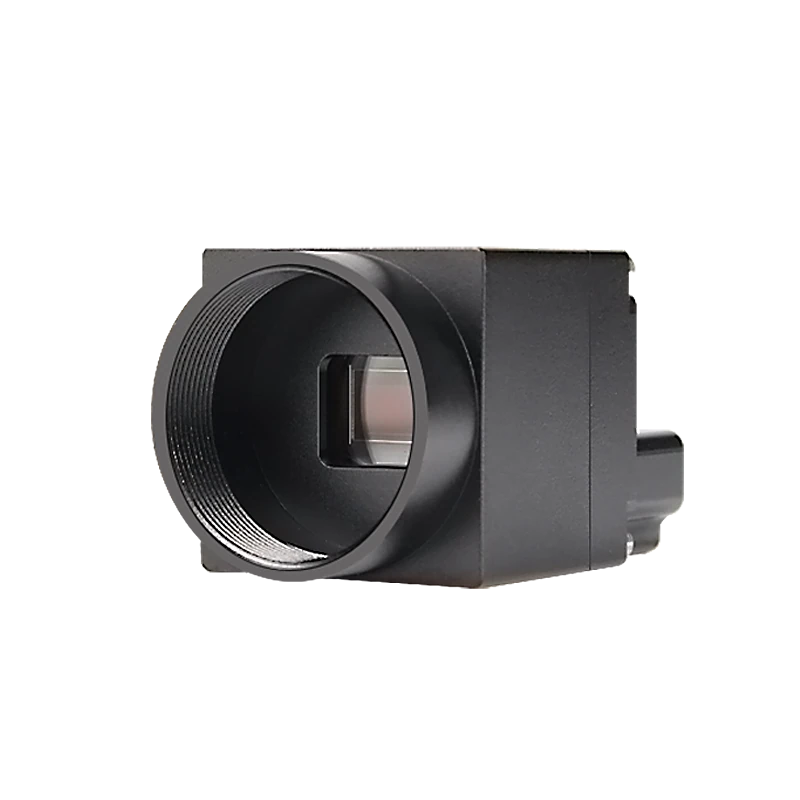

USB2.0 area scan camera (LS-CMR-S35)
- 4 models
- from $209.00
- Series LS-CMR-S35
The USB2.0 area scan camera (LS-CMR-S35) is a range of 4 area scan cameras from LumaSpec Vision, from $209.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1.3 MP, USB 2.0, Color/Mono, 1.3 MP, USB 2.0, Mono, 5.0 MP, USB 2.0, Color, 5.0 MP, USB 2.0, Color/Mono
- Interface
- USB 2.0
- Resolution
- Up to 3 MP, 5 MP
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/2"
Features
- Support a single PC multiple cameras at the same time stable work.
- Stable and reliable,suitable for vibration applications.
- Supports Windows XP SP3 and above,as well as Linux 32-bit/64-bit operating systems.
- Dimensions:29mm×29mm×29mm.
All 4 models in the USB2.0 area scan camera (LS-CMR-S35)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CMR-0466 | 5.0 MP, USB 2.0, Color | 2592*1944 | 7.9FPS | 2.2 μm | $209.00 | View |
| LS-CMR-0467 | 5.0 MP, USB 2.0, Color/Mono | 2592*1944 | 7.9FPS | 2.2 μm | $209.00 | View |
| LS-CMR-0464 | 1.3 MP, USB 2.0, Color/Mono | 1280*1024 | 30FPS | 4.0 μm | $299.00 | View |
| LS-CMR-0465 | 1.3 MP, USB 2.0, Mono | 1280*1024 | 30FPS | 4.8 μm | $299.00 | View |
