Area scan cameras

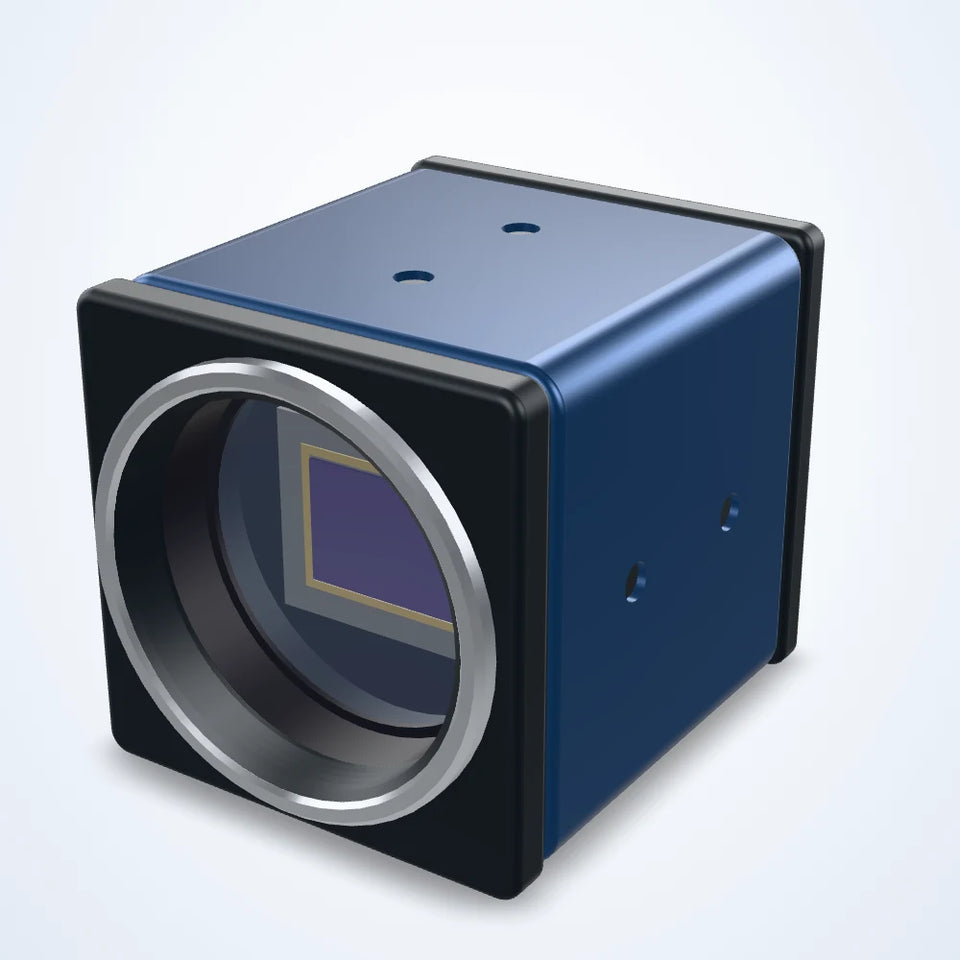

SWIR area scan cameras, USB (LS-CMR-S40)
- 21 models
- from $7,800.00
- Series LS-CMR-S40
The SWIR area scan cameras, USB (LS-CMR-S40) is a range of 21 area scan cameras from LumaSpec Vision, from $7,800.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.3 MP, 1/4", USB, 0.3 MP, 1/4", USB3, 0.3 MP, 3/4", USB, 0.3 MP, 3/4", USB3, 0.3 MP, USB, 0.3 MP, USB3, 1.3 MP, 1.5", USB3, 1.3 MP, 1/2", USB3, 3.1 MP, 1/1.8", USB3, 3.1 MP, USB3, 5.2 MP, 1/1.4", USB3, 5.2 MP, USB3
- Interface
- USB3, USB
- Resolution
- Up to 3 MP, 5 MP
- Shutter
- Global
- Lens mount
- M42, C-mount
- Spectrum
- SWIR
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 4/3" - APS-C
Features
- Global shutter: moving parts are imaged without skew
- Thermo-electric cooling for low dark noise
All 21 models in the SWIR area scan cameras, USB (LS-CMR-S40)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CMR-0526 | 0.3 MP, 1/4", USB | 640 x 512 | 428.1 fps | USB 3.0 | $7,800.00 | View |
| LS-CMR-0529 | 0.3 MP, USB | 640 × 512 | 400 fps | USB | $8,750.00 | View |
| LS-CMR-0532 | 0.3 MP, 1/4", USB3 | 640x512 | 400 fps | USB3.0 | $8,880.00 | View |
| LS-CMR-0530 | 0.3 MP, USB | 640 × 512 | 400 fps | USB | $8,950.00 | View |
| LS-CMR-0535 | 0.3 MP, USB3 | 640 x 512 | 428.1 fps | USB3 | $9,630.00 | View |
| LS-CMR-0537 | 0.3 MP, USB3 | 640 x 512 | 724 fps | USB3 | $9,630.00 | View |
| LS-CMR-0533 | 0.3 MP, USB3 | 640 x 512 | 400 fps | USB3 | $10,200.00quote | View |
| LS-CMR-0538 | 1.3 MP, 1/2", USB3 | 1280 x 1024 | 200 fps | USB3 | $15,000.00quote | View |
| LS-CMR-0541 | 1.3 MP, 1/2", USB3 | 1280 x 1024 | 223 fps | USB3 | $15,000.00quote | View |
| LS-CMR-0536 | 0.3 MP, 3/4", USB3 | 640x512 | 724 fps | USB3.0 | $16,280.00quote | View |
| LS-CMR-0542 | 3.1 MP, USB3 | 2048 × 1536 | 93 fps | USB3.0 | $23,145.00quote | View |
| LS-CMR-0543 | 3.1 MP, USB3 | 2048 × 1536 | 93 fps | USB3.0 | $23,145.00quote | View |
| LS-CMR-0544 | 3.1 MP, 1/1.8", USB3 | 2048x1536 | 93 fps | USB3.0 | $23,145.00quote | View |
| LS-CMR-0545 | 5.2 MP, USB3 | 2560 × 2048 | 61.9 fps | USB3 | $25,140.00quote | View |
| LS-CMR-0547 | 5.2 MP, USB3 | 2560 × 2048 | 61.9 fps | USB 3.0 | $25,894.00quote | View |
| LS-CMR-0548 | 5.2 MP, USB3 | 2560 × 2048 | 61.9 fps | USB 3.0 | $25,894.00quote | View |
| LS-CMR-0546 | 5.2 MP, 1/1.4", USB3 | 2560x2048 | 8-Bit:61.9@2560x2048 / 135.7@1280x1024 12-Bit:35 | USB3.0 | $26,200.00quote | View |
| LS-CMR-0549 | 5.2 MP, USB3 | 2560 × 2048 | 61.9 fps | USB 3.0 | $26,994.00quote | View |
| LS-CMR-0539 | 1.3 MP, 1.5", USB3 | 1280x1024 | 200 fps | USB3.0 | $37,450.00quote | View |
| LS-CMR-0540 | 1.3 MP, 1.5", USB3 | 1280 x 1024 | 200 fps | USB3 | $43,000.00quote | View |
| LS-CMR-0527 | 0.3 MP, 3/4", USB | 640x512 | 270 fps | USB3.0 | $48,000.00quote | View |
