  • 640 x 512 USB SWIR camera, IMX991, 400 fps, TEC Cooling

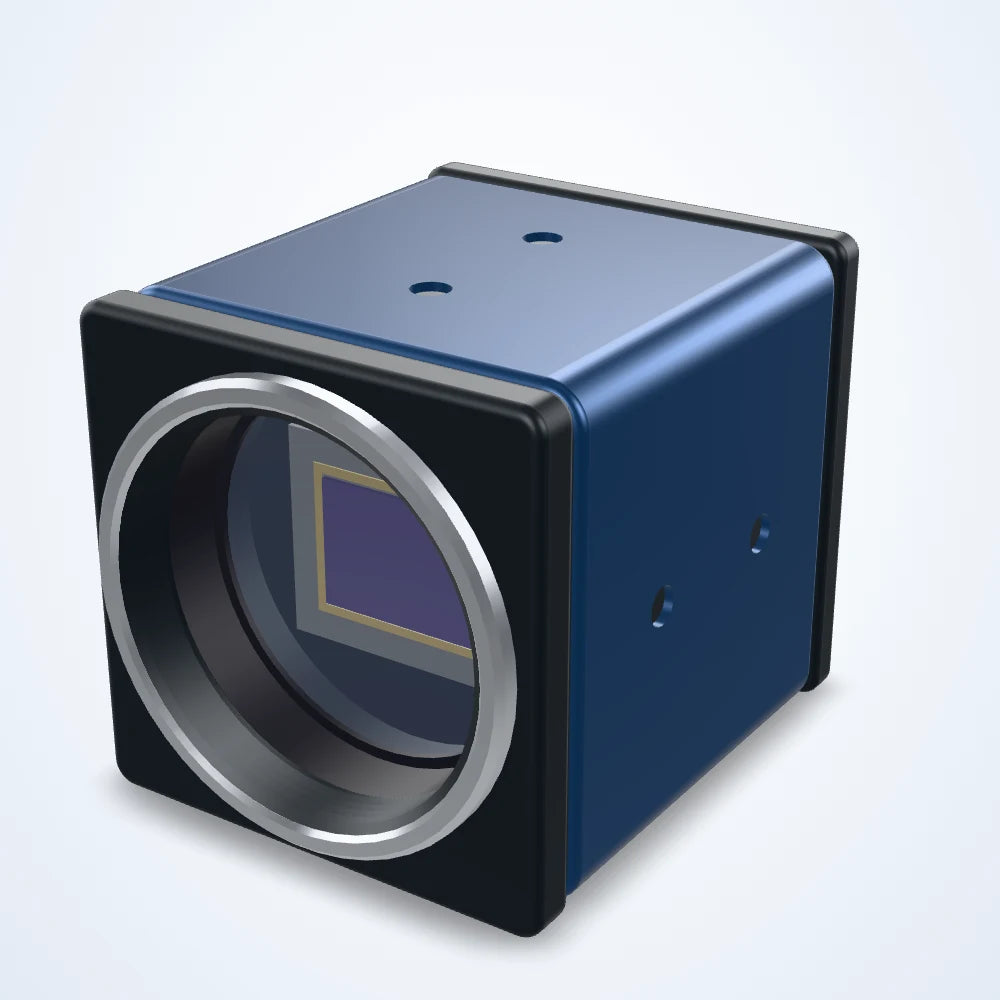

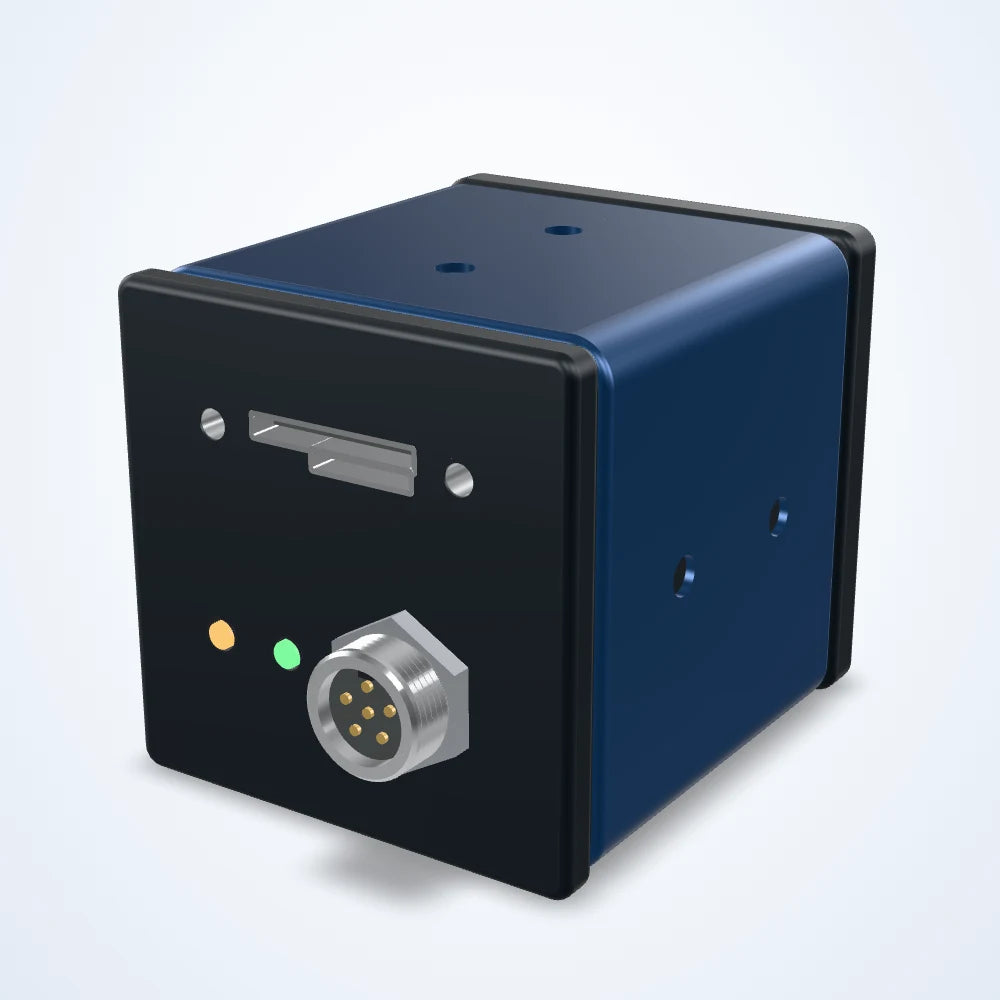

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

640 x 512 USB SWIR camera, IMX991, 400 fps, TEC Cooling (LS-CMR-0530)

Model LS-CMR-0530

  • Resolution640 × 512
  • SensorInGaAs
  • InterfaceUSB
  • Speed400 fps
  • Lens mountC-mount
  • Pixel size5 μm
$8,950.00

Ships in 3-4 weeks

3.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

640 x 512 USB SWIR camera, IMX991, 400 fps, TEC Cooling (LS-CMR-0530)LS-CMR-0530

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.3 MP SWIR camera for inspection, measurement and guidance on the production line. IMX991 sensor; 640 x 512 pixels; up to 400 frames per second; USB interface.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0530
Spectral Band0.4-1.8um

Sensor and imaging

Resolution640 × 512
Max. frame rate400 fps
Sensor modelIMX991
Sensor typeInGaAs
Pixel size5 μm
Sensor size1/4"
Dynamic range59.7 dB
Exposure time15 μs-60s
Pixel bit depth8/12 bit

Interfaces and I/O

Data interfaceUSB
Digital I/O1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O

Environment and compliance

Operating temperature-20 °C ~ +60 °C(Operating)-40 °C ~ +85 °C(Storage)
Humidity20%~80% (non-condensing)

Electrical

Power supplyUSB3 / 12 V

Mechanical

Weight<390 g

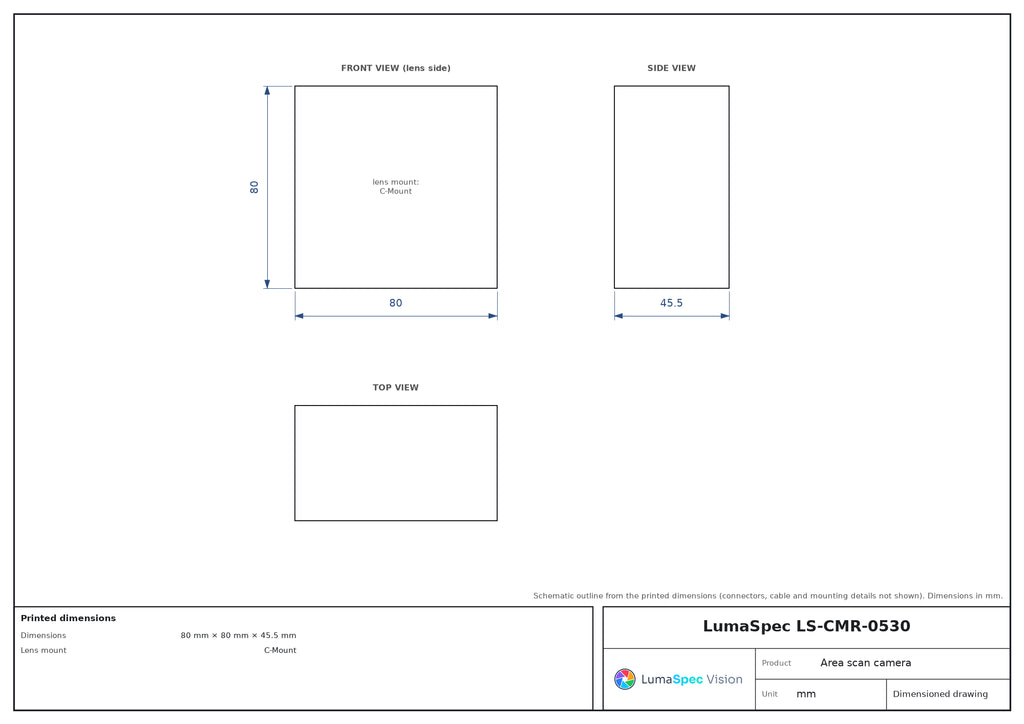

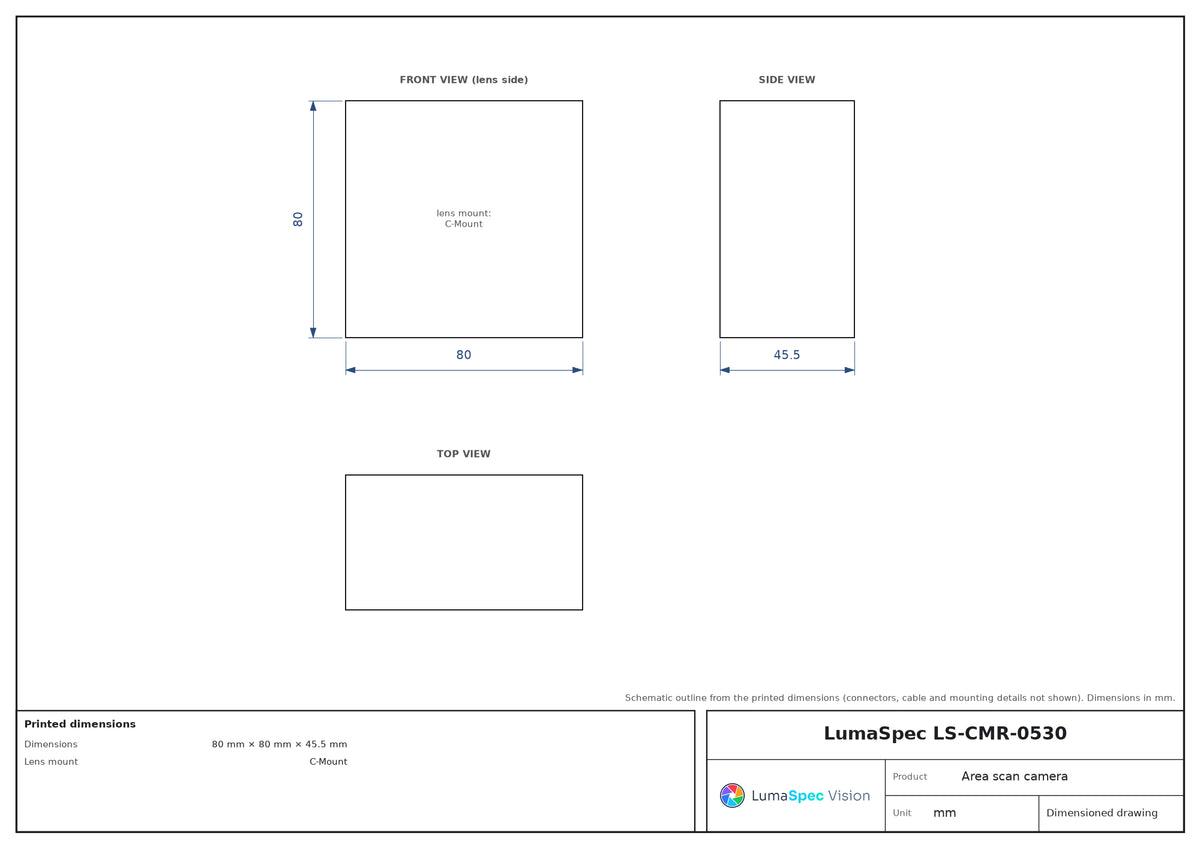

Dimensions80 mm × 80 mm × 45.5 mm
Lens mountC-Mount
