  • 2560 x 2048 USB3 SWIR camera, IMX992, 1/1.4", 61.9 fps

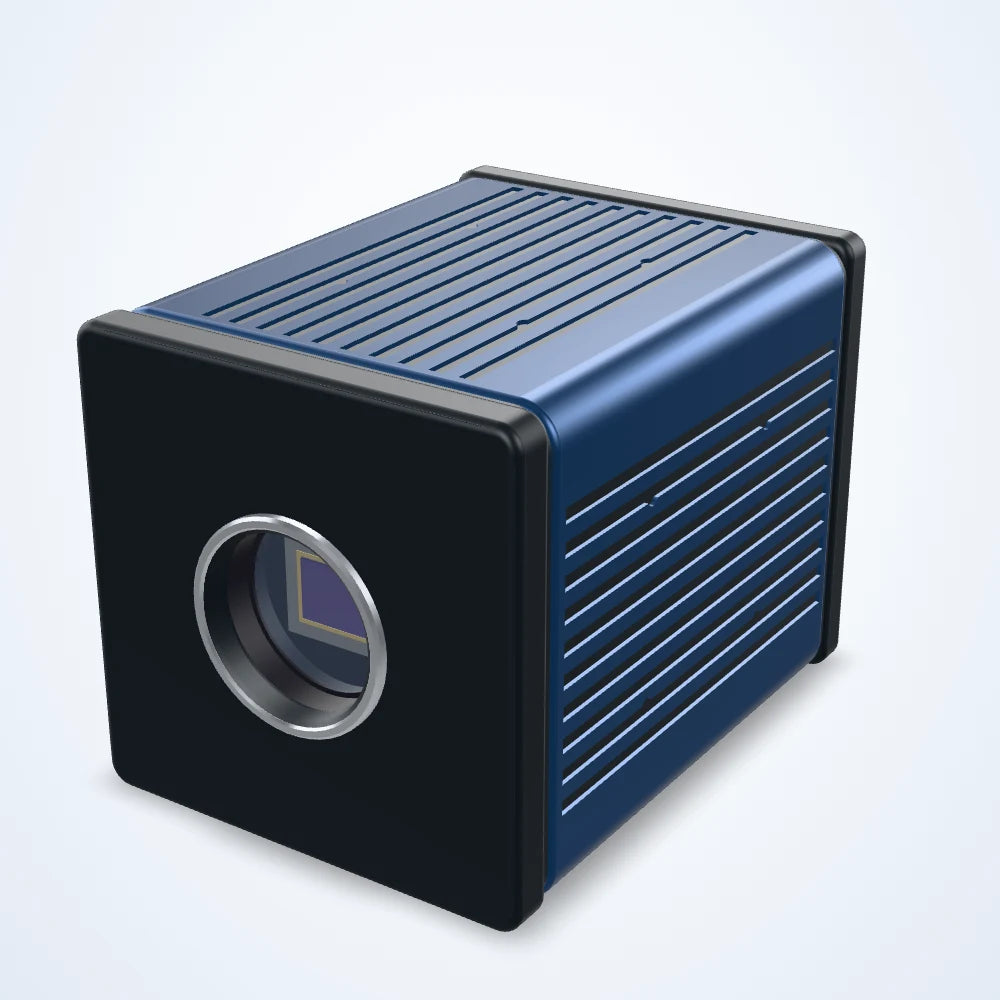

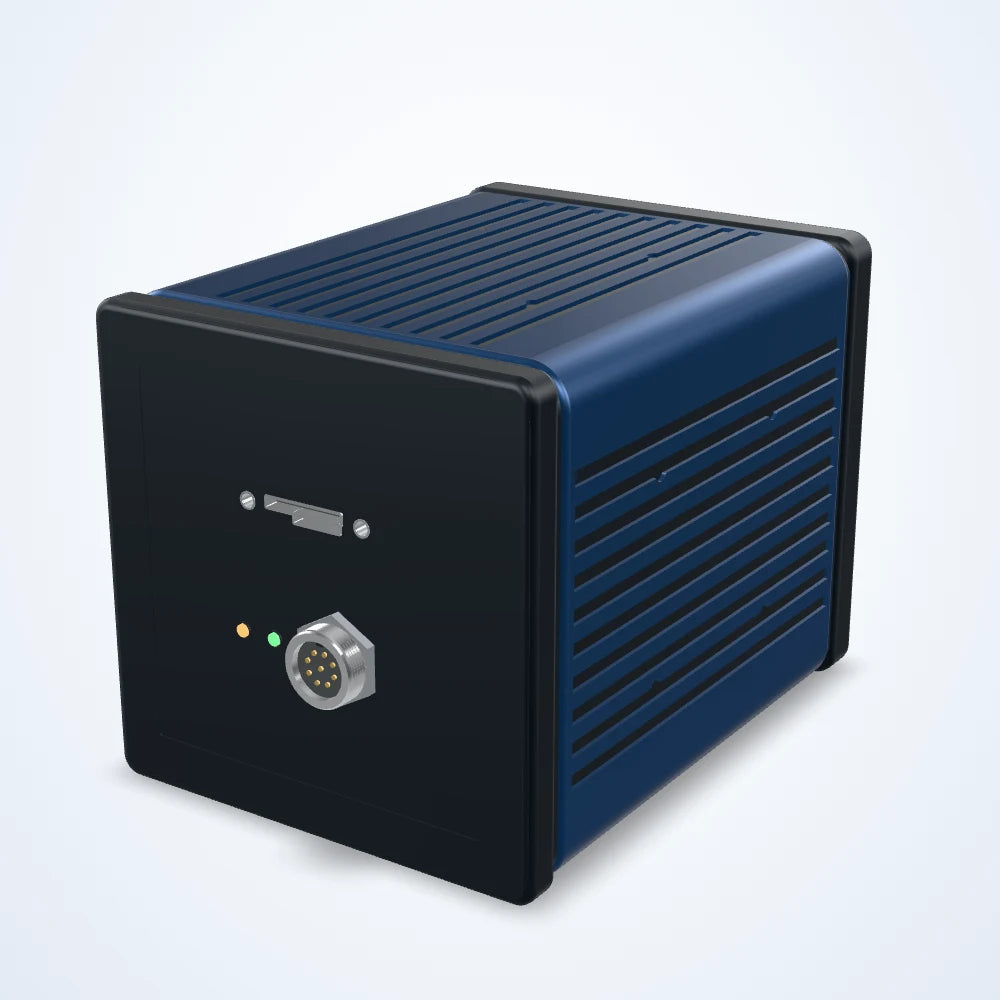

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

2560 x 2048 USB3 SWIR camera, IMX992, 1/1.4", 61.9 fps (LS-CMR-0546)

Model LS-CMR-0546

  • Resolution2560x2048
  • Sensor1/1.4"
  • InterfaceUSB3.0
  • Lens mountC-mount
  • Pixel size3.45 μm
$26,200.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

1.5 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

2560 x 2048 USB3 SWIR camera, IMX992, 1/1.4", 61.9 fps (LS-CMR-0546)LS-CMR-0546

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

5.2 MP SWIR camera for inspection, measurement and guidance on the production line. IMX992 sensor (1/1.4"); 2560 x 2048 pixels of 3.45 μm; up to 61.9 frames per second; USB3 interface; C-mount lens mount; spectral range 400-1800 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0546
Spectral range0.4 μm - 1.8 μm

Sensor and imaging

Sensor modelIMX992
Resolution2560x2048
Sensor typeSony IMX992-AABA-C Buit-in TEC/ Sony IMX992-AABJ-C External TEC
Pixel size3.45 μm
Sensor size1/1.4"
Max. frame rate8-Bit:61.9@2560x2048 / 135.7@1280x1024 12-Bit:35.5@2560x2048 / 135.7@1280x1024
Conversion Gain10.3e/ADU(HCG) 17.29e/ADU(LCG)
Exposure time15 μs-60s

Interfaces and I/O

Data interfaceUSB3.0

Electrical

Power supplyDC 12 V

Mechanical

Lens mountC-Mount

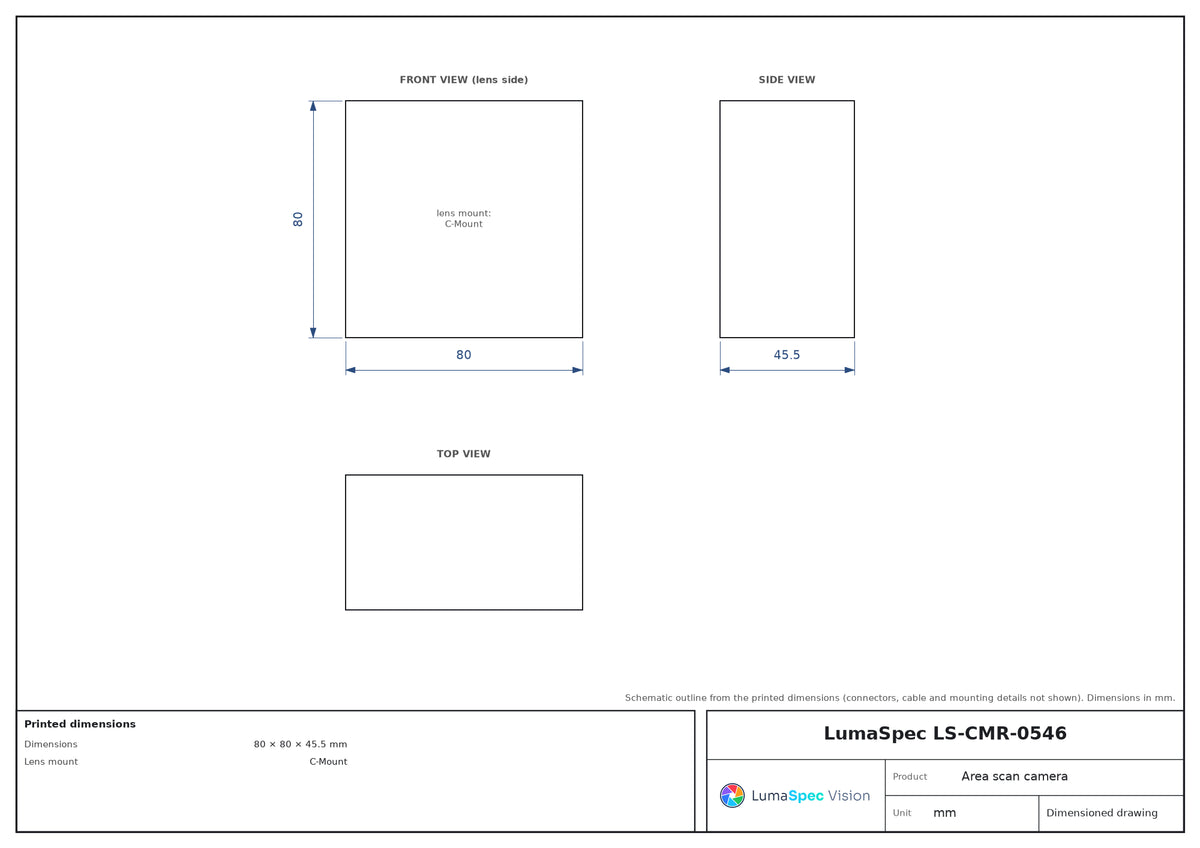

Dimensions80 × 80 × 45.5 mm (<300g)
Shipping weight1.50 kg
