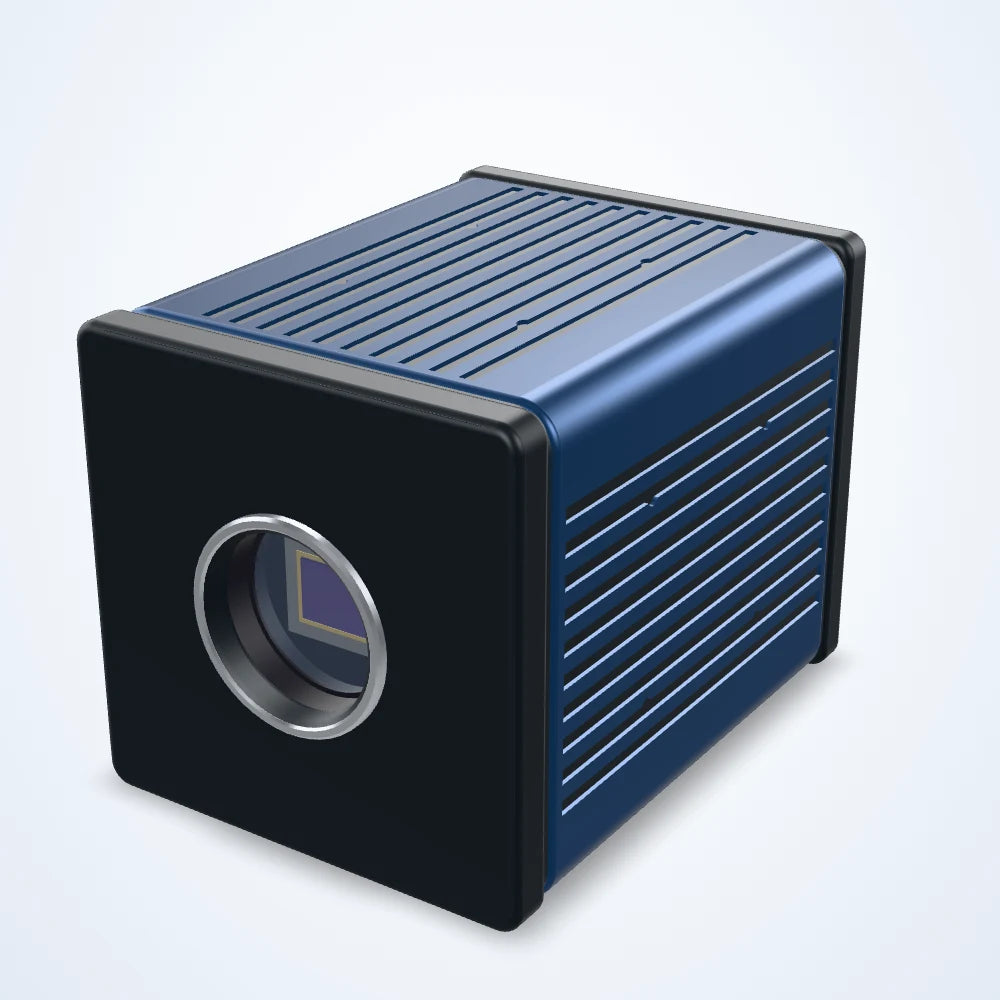

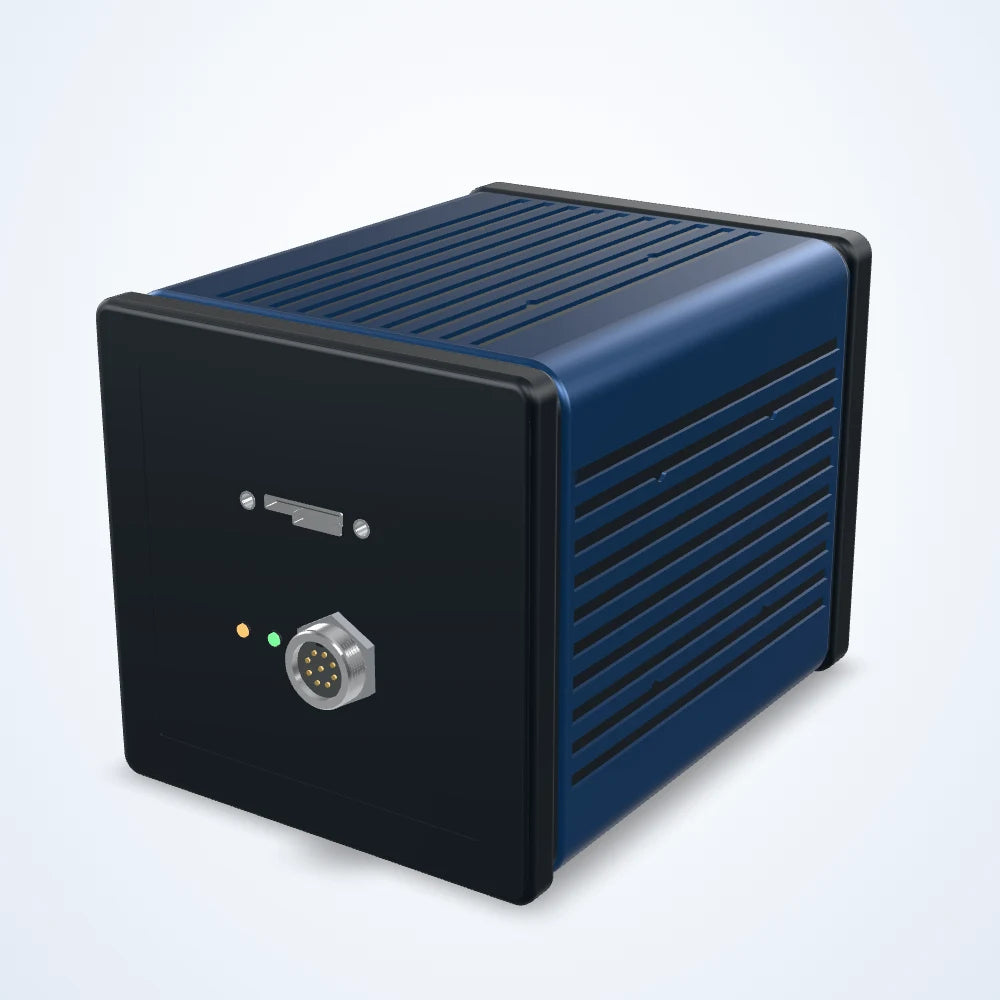

USB3 SWIR camera IMX991 (series view)
  • USB3 SWIR camera IMX991 (series view)
  • USB3 SWIR camera IMX991 (series view)
  • 640 x 512 USB3 SWIR camera, IMX991, 1/4", 400 fps, Built-in TEC

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

640 x 512 USB3 SWIR camera, IMX991, 1/4", 400 fps, Built-in TEC (LS-CMR-0532)

Model LS-CMR-0532

  • Resolution640x512
  • Sensor1/4"
  • InterfaceUSB3.0
  • Speed400 fps
  • Lens mountC-mount
  • Pixel size5 μm
$8,880.00

Ships in 3-4 weeks

3.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

640 x 512 USB3 SWIR camera, IMX991, 1/4", 400 fps, Built-in TEC (LS-CMR-0532)LS-CMR-0532

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.3 MP SWIR camera for inspection, measurement and guidance on the production line. IMX991 sensor (1/4"); 640 x 512 pixels of 5 μm; up to 400 frames per second; USB3 interface; C-mount lens mount; spectral range 400-1800 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0532
Spectral range400-1800 nm
Sensitivity121mV
Scan TypeArea Scan

Sensor and imaging

Sensor modelIMX991
Max. frame rate400 fps
Resolution640x512
Sensor typeSony IMX991-AABA-C Buit-in TEC /AABJ-C External TEC
Pixel size5 μm
Sensor size1/4"
Exposure time15 μs-60s

Interfaces and I/O

Data interfaceUSB3.0

Electrical

Power supplyDC 12 V
Power consumption12 V @<2.1 W(Without cooling) <25 W(Cooling)

Mechanical

Lens mountC-Mount

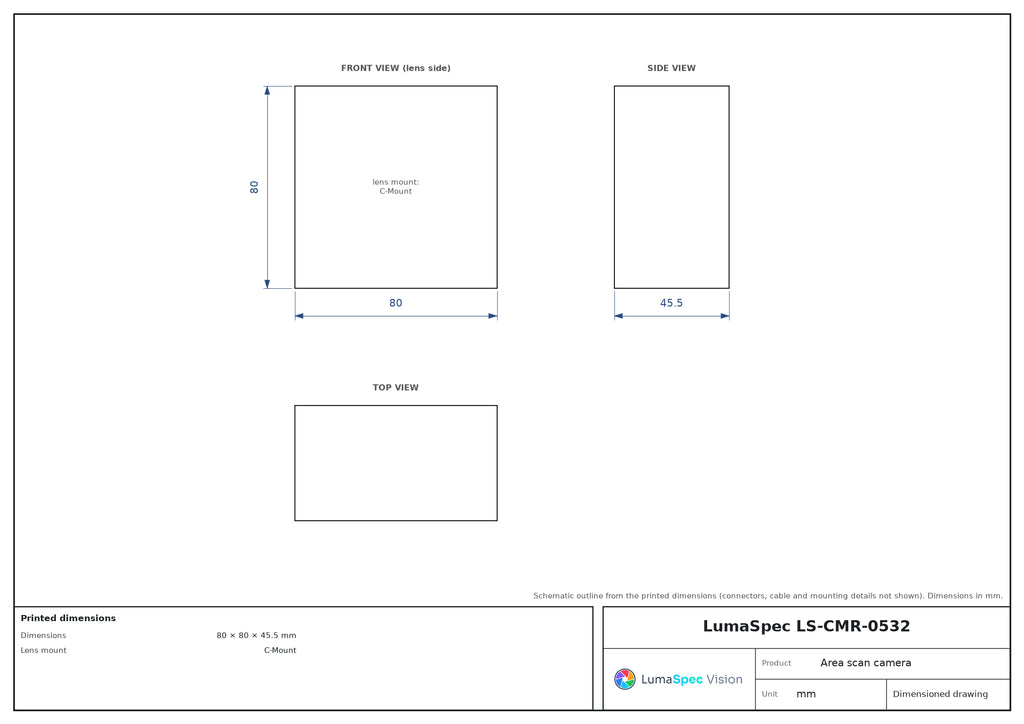

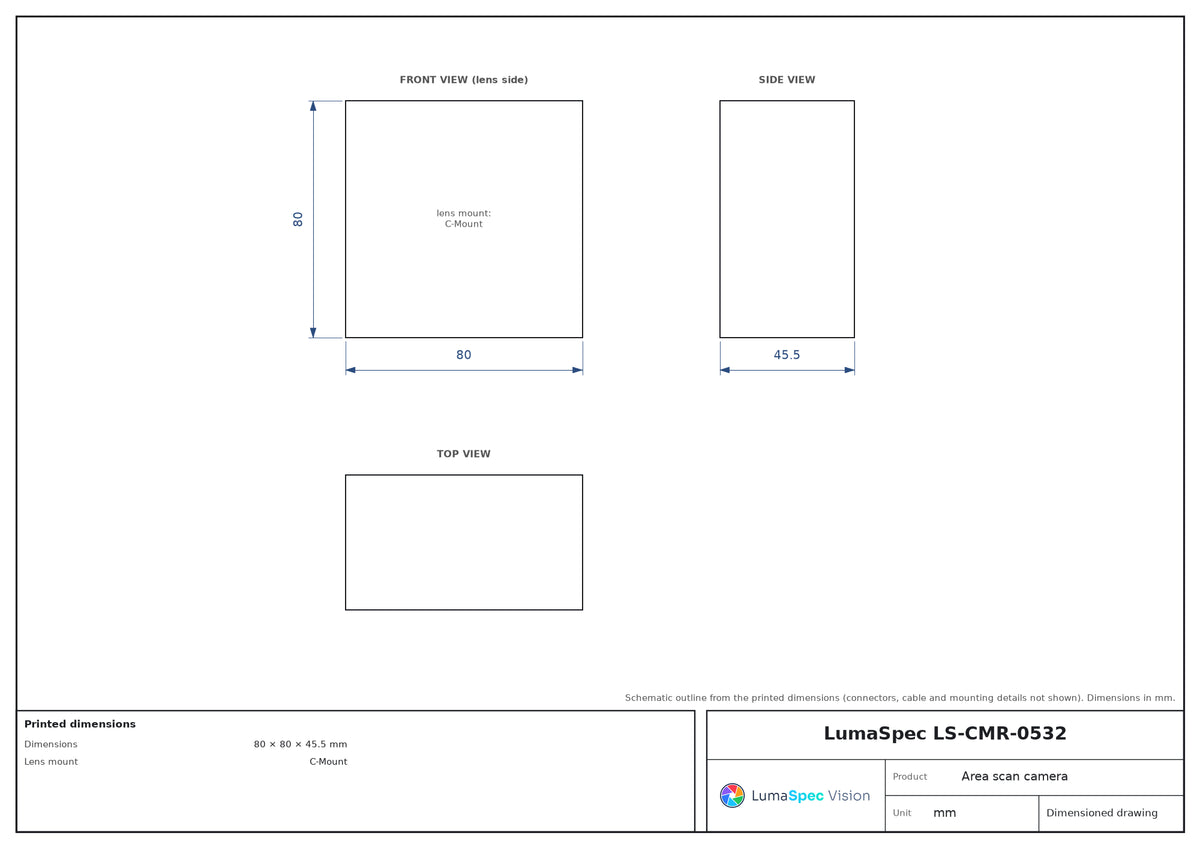

Dimensions80 × 80 × 45.5 mm (<390g)
Shipping weight3.00 kg

Other models in the SWIR area scan cameras, USB3 (LS-CMR-S40) series

See all 21 models
ModelSize / key dataPriceAvailabilityLink
LS-CMR-0526 0.3 MP, 1/4", USB $7,800.00 Ships in 3-4 weeks View
LS-CMR-0529 0.3 MP, USB $8,750.00 Ships in 3-4 weeks View
LS-CMR-0530 0.3 MP, USB $8,950.00 Ships in 3-4 weeks View
LS-CMR-0535 0.3 MP, USB3 $9,630.00 Ships in 3-4 weeks View
LS-CMR-0537 0.3 MP, USB3 $9,630.00 Ships in 3-4 weeks View
LS-CMR-0533 0.3 MP, USB3 $10,200.00 Quote Ships in 3-4 weeks View
LS-CMR-0538 1.3 MP, 1/2", USB3 $15,000.00 Quote Ships in 3-4 weeks View
LS-CMR-0541 1.3 MP, 1/2", USB3 $15,000.00 Quote Ships in 3-4 weeks View
LS-CMR-0536 0.3 MP, 3/4", USB3 $16,280.00 Quote Ships in 3-4 weeks View
LS-CMR-0542 3.1 MP, USB3 $23,145.00 Quote Ships in 3-4 weeks View
LS-CMR-0543 3.1 MP, USB3 $23,145.00 Quote Ships in 3-4 weeks View
LS-CMR-0544 3.1 MP, 1/1.8", USB3 $23,145.00 Quote Ships in 3-4 weeks View
LS-CMR-0545 5.2 MP, USB3 $25,140.00 Quote Ships in 3-4 weeks View
LS-CMR-0547 5.2 MP, USB3 $25,894.00 Quote Ships in 3-4 weeks View
LS-CMR-0548 5.2 MP, USB3 $25,894.00 Quote Ships in 3-4 weeks View
LS-CMR-0546 5.2 MP, 1/1.4", USB3 $26,200.00 Quote Ships in 3-4 weeks View
LS-CMR-0549 5.2 MP, USB3 $26,994.00 Quote Ships in 3-4 weeks View
LS-CMR-0539 1.3 MP, 1.5", USB3 $37,450.00 Quote Ships in 3-4 weeks View
LS-CMR-0540 1.3 MP, 1.5", USB3 $43,000.00 Quote Ships in 3-4 weeks View
LS-CMR-0527 0.3 MP, 3/4", USB $48,000.00 Quote Ships in 3-4 weeks View
