Area scan cameras
2048 x 1536 USB3 SWIR camera, IMX993, 1/1.8", 93 fps, TEC Cooling (LS-CMR-0544)
Model LS-CMR-0544
- Resolution2048x1536
- Sensor1/1.8"
- InterfaceUSB3.0
- Speed93 fps
- Lens mountC-mount
- Pixel size3.45 μm x 3.45 μm
$23,145.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 3-4 weeks
2.0 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
3.1 MP SWIR camera for inspection, measurement and guidance on the production line. IMX993 sensor (1/1.8"); 2048 x 1536 pixels of 3.45 μm; up to 93 frames per second; USB3 interface; C-mount lens mount; spectral range 400-1700 nm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0544 |
|---|---|
| Cooling | A: TEC Cooling J: External Cooling |
| Spectral range | 400-1700 nm |
| Spectral Band | 0.4-1.7um |
Sensor and imaging
| Sensor model | IMX993 |
|---|---|
| Resolution | 2048x1536 |
| Max. frame rate | 93 fps |
| Pixel size | 3.45 μm x 3.45 μm |
| Sensor size | 1/1.8" |
| Sensor type | InGaAs |
| Dynamic range | 51.36 dB (HCG); 51.47 dB (LCG) |
| Exposure time | 15 μs-60s |
| Pixel bit depth | 8/12 bit |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| Digital I/O | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O |
Environment and compliance
| Operating temperature | -20 °C ~ +60 °C(Operating)-40 °C ~ +85 °C(Storage) |
|---|---|
| Humidity | 20%~80% (non-condensing) |
Electrical
| Power supply | USB3 / 12 V |
|---|
Mechanical
| Lens mount | C-mount |
|---|---|
| Weight | <390 g |

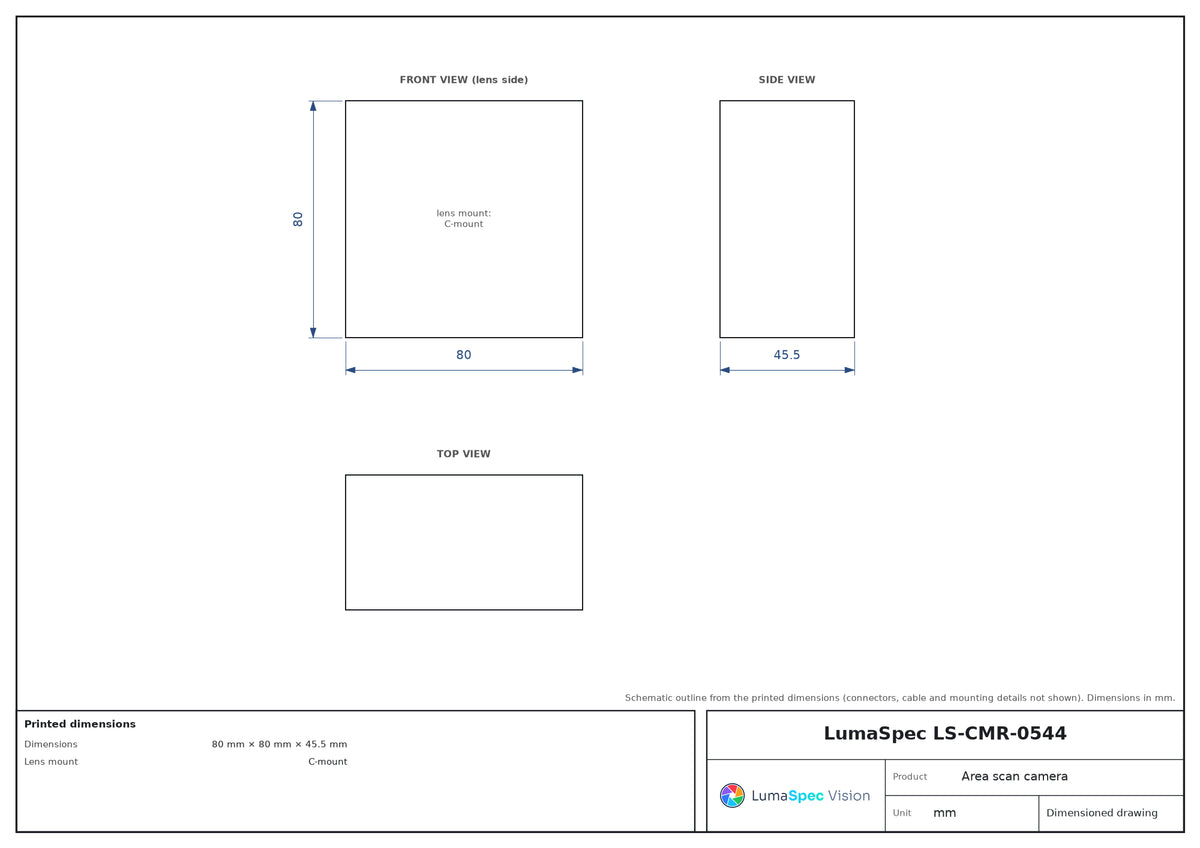

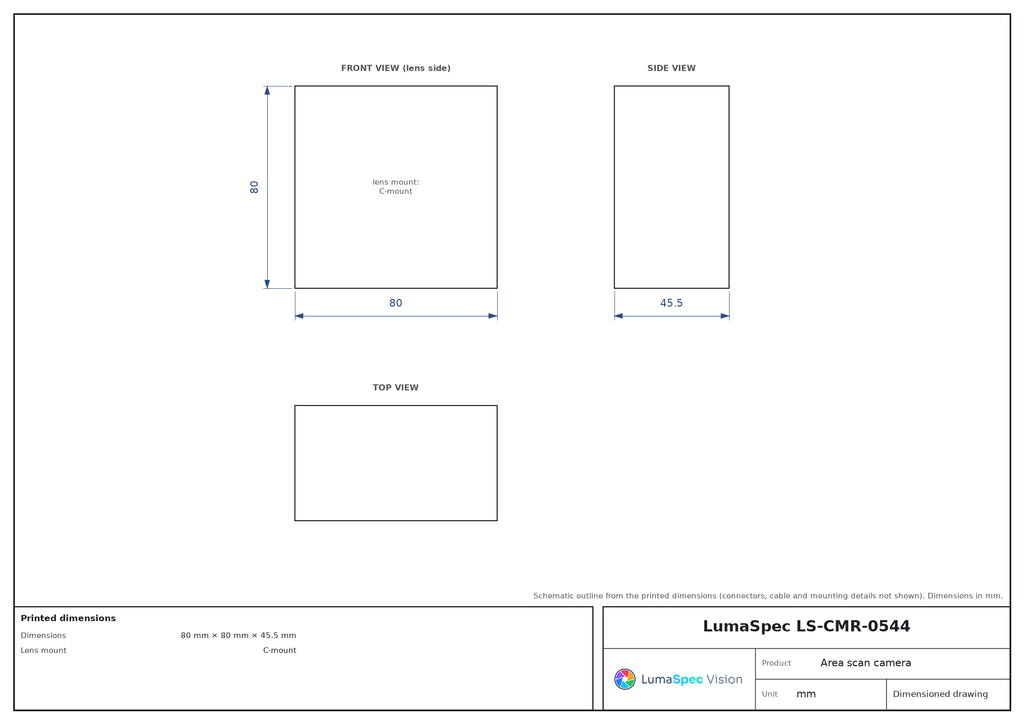

| Dimensions | 80 mm × 80 mm × 45.5 mm |
