640 x 512 USB SWIR camera, 3/4", 270 fps
  • 640 x 512 USB SWIR camera, 3/4", 270 fps
  • 640 x 512 USB SWIR camera, 3/4", 270 fps
  • 640 x 512 USB SWIR camera, 3/4", 270 fps

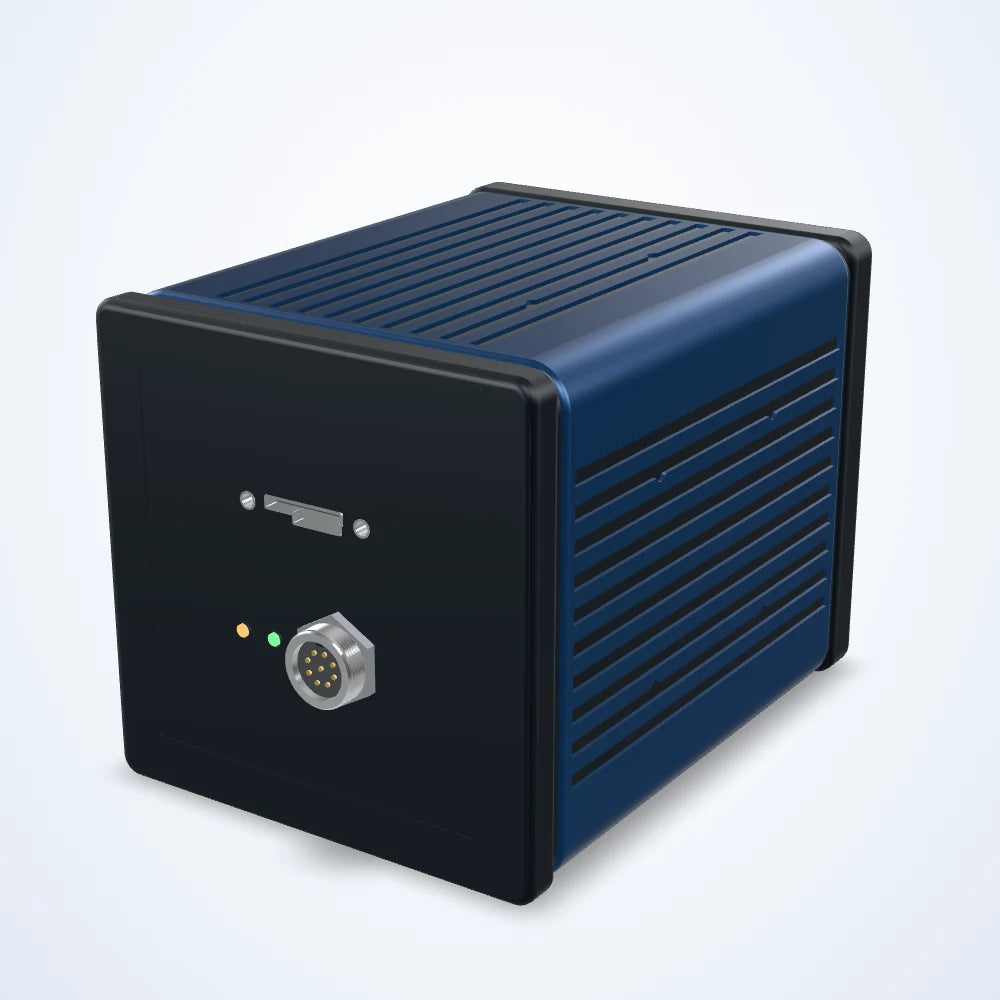

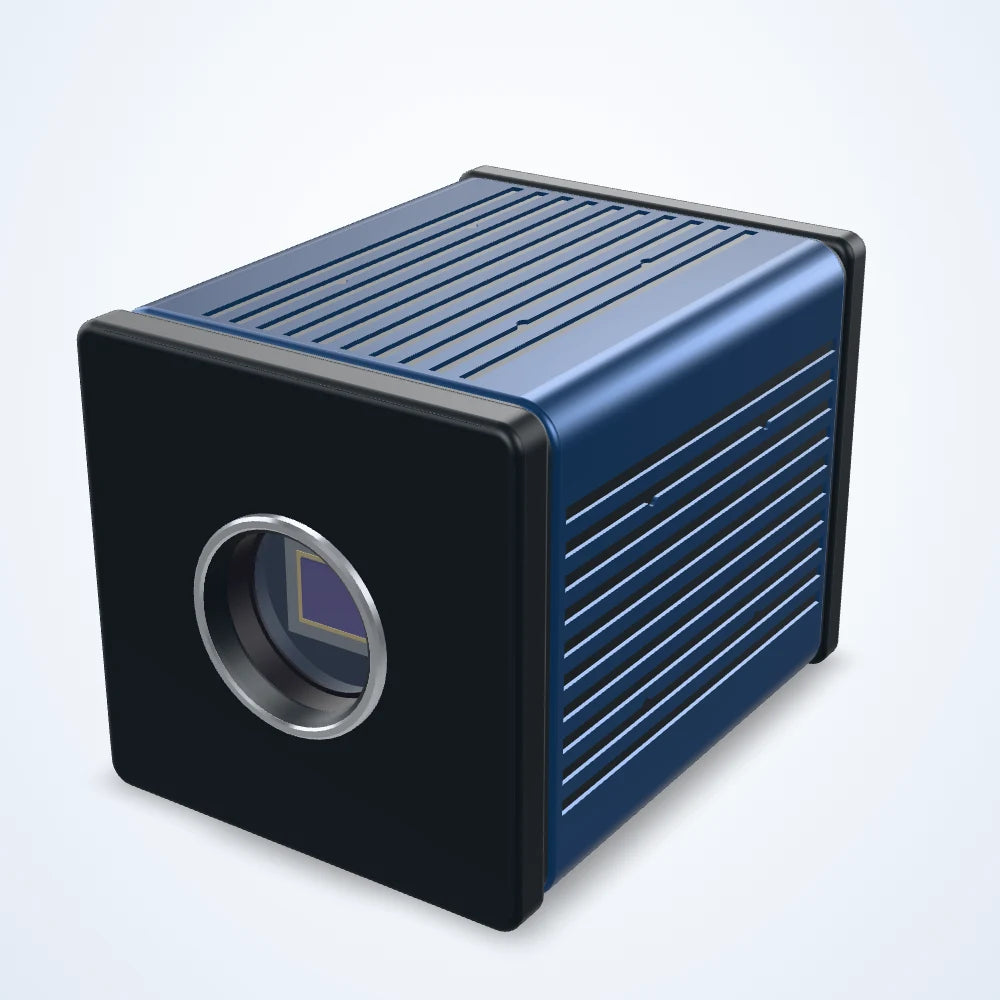

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

640 x 512 USB SWIR camera, 3/4", 270 fps (LS-CMR-0527)

Model LS-CMR-0527

  • Resolution640x512
  • SensorInGaAs
  • InterfaceUSB3.0
  • Speed270 fps
  • Lens mountC-mount
  • Pixel size15 μm
$48,000.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

0.78 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

640 x 512 USB SWIR camera, 3/4", 270 fps (LS-CMR-0527)LS-CMR-0527

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.3 MP SWIR camera for inspection, measurement and guidance on the production line. InGaAs sensor (3/4"); 640 x 512 pixels of 15 μm; up to 270 frames per second; USB interface; C-mount lens mount; spectral range 1200-2200 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0527
Spectral range1200-2200 nm
Quantum efficiency70%@ 1900 nm
Readout Noise< 50e
CoolingUp to 70° C below ambient

Sensor and imaging

Sensor typeInGaAs
Sensor size3/4"
Max. frame rate270 fps
Pixel size15 μm
Resolution640x512
Conversion Gain77.8e-/DN(LG), 6.6e-/ DN(MG), 2.0e-/DN (HG)
Exposure time16 μs~5s
Pixel formatMono 12 / Mono 14
Sensor model1200-2200 nm InGaAs
ShutterGlobal
Dynamic range71.4 dB
SNR60.8 dB
Pixel bit depthADC14-bit

Interfaces and I/O

Data interfaceUSB3.0
Digital I/O1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O

Light

Color TypeSWIR

Environment and compliance

Storage temperature-40~85 °C
Operating temperature-30~60 °C
Humidity20%–80%, non-condensing

Computing

Operating systemWindows, Linux

Electrical

Power supplyDC 12 V
Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run

Mechanical

Lens mountC-Mount

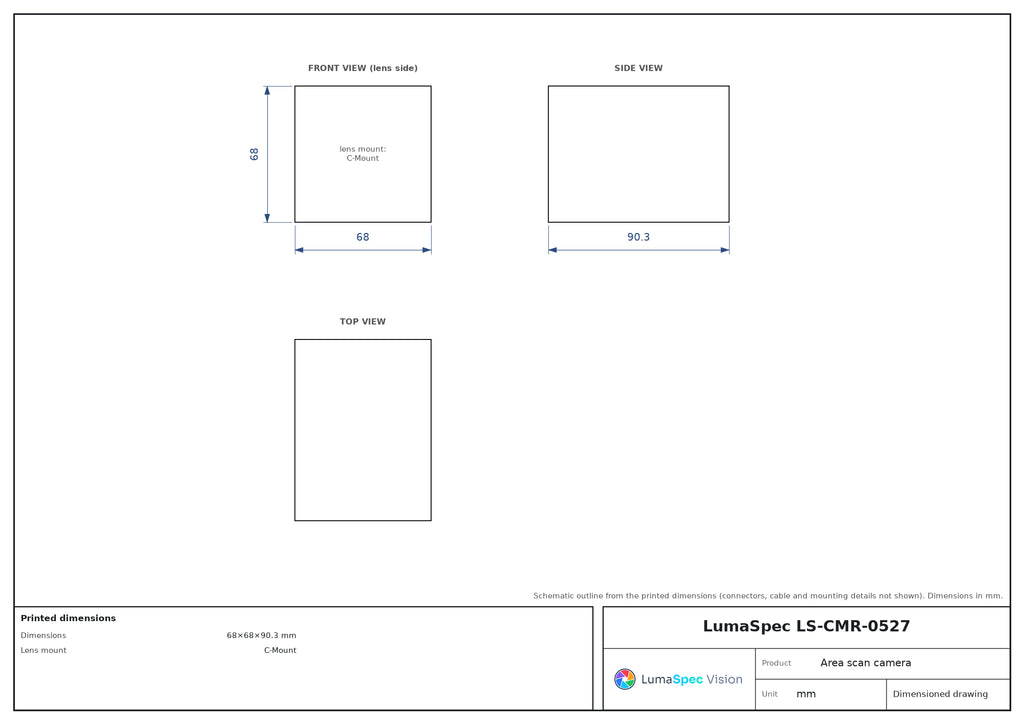

Dimensions68×68×90.3 mm (485g)
Weight485g
