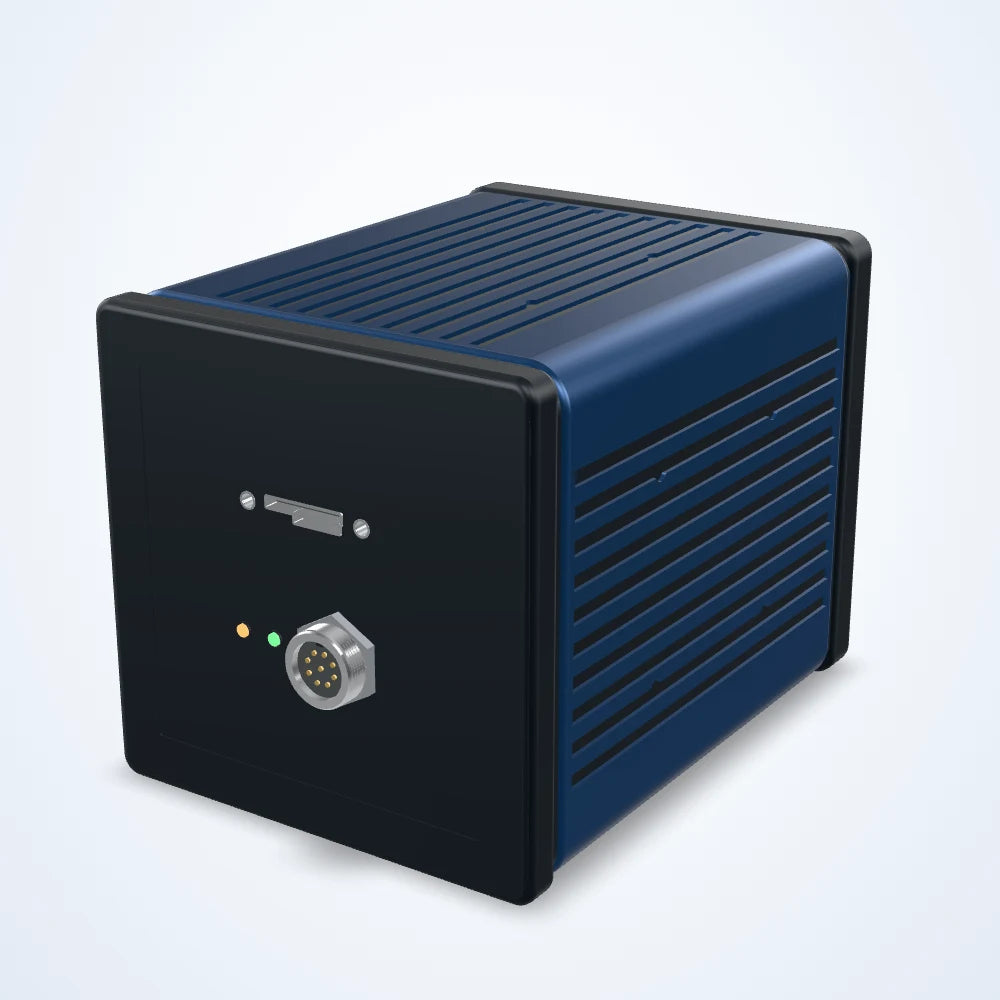

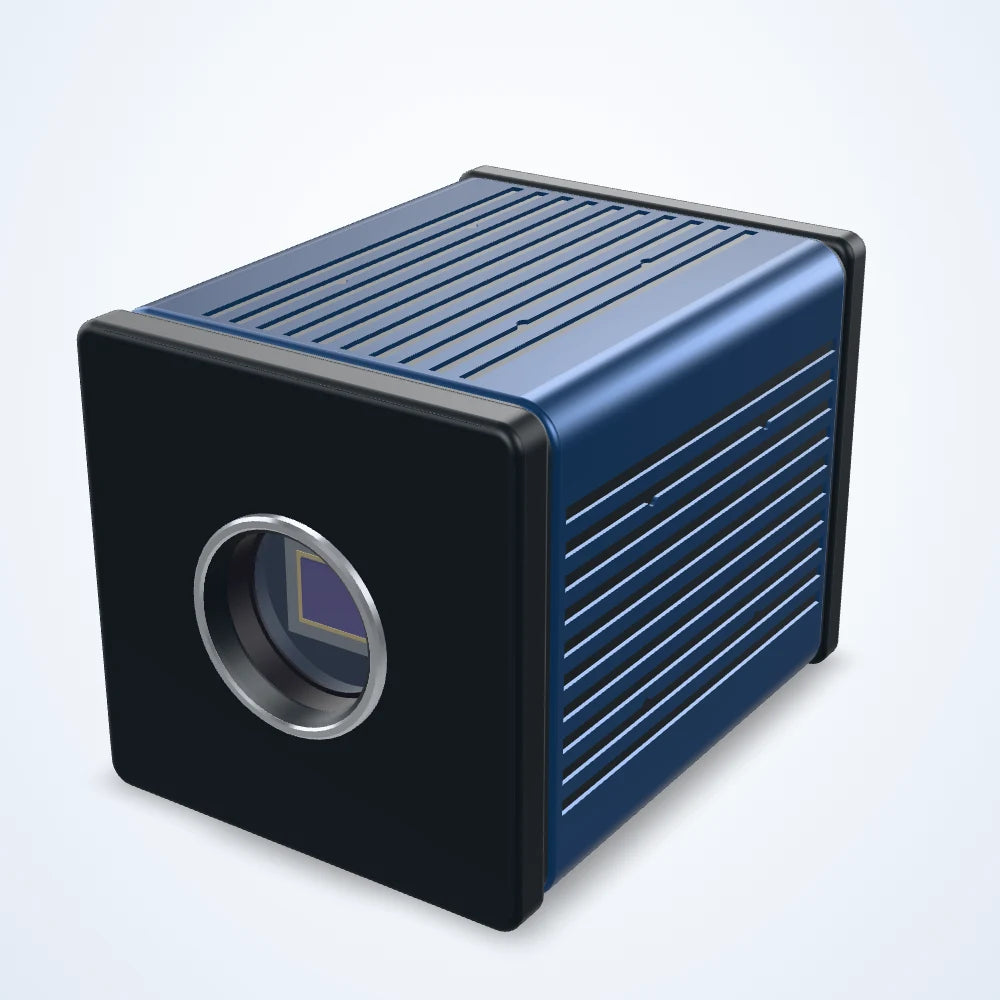

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
2560 x 2048 USB3 SWIR camera, IMX992, 61.9 fps (LS-CMR-0549)
Model LS-CMR-0549
- Resolution2560 × 2048
- SensorInGaAs
- InterfaceUSB 3.0
- Speed61.9 fps
- Lens mountC-mount
- Pixel size3.45 μm
$26,994.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 3-4 weeks
2.0 kg shipping weight
Not available in the United States. Available for delivery to other countries.
5.2 MP SWIR camera for inspection, measurement and guidance on the production line. IMX992 sensor; 2560 x 2048 pixels of 3.45 μm; up to 61.9 frames per second; USB3 interface.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0549 |
|---|---|
| Spectral Band | 0.4-1.8um |
Sensor and imaging
| Sensor model | IMX992 |
|---|---|
| Resolution | 2560 × 2048 |
| Max. frame rate | 61.9 fps |
| Pixel size | 3.45 μm |
| Sensor type | InGaAs |
| Sensor size | 1/1.4" |
| Dynamic range | 51.36 dB (HCG); 51.47 dB (LCG) |
| Exposure time | 15 μs-60s |
| Pixel bit depth | 8/12 bit |
Interfaces and I/O
| Data interface | USB 3.0 |
|---|---|
| Digital I/O | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O |
Environment and compliance
| Operating temperature | -20 °C ~ +60 °C(Operating)-40 °C ~ +85 °C(Storage) |
|---|---|
| Humidity | 20%~80% (non-condensing) |
Electrical
| Power supply | USB3 / 12 V |
|---|
Mechanical
| Weight | <390 g |
|---|---|

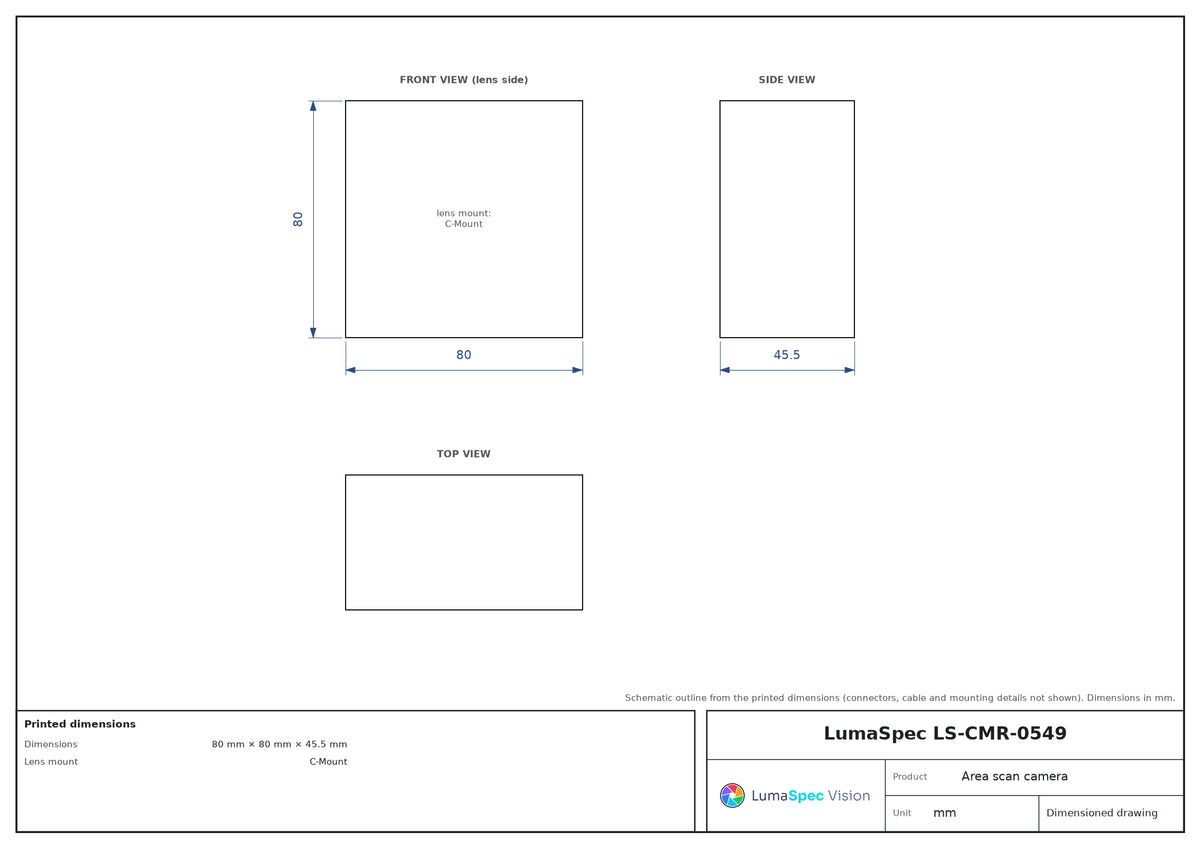

| Dimensions | 80 mm × 80 mm × 45.5 mm |
| Lens mount | C-Mount |
