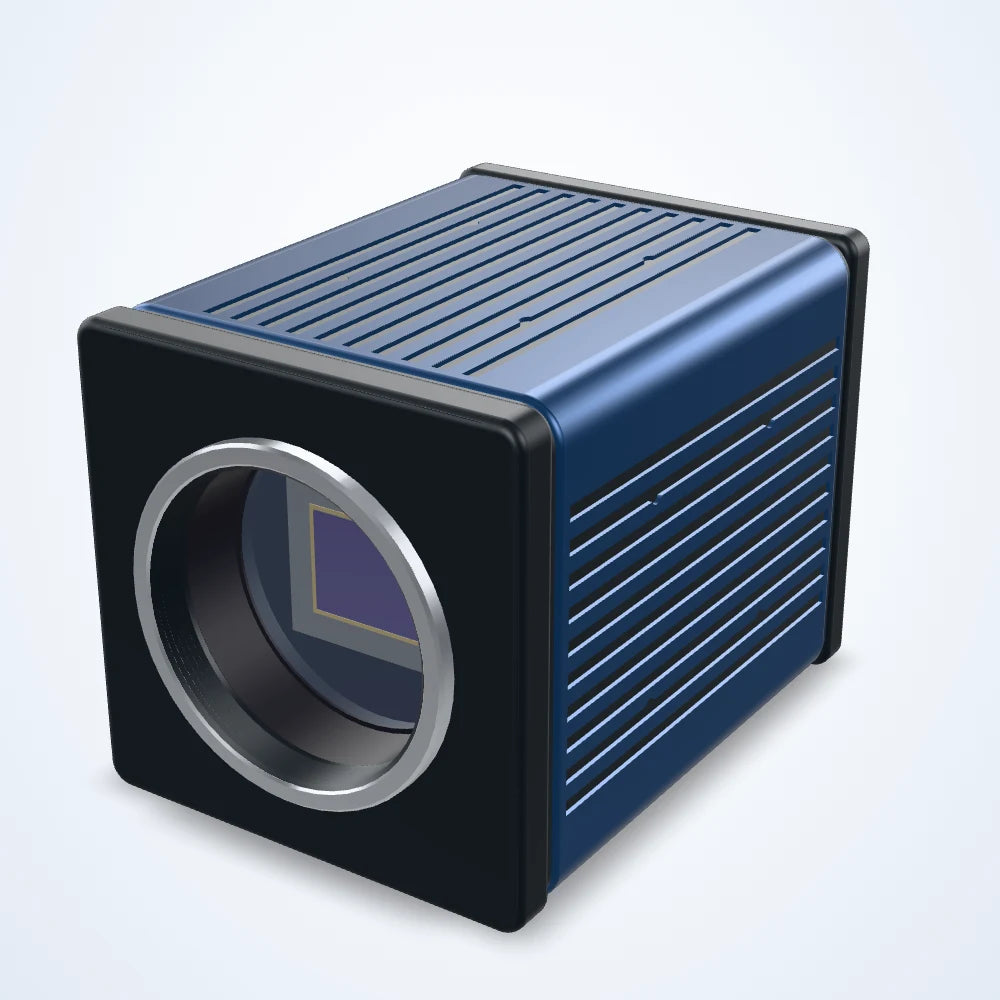

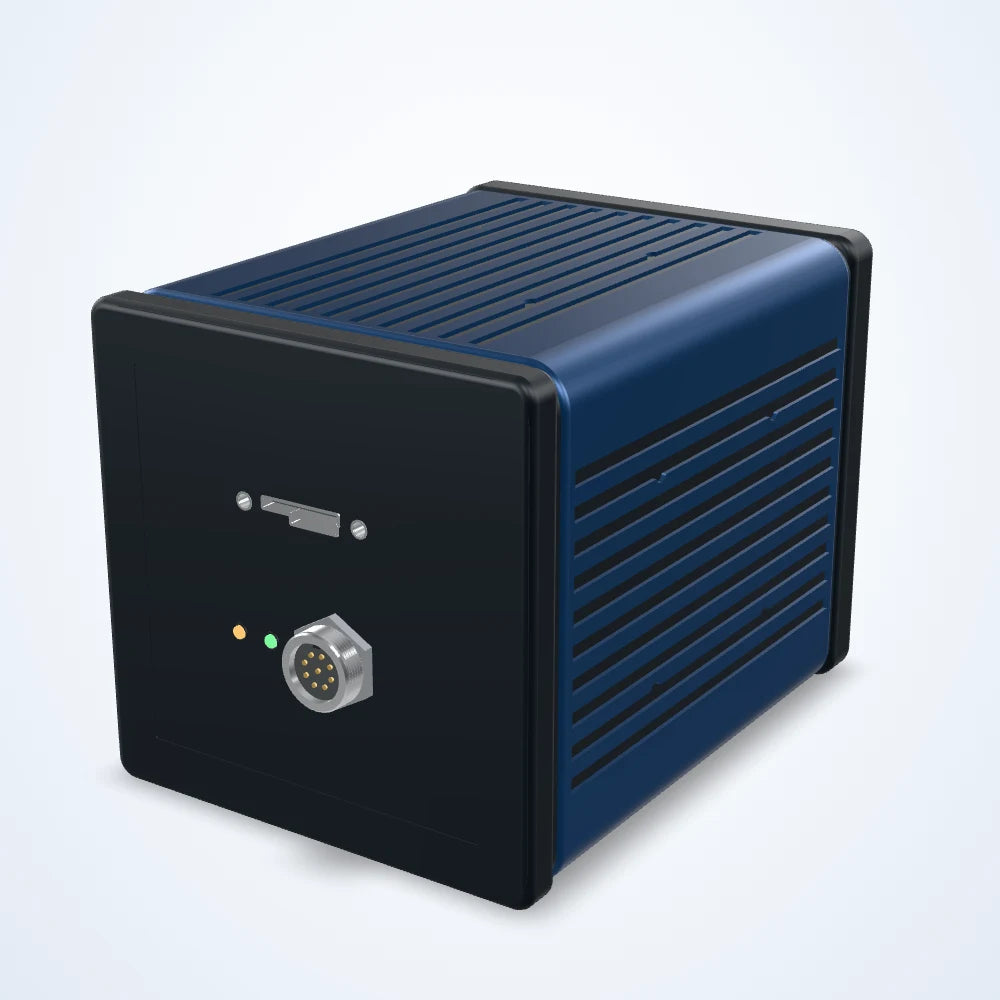

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

1280 x 1024 USB3 SWIR camera, 1.5", 200 fps, M42, 1280x1024 USB3.0 (LS-CMR-0539)

Model LS-CMR-0539

  • Resolution1280x1024
  • SensorInGaAs
  • InterfaceUSB3.0
  • Speed200 fps
  • Lens mountM42
  • Pixel size15 μm
$37,450.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

0.78 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

1280 x 1024 USB3 SWIR camera, 1.5", 200 fps, M42, 1280x1024 USB3.0 (LS-CMR-0539)LS-CMR-0539

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.3 MP SWIR camera for inspection, measurement and guidance on the production line. InGaAs sensor (1.5"); 1280 x 1024 pixels of 15 μm; up to 200 frames per second; USB3 interface; M42 lens mount; spectral range 900-1700 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0539
Spectral range900-1700 nm
Quantum efficiency≥ 70@1.55 μm
Readout Noise586.82e(LG), 35.05e(MG), 68.44e(HG) (For reference only)
Cooling40° C below ambient temperature

Sensor and imaging

Sensor typeInGaAs
Sensor size1.5"
Max. frame rate200 fps
Pixel size15 μm
Resolution1280x1024
Conversion Gain1μV/e- (LG), 16μV/e- (MG), 53.3μV/e- (HG)
Exposure time16 μs~1s
Pixel formatMono 8 / Mono 14 / Packet12

Interfaces and I/O

Data interfaceUSB3.0

Environment and compliance

Storage temperature-40~85 °C
Operating temperature-30~60 °C
Humidity20%–80% RH, non-condensing

Electrical

Power supplyDC 12 V
Power consumption8.4 W(TEC OFF)/ <16 W(TEC ON)

Mechanical

Lens mountM42-Mount

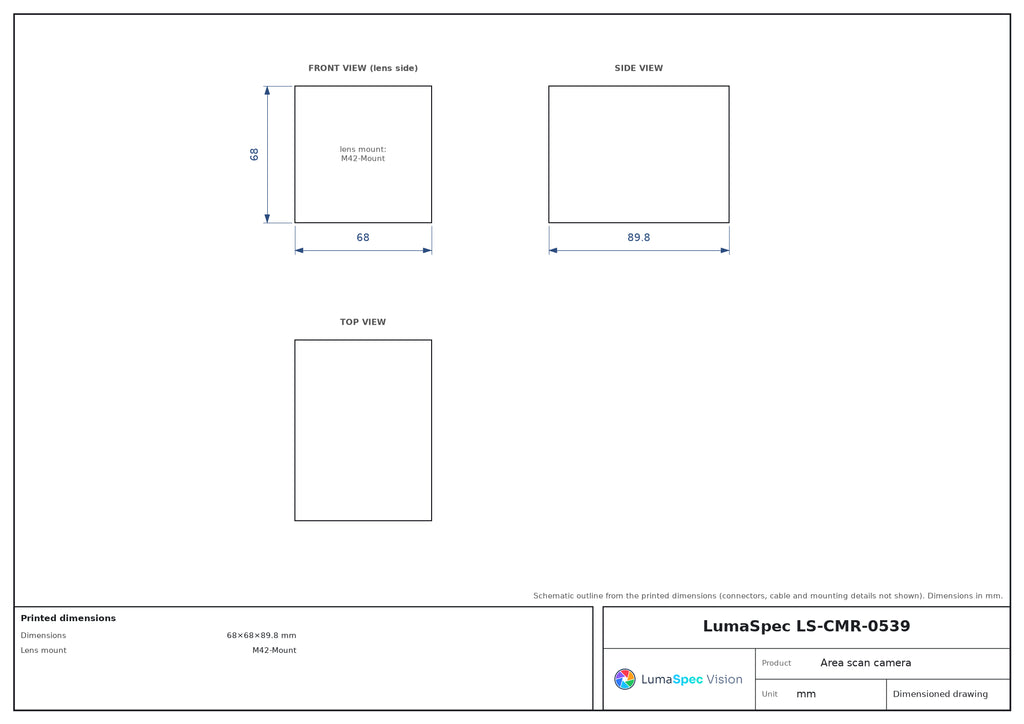

Dimensions68×68×89.8 mm (485g)
Shipping weight0.78 kg
