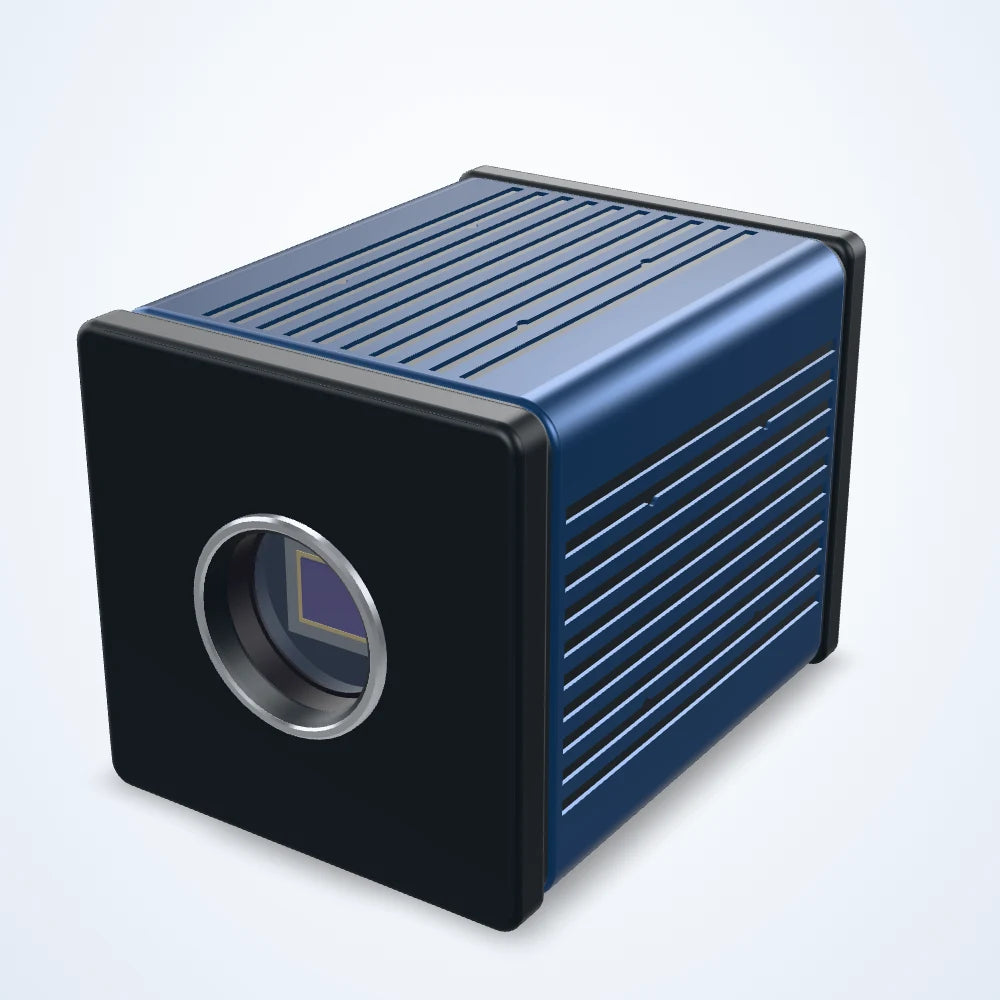

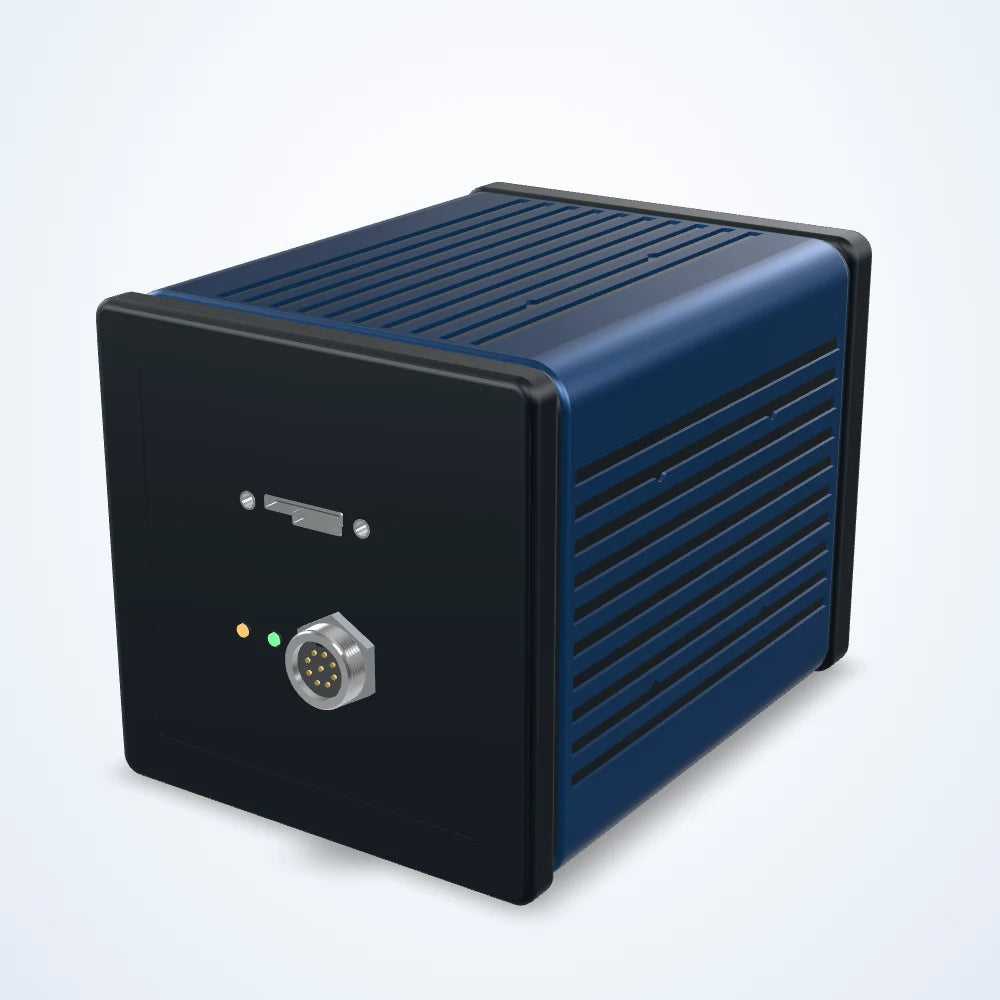

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

640 x 512 USB3 SWIR camera, IMX991, 724 fps, InGaAs USB3.0 (LS-CMR-0537)

Model LS-CMR-0537

  • Resolution640 x 512
  • SensorInGaAs
  • InterfaceUSB3
  • Speed724 fps
$9,630.00

Ships in 3-4 weeks

3.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

640 x 512 USB3 SWIR camera, IMX991, 724 fps, InGaAs USB3.0 (LS-CMR-0537)LS-CMR-0537

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.3 MP SWIR camera for inspection, measurement and guidance on the production line. IMX991 InGaAs sensor; 640 x 512 pixels; up to 724 frames per second; USB3 interface; spectral range 900-1700 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0537
Spectral range900-1700 nm
Scan TypeArea Scan

Sensor and imaging

Sensor modelIMX991
Sensor typeInGaAs
Max. frame rate724 fps
Resolution640 x 512
Sensor size1/4" (the IMX991 sensor's format)

Interfaces and I/O

Data interfaceUSB3

Mechanical

Lens mountC -Mount
Shipping weight3.00 kg
