Area scan camera (series view)
  • Area scan camera (series view)
  • Area scan camera (series view)
  • 640 x 512 USB SWIR camera, IMX991, 1/4" global shutter, 257 fps

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

640 x 512 USB SWIR camera, IMX991, 1/4" global shutter, 257 fps (LS-CMR-0526)

Model LS-CMR-0526

  • Resolution640 x 512
  • SensorInGaAs
  • InterfaceUSB 3.0
  • Speed428.1 fps
  • Lens mountC-mount
  • Pixel size5.0 μm x 5.0 μm
$7,800.00

Ships in 3-4 weeks

0.24 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

640 x 512 USB SWIR camera, IMX991, 1/4" global shutter, 257 fps (LS-CMR-0526)LS-CMR-0526

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.3 MP SWIR camera for inspection, measurement and guidance on the production line. IMX991 InGaAs sensor (1/4"); 640 x 512 pixels of 5 μm; up to 257 frames per second; global shutter; USB interface; C-mount lens mount; spectral range 400-1700 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0526
Spectral range400 nm-1700 nm
Optical Filter400-1700 nm(default) 1030-1800 nm(optional)

Sensor and imaging

Sensor modelIMX991
Resolution640 x 512
Max. frame rate428.1 fps
Sensor typeInGaAs
Sensor size1/4"
Pixel size5.0 μm x 5.0 μm
ShutterGlobal Shutter
Exposure time15 μs-60sec

Interfaces and I/O

Data interfaceUSB 3.0

Environment and compliance

Operating temperature-40~85 °C ( Storage ), -20~60° C ( Working )

Mechanical

Lens mountC-Mount

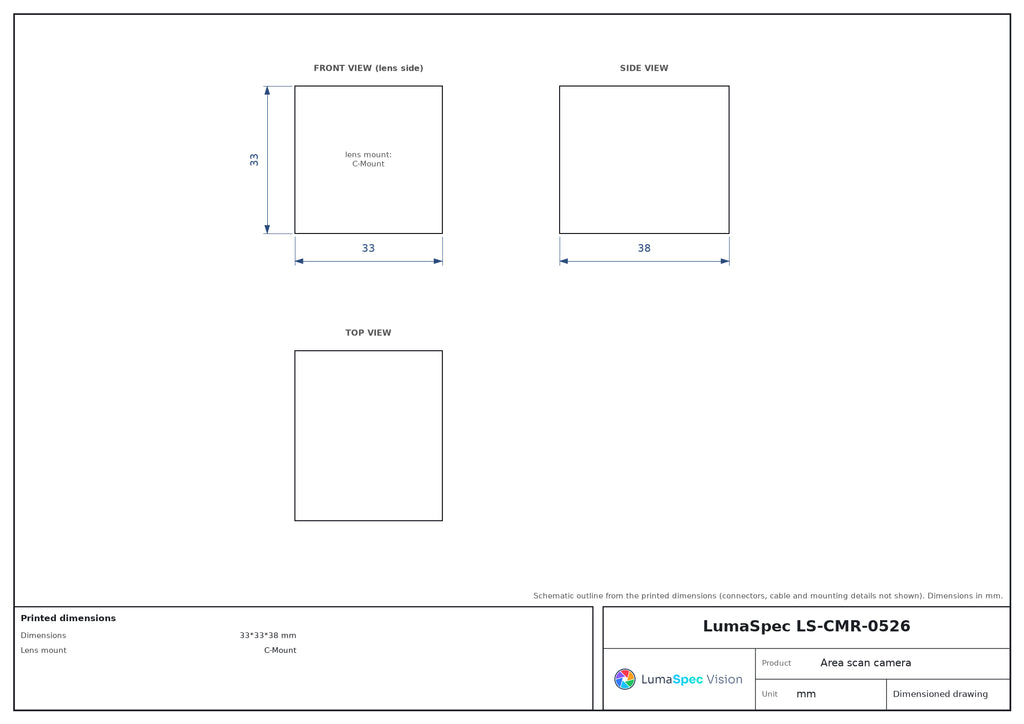

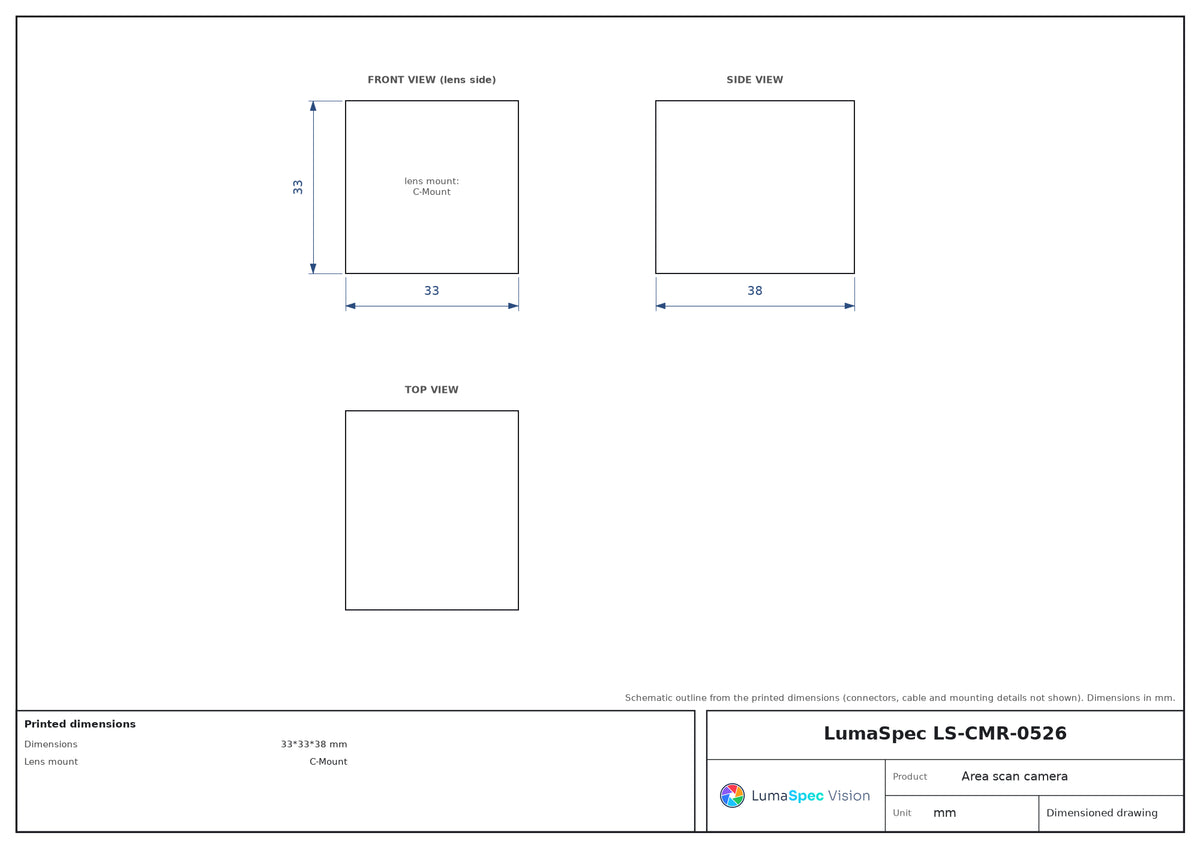

Dimensions33*33*38 mm (70g) (Dimensions D)
Shipping weight0.24 kg
