640 x 512 USB3 SWIR camera, 3/4" global shutter, 724 fps, 900-1700nm 3/4” USB3.0

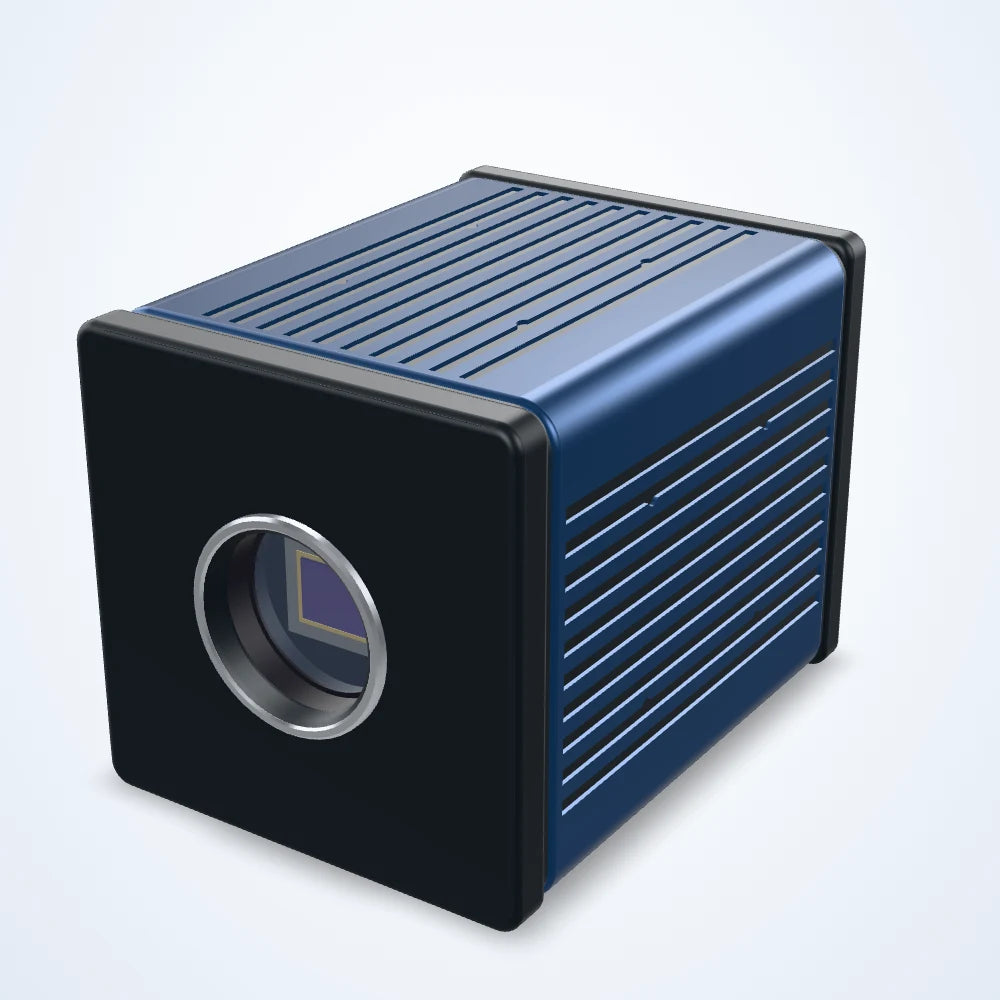

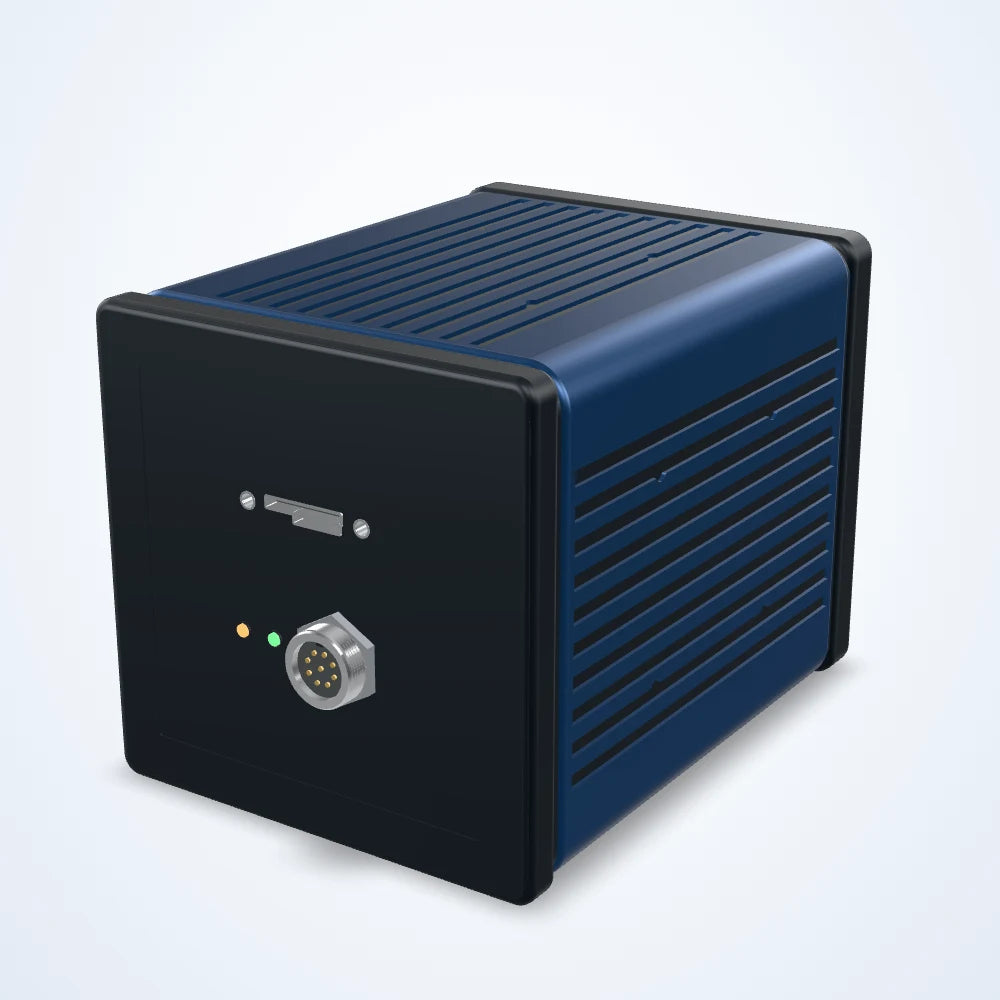

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

640 x 512 USB3 SWIR camera, 3/4" global shutter, 724 fps, 900-1700 nm 3/4” USB3.0 (LS-CMR-0536)

Model LS-CMR-0536

Resolution640x512
SensorInGaAs
InterfaceUSB3.0
Speed724 fps
Lens mountC-mount
Pixel size15 μm

$16,280.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

0.78 kg shipping weight

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

0.3 MP SWIR camera for inspection, measurement and guidance on the production line. InGaAs sensor (3/4"); 640 x 512 pixels of 15 μm; up to 724 frames per second; global shutter; USB3 interface; C-mount lens mount; spectral range 900-1700 nm.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0536
Spectral range	900-1700 nm
Quantum efficiency	75%@1350 nm
Readout Noise	586.82e(LG), 35.05e(MG), 68.44e(HG)
Cooling	40° C below ambient temperature
Spectral Band	0.9-1.7um

Sensor and imaging

Sensor type	InGaAs
Sensor size	3/4"
Max. frame rate	724 fps
Pixel size	15 μm
Resolution	640x512
Image buffer	512 MB
Conversion Gain	138.6e-/ADU(LG), 5.54e-/ADU(MG), 1.2e-/ADU (HG)
Exposure time	16 us~1s
Pixel format	Mono 8 / Mono 14 / Packet12
Shutter	Global
Dynamic range	70.6 dB(LG), 63.0 dB(MG)
Pixel bit depth	14 bit

Interfaces and I/O

Data interface	USB3.0
Digital I/O	1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O

Environment and compliance

Storage temperature	-40~85 °C
Operating temperature	-30~60 °C
Humidity	20%–80%, non-condensing

Electrical

Dark Current	30fa@0.1 V&18 °C
Power supply	DC 12 V
Power consumption	8.4 W(TEC OFF)/ <16 W(TEC ON)

Mechanical

Lens mount	C-Mount
Dimensions	68×68×90.3 mm (485g)
Weight	485g
