Area scan cameras

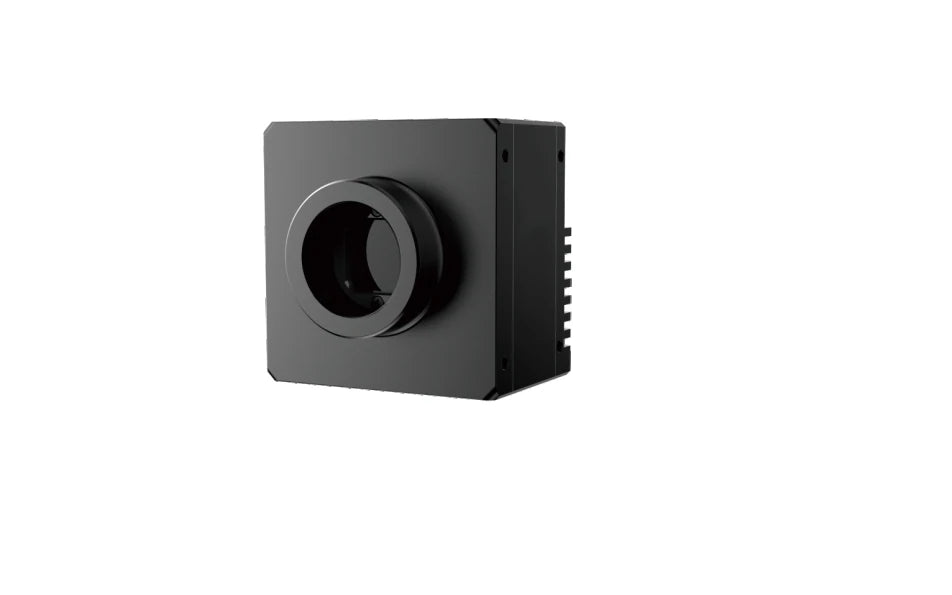

USB3.0 area scan camera, LS-CMR-S24 series
- 4 models
- from $179.00
- Series LS-CMR-S24
The USB3.0 area scan camera, LS-CMR-S24 series is a range of 4 area scan cameras from LumaSpec Vision, from $179.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2.5 MP, USB3, Mono, 4.2 MP, USB3, Color/Mono, 13 MP, USB3, Color/Mono, 17 MP, USB3, Color/Mono
- Interface
- USB3
- Resolution
- Up to 3 MP, 5 MP, 12 MP, 16-25 MP
- Shutter
- Global, Rolling
- Colour
- Mono
- Lens mount
- C-mount
- Sensor format
- 1.1" - 1.2", 4/3" - APS-C
Features
- Programmable IO, supports external trigger and flash synchronous photography
- Supports 16bit gray and 48bit color lossless format output
- 0.3MP to 20MP CMOS, multiple global shutter cameras available
- One computer can connect multiple cameras and work stably for a long time without dropping frames
- Fully compatible with the GigE camera SDK, seamless replacement
- Supports PC Linux and ARM Linux, can be integrated into embedded devices
- Supports vision protocols; compatible with Halcon, VisionPro, LabVIEW and other vision software
Typical uses
- Electronic 3C
- Semiconductor automation
- Logistics code scanning
- Intelligent transportation
- Biomedicine
- Packaging and printing
All 4 models in the USB3.0 area scan camera, LS-CMR-S24 series
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CMR-0359 | 2.5 MP, USB3, Mono | 1936x1280@30FPS | 30 | 1.5" | $179.00 | View |
| LS-CMR-0360 | 4.2 MP, USB3, Color/Mono | 2048x2048@85FPS | 85 | 1.1" | $239.00 | View |
| LS-CMR-0361 | 13 MP, USB3, Color/Mono | 4112×3088@30FPS | 30 | 1.1" | $1,769.00 | View |
| LS-CMR-0362 | 17 MP, USB3, Color/Mono | 4112×4112@22.75FPS | 22.75 | 4/3" | $1,769.00 | View |
