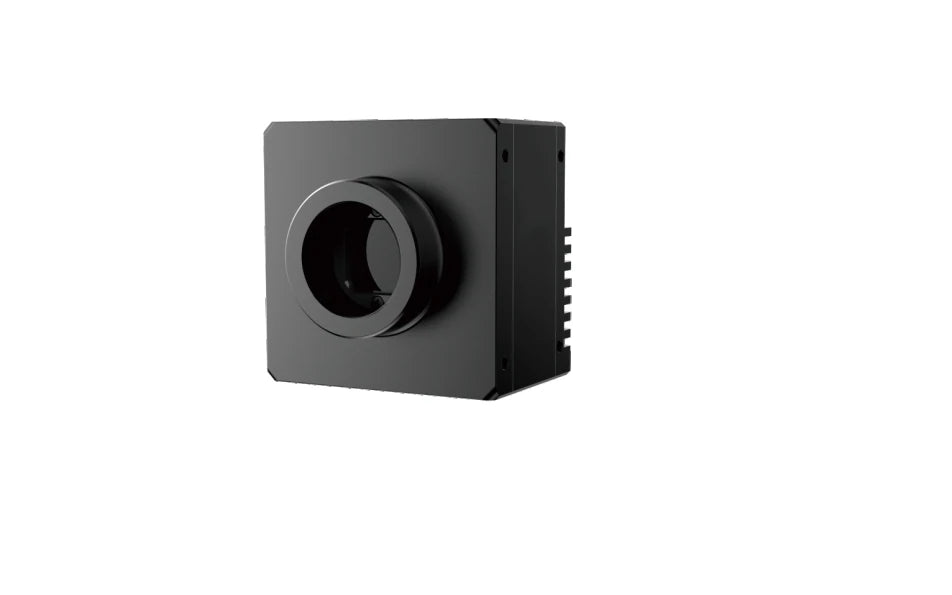

Representative photo of this series

Area scan cameras

USB3.0 area scan camera, LS-CMR-S24 series, 2.5 MP, USB3, Mono (LS-CMR-0359)

Model LS-CMR-0359

Resolution1936x1280
SensorCMOS
InterfaceUSB3.0
Speed30
Lens mountC-mount
Pixel size9.9μm

$179.00

Ships in 2-3 weeks

0.8 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

USB3.0 area scan cameras with 5Gbps transmission bandwidth and high-speed sensors: a 0.3MP camera reaches 800 fps with a minimum transmission time of 1.2 ms and a 20MP camera reaches 18fps; one computer can run multiple cameras at high frame rate. Low CPU utilization through DMA transmission. Widely used in electronic 3C, semiconductor automation, logistics code scanning, intelligent transportation, biomedicine, packaging and printing.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0359
Vision standard	USB3Vision 1.0, GenICam
Driver	Directshow component Halcon special component Labview special driver OCX component TWAIN component
Programming language pack	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Tailpiece suffix options (AU/FU/CU/2SU)	T1V-C: line sequence definition 1, 12V power supply, power supply shrapnel type aircraft head, C-mount, Recommend; -T: line sequence definition 2, aircraft head, CS-mount, planned shutdown; -T-C: line sequence definition 2, aircraft head, C-mount, planned shutdown; -TV-C: line sequence definition 3, 12V power supply, aircraft head, C-mount, planned shutdown
Sensitivity	3.9V/lux·s
Acquisition mode	Continuous/soft trigger/hard trigger
Frame buffer	128M Bytes
User-defined data area	2K Bytes

Sensor and imaging

Pixels	2.4MP
Sensor type	CMOS
Shutter method	Rolling
Maximum resolution	1936x1280
Pixel size	9.9μm
Frame rate (FPS)	30
Minimum exposure	0.0107ms
Sensor model	OEM
Resolution @ frame rate	1936x1280@30FPS
Pixel size (detail)	9.9μm×9.9μm
Pixel bit depth	12bit
Maximum gain (multiple)	16
Exposure time range (ms)	0.0107~178957
Sensor format	1.5"

Interfaces and I/O

Data interface	USB3.0
Connector pinout -T1V-C (Port A)	1 Red PWR+ (camera power input positive); 2 White GPI1+/TRIG_IN+ (default trigger input); 3 Brown GPI2/GPO2 (non-isolated bidirectional IO); 4 Green GPO1+/STRB_OUT+ (default flash output); 5 Yellow GPO1-/STRB-OUT-/TRIG_IN- (GPIO common negative terminal); 6 Black PWRGND
Connector pinout -T, -T-C	1 Green GPO1+/STRB_OUT+ (default flash output); 2 Yellow GPO1-/STRB_OUT- (default flash output); 3 White GPI1+/TRIG_IN+ (default trigger input); 4 Brown GPI1-/TRIG_IN- (default trigger input); 5 Red GPO2+; 6 Black GPO2
Connector pinout -TV-C (Port A)	1 Green GPO1+/STRB_OUT+; 2 Yellow GPO1-/STRB_OUT; 3 White GPI1+/TRIG_IN+; 4 Brown GPI1-/TRIG_IN-; 5 Red PWR+; 6 Black PWRGND
Video output format	Mono8/12bit
GPIO	2 inputs, 2 outputs

Light

Colour	Mono
Mono / colour	Mono

Environment and compliance

Working temperature @ humidity	0~50℃ @ 20%~80% (no condensation)
Storage temperature @ humidity	-30~60℃ @ 20%~95% (no condensation)

Computing

Operating system	WIINXP, WIN7/8/10 32@64-bit system, Linux and ARM Linux driver (customizable), Android platform driver (customizable)

Electrical

Power supply	5V
Power	<50W
Voltage	5V

Mechanical

Target size	1.5"
Lens mount	C-Mount
Dimensions	120x119x121mm (without lens mount and rear shell interface)
Weight	<500g

Downloads

Datasheet (PDF)LS-CMR-0359 · 1.1 MB

Features

Programmable IO, supports external trigger and flash synchronous photography
Supports 16bit gray and 48bit color lossless format output
0.3MP to 20MP CMOS, multiple global shutter cameras available
One computer can connect multiple cameras and work stably for a long time without dropping frames
Fully compatible with the GigE camera SDK, seamless replacement
Supports PC Linux and ARM Linux, can be integrated into embedded devices
Supports vision protocols; compatible with Halcon, VisionPro, LabVIEW and other vision software

Applications

Electronic 3C
Semiconductor automation
Logistics code scanning
Intelligent transportation
Biomedicine
Packaging and printing
