Area scan cameras

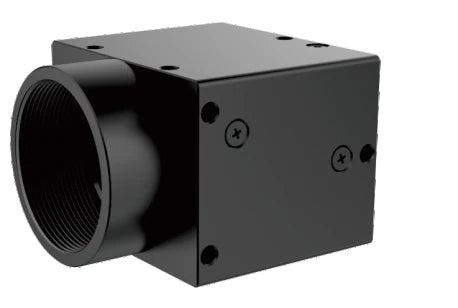

USB3.0 area scan camera, LS-CMR-S28 series
- 5 models
- from $1,019.00
- Series LS-CMR-S28
The USB3.0 area scan camera, LS-CMR-S28 series is a range of 5 area scan cameras from LumaSpec Vision, from $1,019.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 4.2 MP, USB3, Color/Mono, 8.8 MP, USB3, Color/Mono, 12 MP, USB3, Color/Mono, 13 MP, USB3, Color/Mono
- Interface
- USB3
- Resolution
- 5 MP, 6-10 MP, 12 MP
- Shutter
- Global, Rolling
- Lens mount
- C-mount
- Sensor format
- 1", 1.1" - 1.2"
Features
- Programmable IO, supports external trigger and flash synchronous photography
- Supports 16bit gray and 48bit color lossless format output
- 0.3MP to 20MP CMOS, multiple global shutter cameras available
- One computer can connect multiple cameras and work stably for a long time without dropping frames
- Fully compatible with the GigE camera SDK, seamless replacement
- Supports PC Linux and ARM Linux, can be integrated into embedded devices
- Supports vision protocols; compatible with Halcon, VisionPro, LabVIEW and other vision software
- Camera comes with programmable IO.
Typical uses
- Electronic 3C
- Semiconductor automation
- Logistics code scanning
- Intelligent transportation
- Biomedicine
- Packaging and printing
All 5 models in the USB3.0 area scan camera, LS-CMR-S28 series
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CMR-0378 | 4.2 MP, USB3, Color/Mono | 2048×2048@88FPS | 88 | 1" | $1,019.00 | View |
| LS-CMR-0381 | 13 MP, USB3, Color/Mono | 4080×3072@30.75FPS | 30.75 | 1" | $1,019.00 | View |
| LS-CMR-0379 | 8.8 MP, USB3, Color/Mono | 4096X2160@32FPS | 32 | 1" | $1,489.00 | View |
| LS-CMR-0380 | 12 MP, USB3, Color/Mono | 4096×3000@23.5FPS | 23.5 | 1.1" | $1,759.00 | View |
| LS-CMR-0382 | 13 MP, USB3, Color/Mono | 4096×3072@28.5FPS | 28.5 | 1" | $1,769.00 | View |
