Area scan cameras

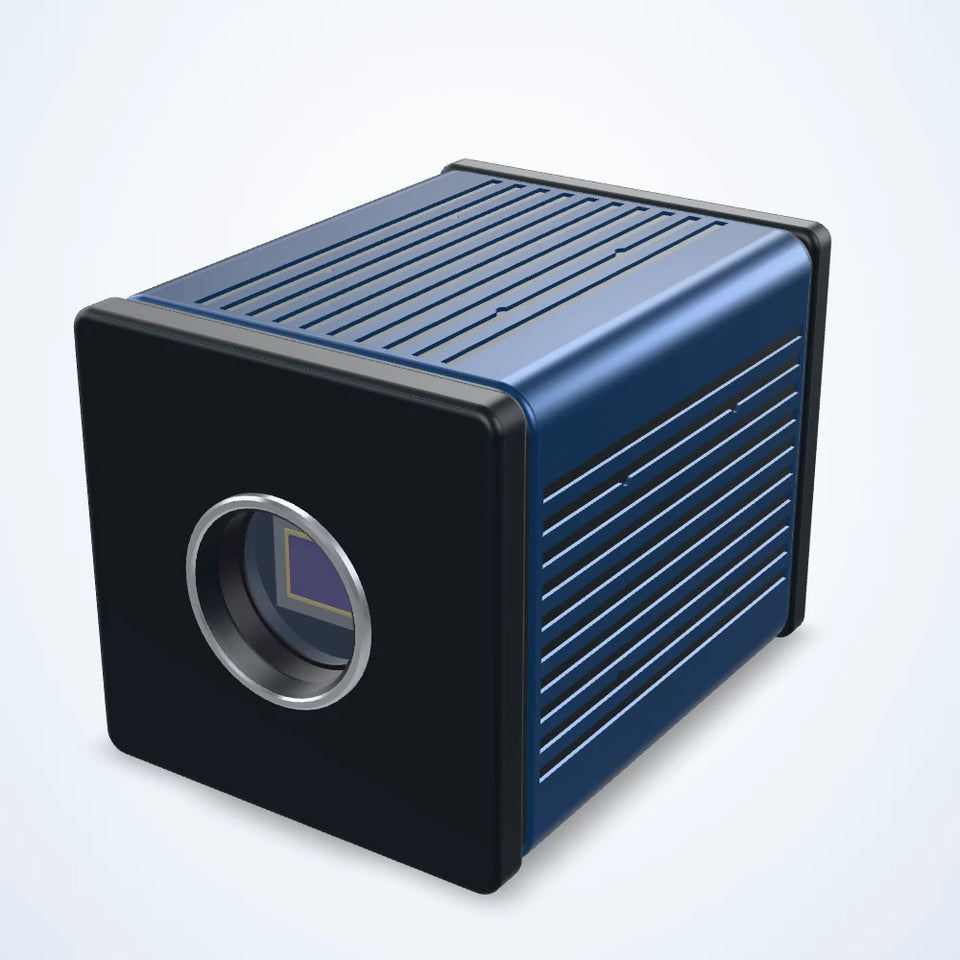

UV USB3 area scan cameras (LS-CMR-S13)
- 13 models
- from $2,350.00
- Series LS-CMR-S13
The UV USB3 area scan cameras (LS-CMR-S13) is a range of 13 area scan cameras from LumaSpec Vision, from $2,350.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.5 MP, 1", USB3, 1.3 MP, 1", USB3, 1.3 MP, USB3, 4.2 MP, 1.2", USB3, 4.2 MP, 2.0", USB3, 8.1 MP, 2/3", USB3, 16.8 MP, 3.2", USB3
- Interface
- USB3
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP, 16-25 MP
- Shutter
- Global, Rolling
- Spectrum
- UV
- Lens mount
- M42, M54, C-mount
- Sensor format
- 2/3", 1", 1.1" - 1.2"
Features
- Thermo-electric cooling for low dark noise
- Global shutter: moving parts are imaged without skew
All 13 models in the UV USB3 area scan cameras (LS-CMR-S13)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CMR-0192 | 1.3 MP, USB3 | 1280 × 1024 | 30 fps | USB3 | $2,350.00 | View |
| LS-CMR-0193 | 1.3 MP, 1", USB3 | 1280 × 1024 | 30 FPS | USB 3.0 | $2,350.00 | View |
| LS-CMR-0187 | 0.5 MP, 1", USB3 | 800×600 | 60 fps | USB 3.0 | $2,520.00 | View |
| LS-CMR-0191 | 1.3 MP, USB3 | 1280 × 1024 | 30 fps | USB3 | $2,550.00 | View |
| LS-CMR-0188 | 1.3 MP, 1", USB3 | 280×1024 | 30 fps | USB 3.0 | $2,600.00 | View |
| LS-CMR-0189 | 1.3 MP, 1", USB3 | 280×1024 | 30 fps | USB 3.0 | $2,600.00 | View |
| LS-CMR-0190 | 1.3 MP, 1", USB3 | 280×1024 | 30 fps | USB 3.0 | $2,600.00 | View |
| LS-CMR-0199 | 8.1 MP, 2/3", USB3 | 2840×2840 | 45 fps | USB 3.0 | $5,570.00 | View |
| LS-CMR-0200 | 16.8 MP, 3.2", USB3 | 4096×4096 | 20/23 fps | USB3.0/ CameraLink | $6,200.00 | View |
| LS-CMR-0195 | 4.2 MP, 1.2", USB3 | 2048 × 2048 | 32 FPS | USB 3.0 | $6,200.00 | View |
| LS-CMR-0197 | 4.2 MP, 1.2", USB3 | 2048×2048 | 74 | USB 3.0 | $6,400.00 | View |
| LS-CMR-0196 | 4.2 MP, 2.0", USB3 | 2048 × 2048 | 37 fps | USB 3.0 | $8,400.00 | View |
| LS-CMR-0201 | 16.8 MP, 3.2", USB3 | 4096×4096 | 20/23 fps | USB3.0/ CameraLink | $34,500.00quote | View |
