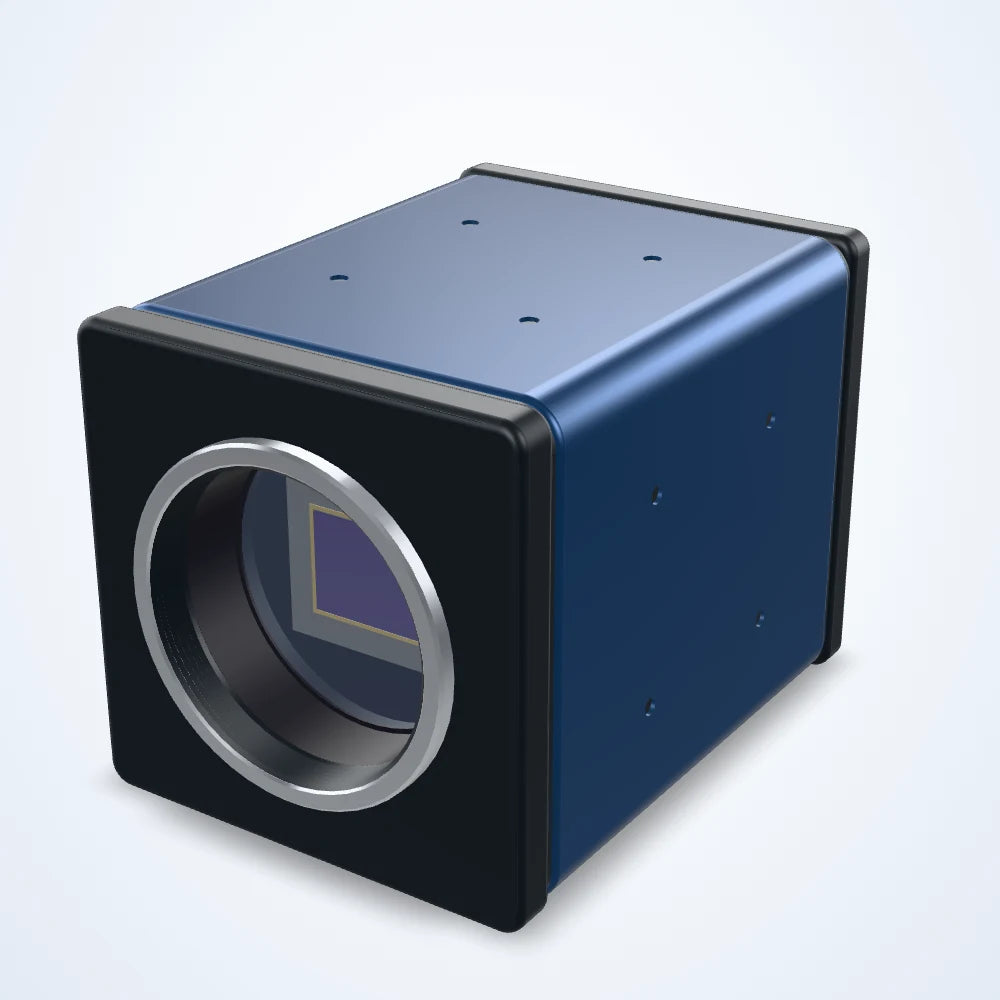

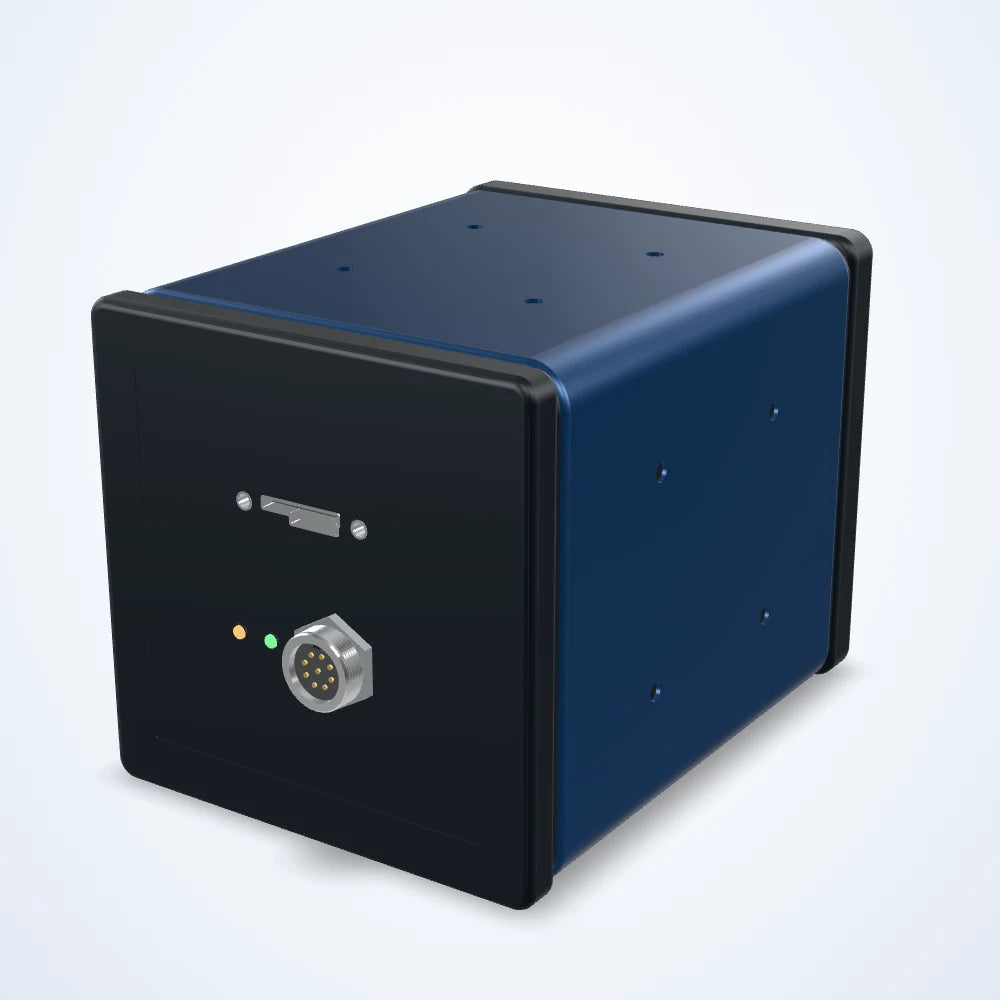

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

4.2 MP UV USB3 area scan camera, Gsense400BSI, 2.0" rolling shutter, 37 fps, M42 (LS-CMR-0196)

Model LS-CMR-0196

  • Resolution2048 × 2048
  • Sensor2.0"
  • InterfaceUSB 3.0
  • Speed37 fps
  • Lens mountM42
  • Pixel size11 μm
$8,400.00

Ships in 3-4 weeks

2.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4.2 MP UV USB3 area scan camera, Gsense400BSI, 2.0" rolling shutter, 37 fps, M42 (LS-CMR-0196)LS-CMR-0196

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

4.2 MP area scan camera for inspection, measurement and guidance on the production line. Gsense400BSI sensor (2.0"); 2048 x 2048 pixels of 11 μm; up to 37 frames per second; rolling shutter; USB3 interface; M42 lens mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0196
Quantum efficiency95.3%@560

Sensor and imaging

Sensor modelGSENSE400BSI
Resolution2048 × 2048
Max. frame rate37 fps
Sensor size2.0"
Pixel size11 μm
Dynamic range68.3
Exposure time21 us~60s
ShutterRolling
Sensor makeGPixel
Sensor typeCMOS
Pixel bit depth8/12 bit

Interfaces and I/O

Data interfaceUSB 3.0
Digital I/O1 input(opto-isolated), 1 output(opto-isolated), 2 bi-directional custom non-isolated I/O

Light

Color TypeUV

Environment and compliance

Operating temperature-10 - 50°C(Operating), -30 - 70°C(Storage)

Computing

Operating systemWindows, Linux

Electrical

Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run
Power supplyUSB3.0 / DC12 V

Mechanical

Lens mountM42

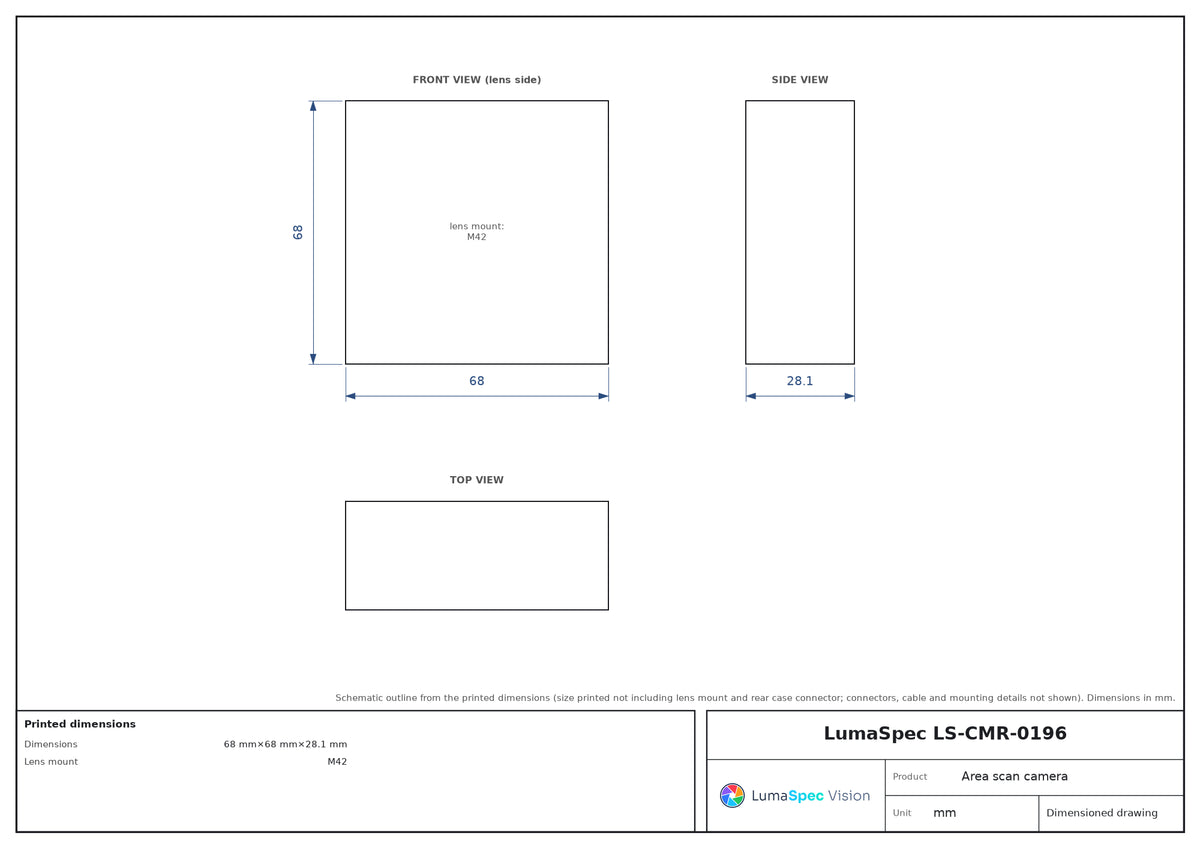

Dimensions68 mm×68 mm×28.1 mm(not including lens mount and rear case connector)
Weight270g
