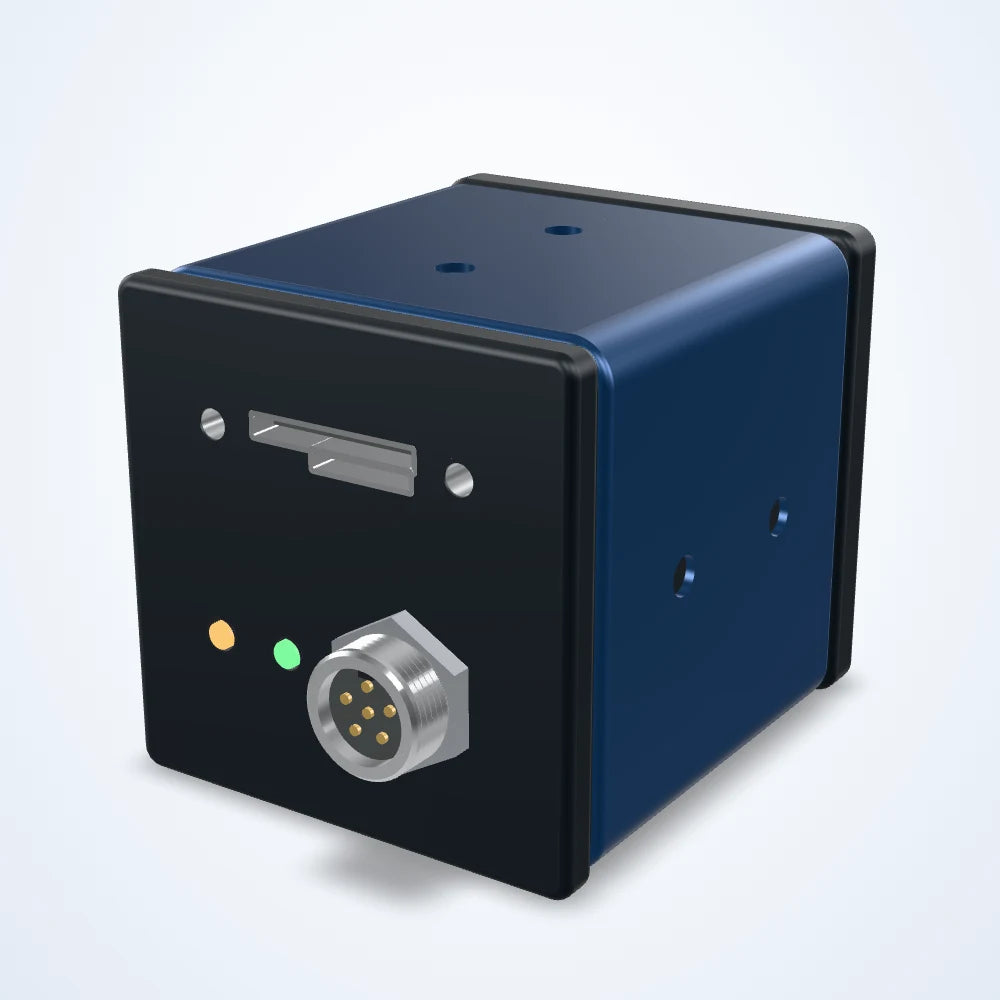

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
1.3 MP UV USB3 area scan camera, Glux9701BSI, 1" rolling shutter, 30 fps (LS-CMR-0188)
Model LS-CMR-0188
- Resolution280×1024
- Sensor1"
- InterfaceUSB 3.0
- Speed30 fps
- Lens mountC-mount
- Pixel size9.76 μm
$2,600.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.3 MP area scan camera for inspection, measurement and guidance on the production line. Glux9701BSI sensor (1"); 1280 x 1024 pixels of 9.76 μm; up to 30 frames per second; rolling shutter; USB3 interface; C-mount lens mount; spectral range 200-1000 nm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0188 |
|---|---|
| Spectral range | 200-1000 nm |
Sensor and imaging
| Sensor model | GLUX9701BSI |
|---|---|
| Resolution | 280×1024 |
| Max. frame rate | 30 fps |
| Sensor size | 1" |
| Pixel size | 9.76 μm |
| Dynamic range | 81.2 dB / / / 81.08 dB |
| Exposure time | 63 μs~60s |
| Shutter | Rolling |
Interfaces and I/O
| Data interface | USB 3.0 |
|---|

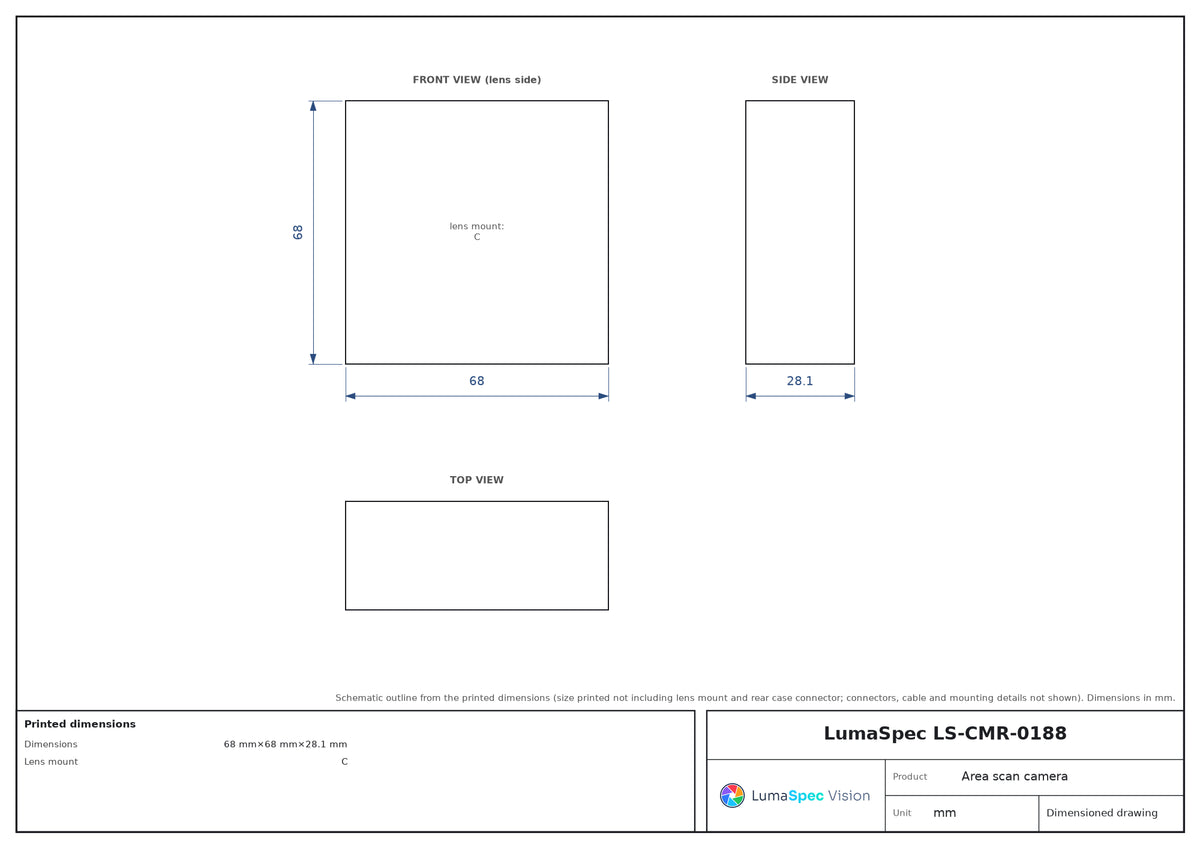

Mechanical
| Lens mount | C |
|---|---|
| Shipping weight | 2.00 kg |
Other models in the UV USB3 area scan cameras (LS-CMR-S13) series
See all 13 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0192 | 1.3 MP, USB3 | $2,350.00 | Ships in 3-4 weeks | View |
| LS-CMR-0193 | 1.3 MP, 1", USB3 | $2,350.00 | Ships in 3-4 weeks | View |
| LS-CMR-0187 | 0.5 MP, 1", USB3 | $2,520.00 | Ships in 3-4 weeks | View |
| LS-CMR-0191 | 1.3 MP, USB3 | $2,550.00 | Ships in 3-4 weeks | View |
| LS-CMR-0189 | 1.3 MP, 1", USB3 | $2,600.00 | Ships in 3-4 weeks | View |
| LS-CMR-0190 | 1.3 MP, 1", USB3 | $2,600.00 | Ships in 3-4 weeks | View |
| LS-CMR-0199 | 8.1 MP, 2/3", USB3 | $5,570.00 | Ships in 3-4 weeks | View |
| LS-CMR-0200 | 16.8 MP, 3.2", USB3 | $6,200.00 | Ships in 3-4 weeks | View |
| LS-CMR-0195 | 4.2 MP, 1.2", USB3 | $6,200.00 | Ships in 3-4 weeks | View |
| LS-CMR-0197 | 4.2 MP, 1.2", USB3 | $6,400.00 | Ships in 3-4 weeks | View |
| LS-CMR-0196 | 4.2 MP, 2.0", USB3 | $8,400.00 | Ships in 3-4 weeks | View |
| LS-CMR-0201 | 16.8 MP, 3.2", USB3 | $34,500.00 Quote | Ships in 3-4 weeks | View |
