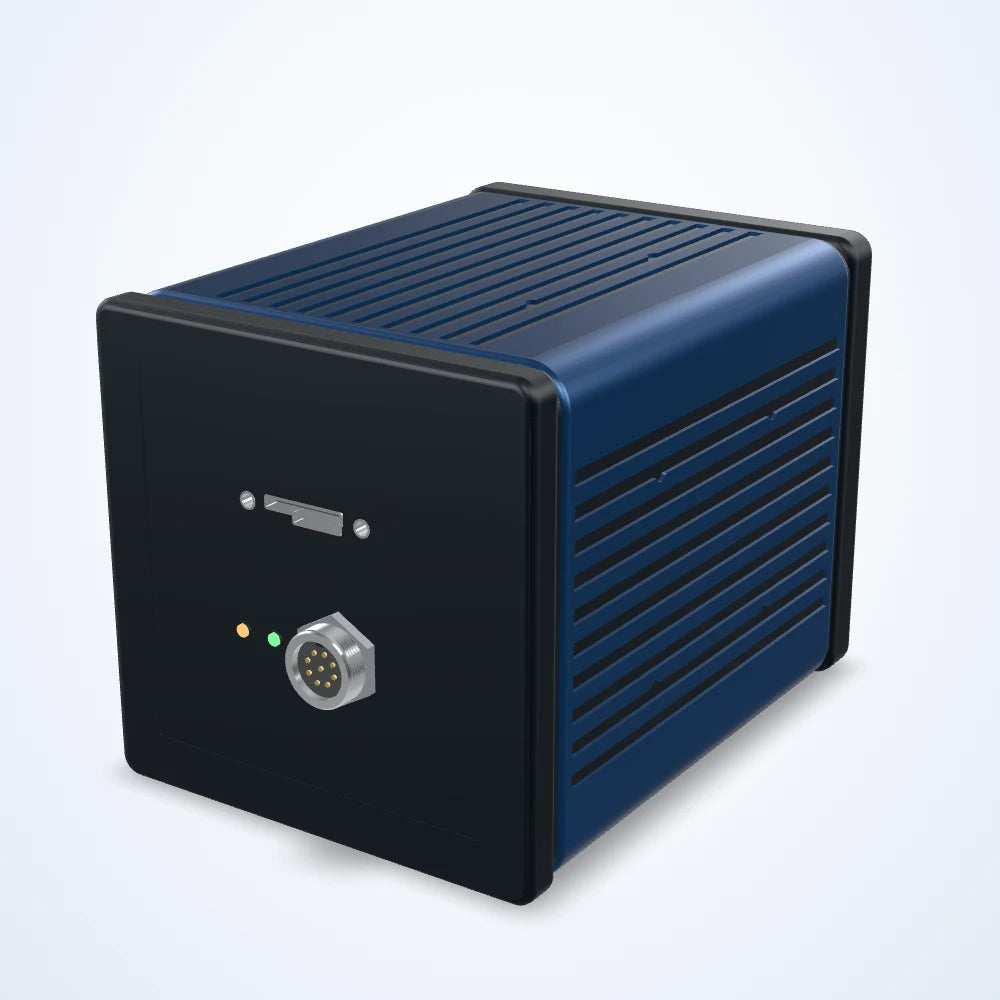

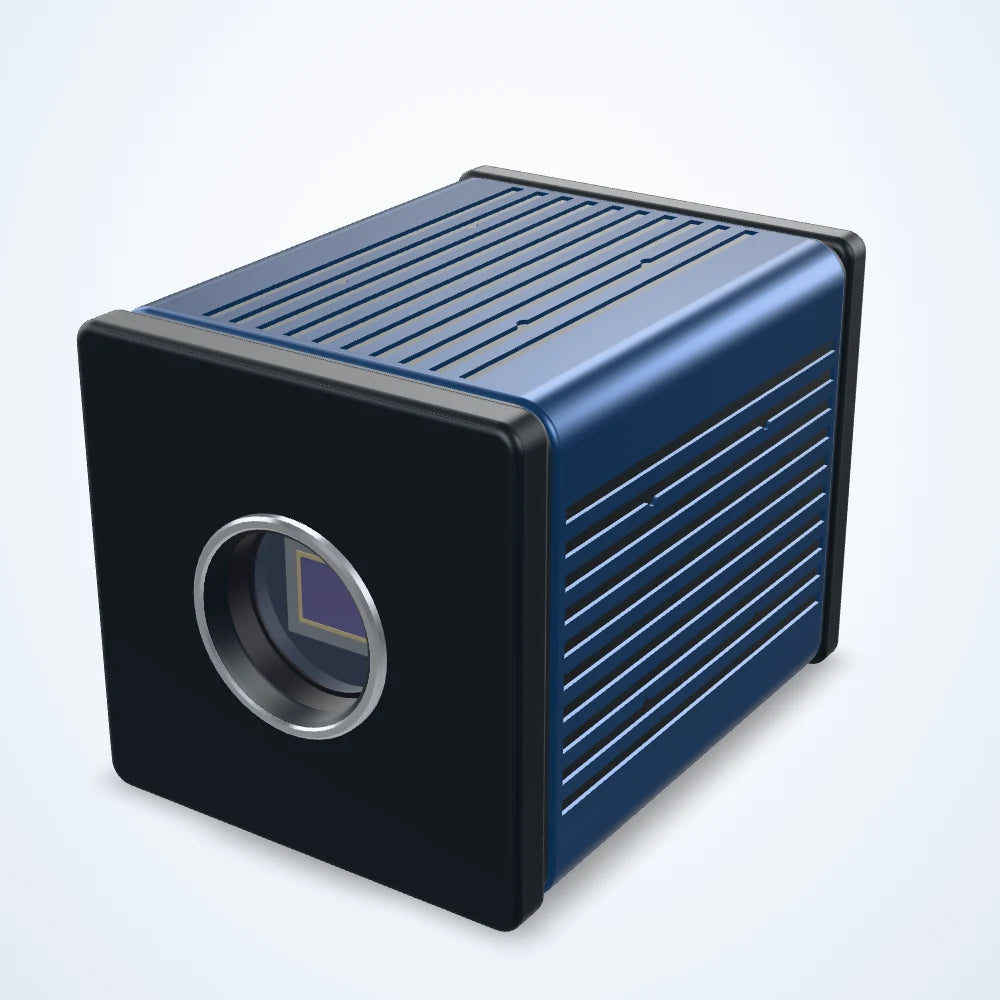

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
4.2 MP UV USB3 area scan camera, Gsense2020BSI, 1.2" rolling shutter, 74 fps (LS-CMR-0197)
Model LS-CMR-0197
- Resolution2048×2048
- Sensor1.2"
- InterfaceUSB 3.0
- Speed74
- Lens mountC-mount
- Pixel size6.5 μm
$6,400.00
In stock - ships the same business day (4 available, order by 2 PM ET)
3.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
4.2 MP area scan camera for inspection, measurement and guidance on the production line. Gsense2020BSI sensor (1.2"); 2048 x 2048 pixels of 6.5 μm; up to 74 frames per second; rolling shutter; USB3 interface; C-mount lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0197 |
|---|---|
| Quantum efficiency | 95%@560 |
Sensor and imaging
| Sensor model | GSENSE2020BSI |
|---|---|
| Resolution | 2048×2048 |
| Max. frame rate | 74 |
| Sensor size | 1.2" |
| Pixel size | 6.5 μm |
| Dynamic range | 65.58 |
| Exposure time | 12 μs~1h |
| Shutter | Rolling |
Interfaces and I/O
| Data interface | USB 3.0 |
|---|
Mechanical
| Lens mount | C |
|---|---|
| Shipping weight | 3.00 kg |
