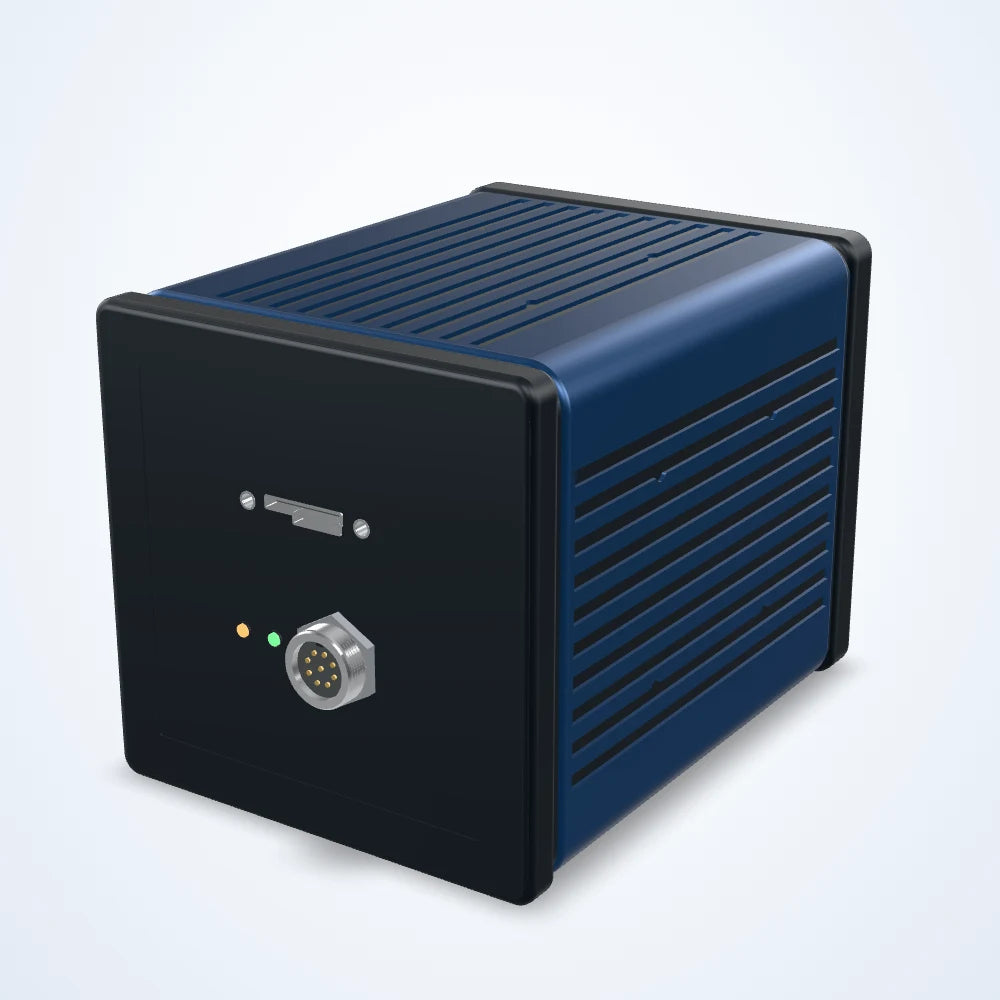

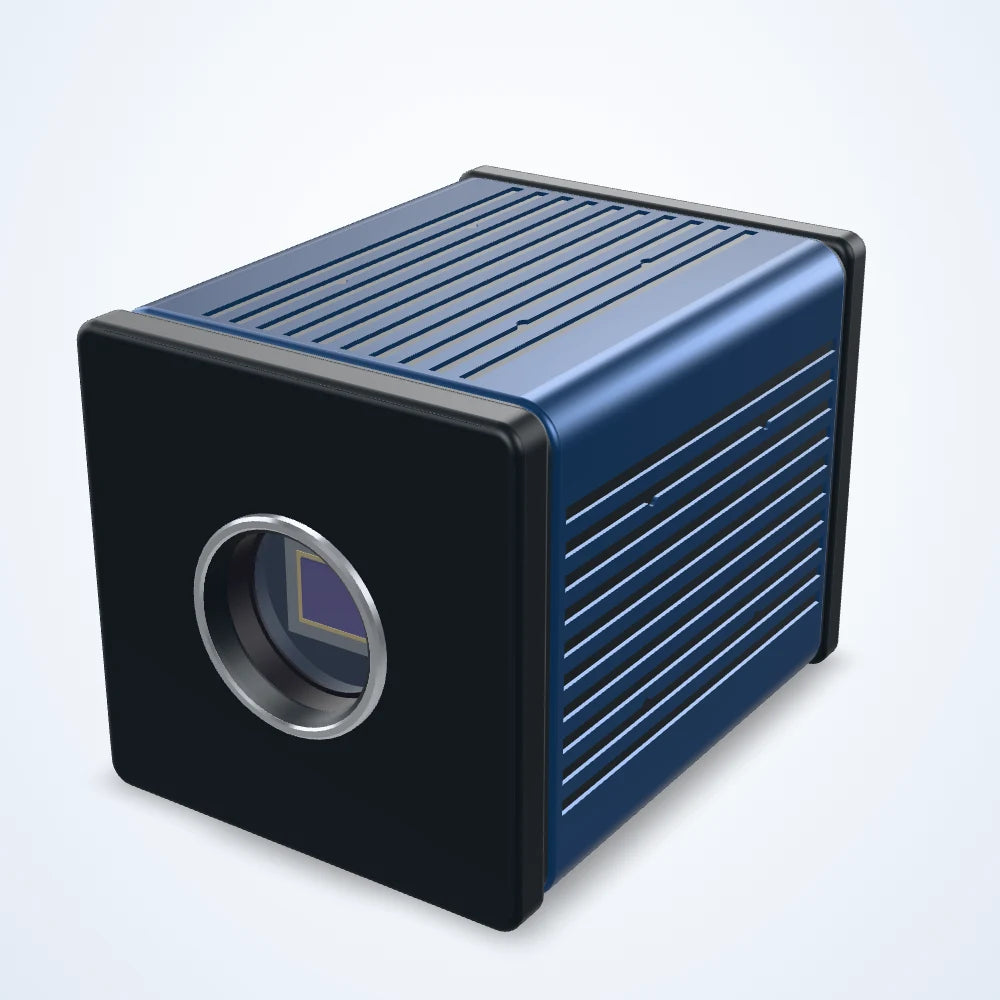

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

1.3 MP UV USB3 area scan camera, rolling shutter, 30 fps, with Deep Cooling (LS-CMR-0191)

Model LS-CMR-0191

  • Resolution1280 × 1024
  • Sensor1"
  • InterfaceUSB3
  • Speed30 fps
  • Lens mountC-mount
$2,550.00

Ships in 3-4 weeks

3.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.3 MP UV USB3 area scan camera, rolling shutter, 30 fps, with Deep Cooling (LS-CMR-0191)LS-CMR-0191

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.3 MP area scan camera for inspection, measurement and guidance on the production line. 1280 x 1024 pixels; up to 30 frames per second; rolling shutter; USB3 interface.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0191

Sensor and imaging

Resolution1280 × 1024
Max. frame rate30 fps
ShutterRolling shutter
Sensor makeGPixel
Sensor modelGLUX1605BSI
Sensor size1"
Sensor typeCMOS
Dynamic range84.72 dB
Pixel bit depth8 bit/HDR16 bit

Interfaces and I/O

Data interfaceUSB3
Digital I/O1 input(opto-isolated), 1 output(opto-isolated), 2 bi-directional custom non-isolated I/O

Light

Color TypeUV

Environment and compliance

Operating temperature-10 - 50°C(Operating), -30 - 70°C(Storage)

Computing

Operating systemWindows, Linux

Electrical

Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run
Power supplyUSB3.0 / DC12 V

Mechanical

Dimensions80 mm×80 mm×101.5 mm(not including lens mount and rear case connector)
Lens mountC-mount
Weight860g
