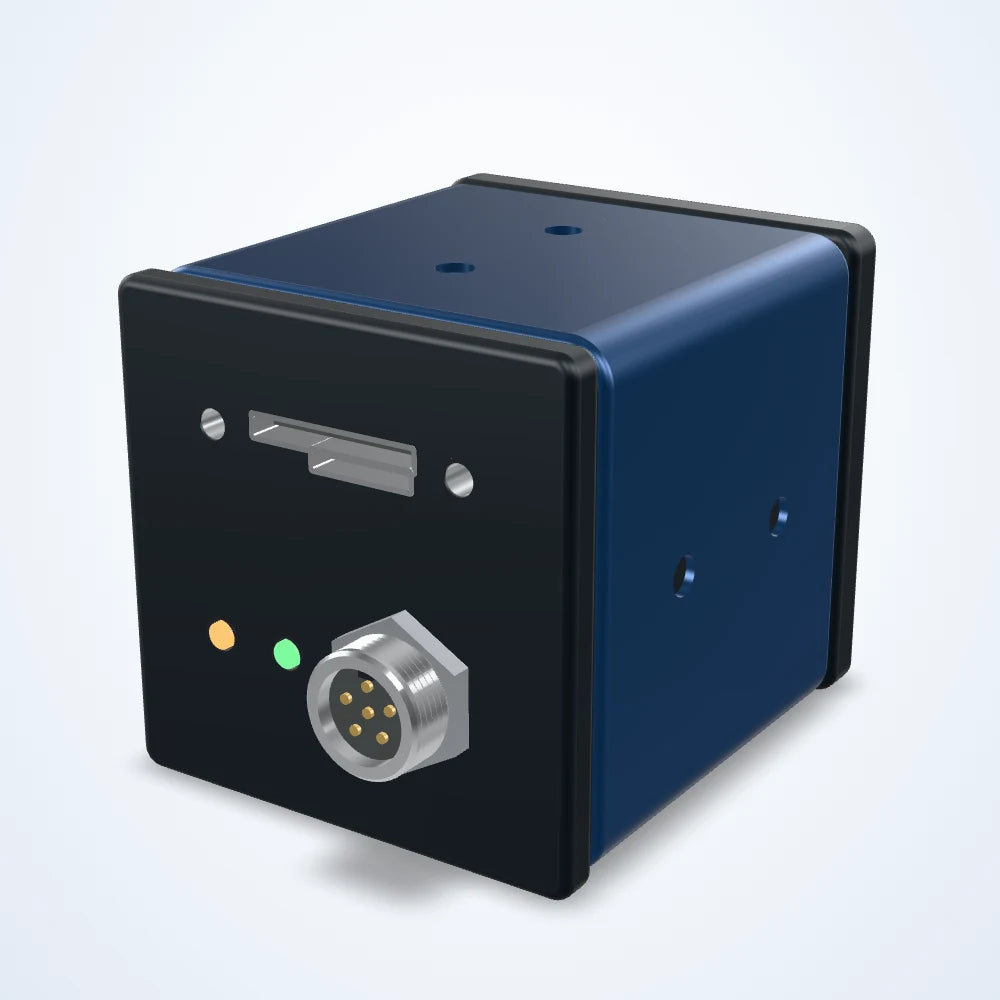

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
8.1 MP UV USB3 area scan camera, IMX487, 2/3" global shutter, 45 fps (LS-CMR-0199)
Model LS-CMR-0199
- Resolution2840×2840
- Sensor2/3"
- InterfaceUSB 3.0
- Speed45 fps
- Lens mountC-mount
- Pixel size2.74
$5,570.00
Ships in 3-4 weeks
3.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8.1 MP area scan camera for inspection, measurement and guidance on the production line. IMX487 sensor (2/3"); 2840 x 2840 pixels of 2.74 μm; up to 45 frames per second; global shutter; USB3 interface; C-mount lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0199 |
|---|---|
| Quantum efficiency | 90%@550 |
Sensor and imaging
| Sensor model | IMX487-AAM |
|---|---|
| Resolution | 2840×2840 |
| Max. frame rate | 45 fps |
| Sensor size | 2/3" |
| Pixel size | 2.74 |
| Dynamic range | 71.2 |
| Exposure time | 30 μs~15s |
| Shutter | Global |
| Sensor make | Sony |
| Sensor type | CMOS |
| Pixel bit depth | 8/12 bit |
Interfaces and I/O
| Data interface | USB 3.0 |
|---|---|
| Digital I/O | 1 input(opto-isolated), 1 output(opto-isolated), 2 bi-directional custom non-isolated I/O |
Light
| Color Type | UV |
|---|
Environment and compliance
| Operating temperature | -10 - 50°C(Operating), -30 - 70°C(Storage) |
|---|
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | USB3.0 / DC12 V |
Mechanical
| Lens mount | C |
|---|---|

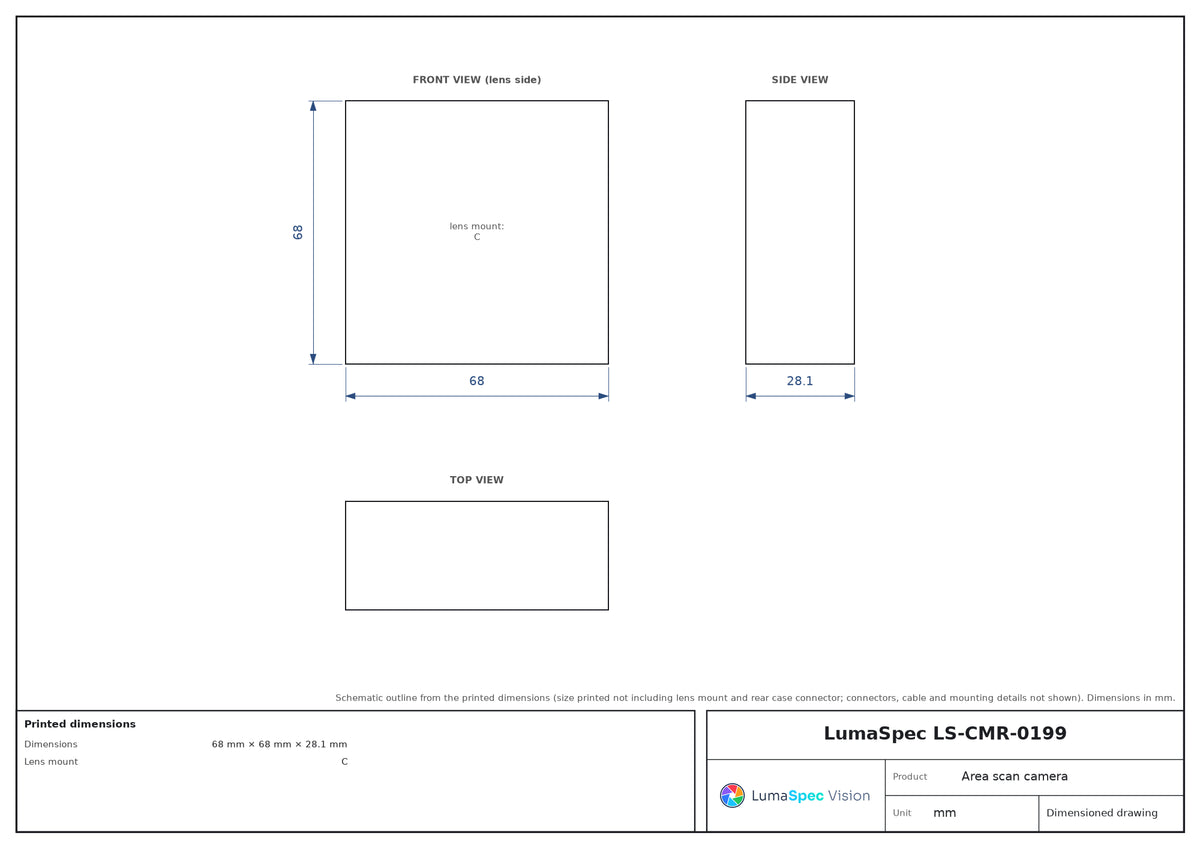

| Dimensions | 68 mm × 68 mm × 28.1 mm(not including lens mount and rear case connector) |
| Weight | 227g |
