Area scan cameras

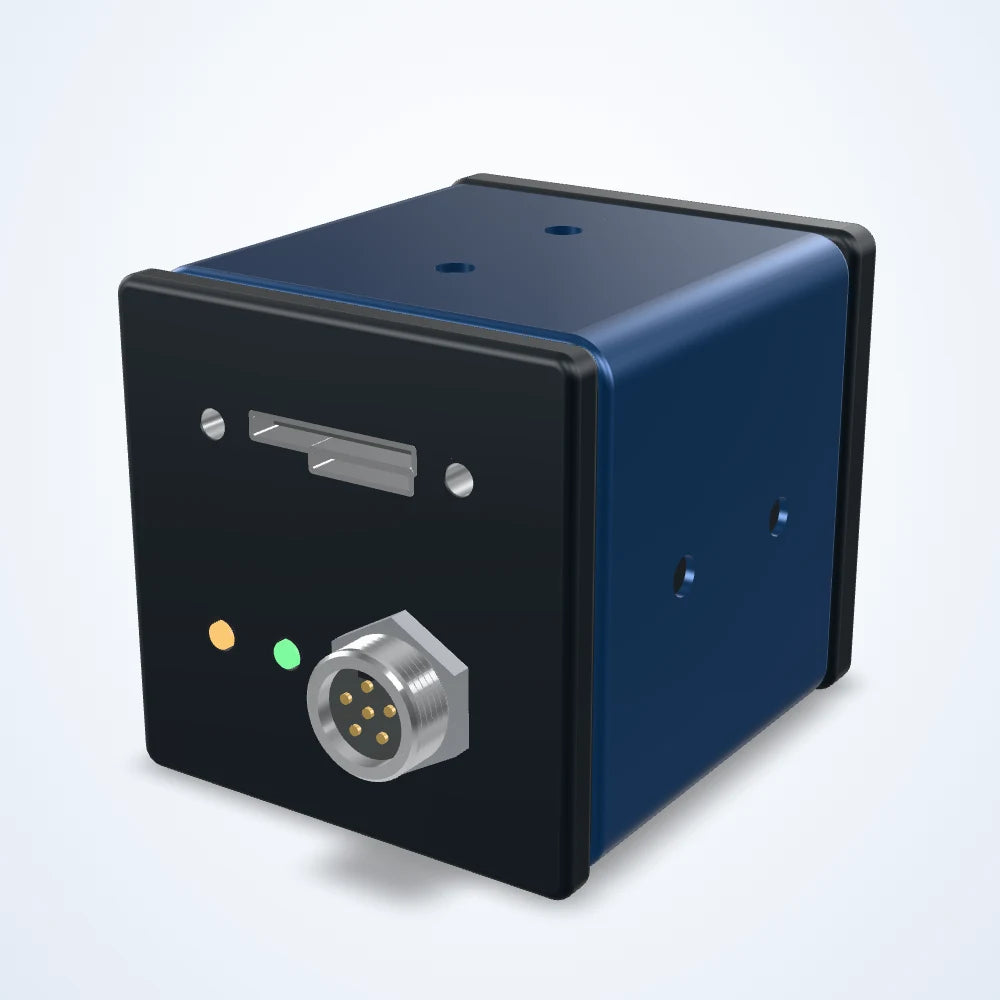

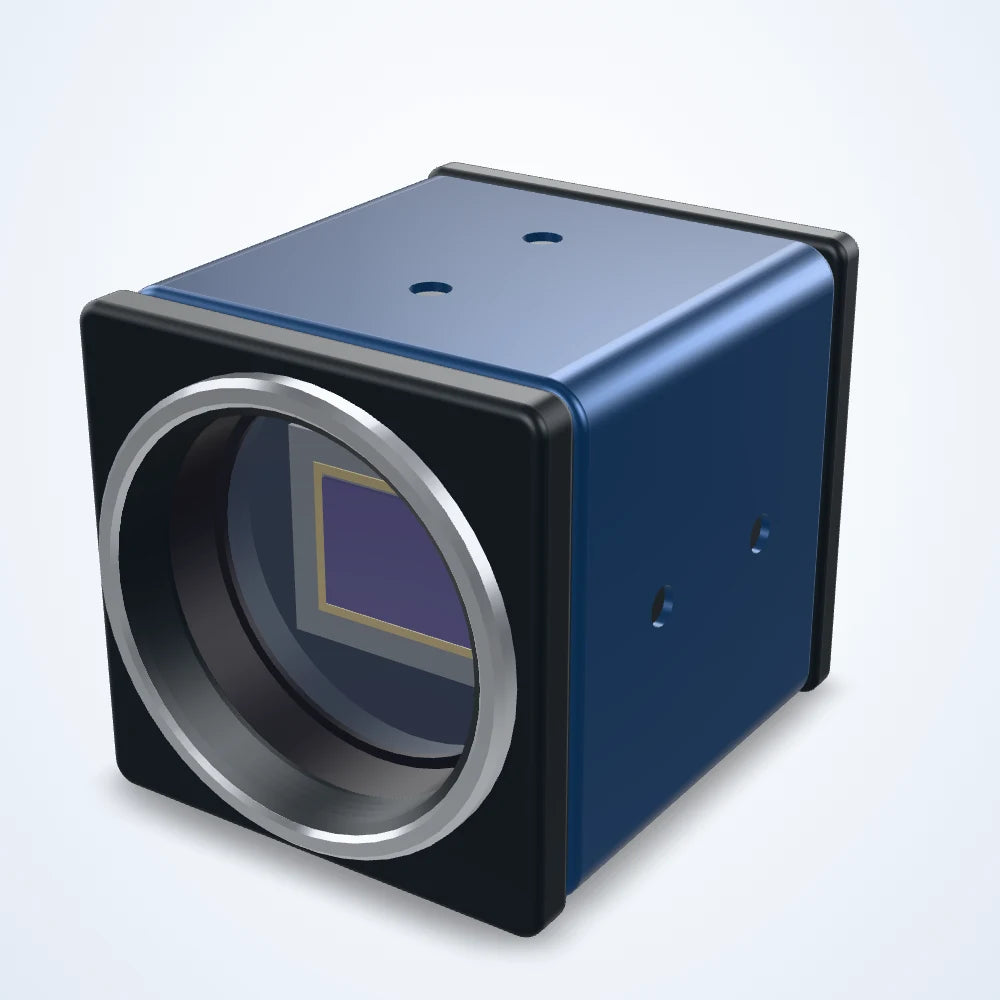

4.2 MP UV USB3 area scan camera, Gsense2020BSI, 1.2" rolling shutter, 32 fps (LS-CMR-0195)
Model LS-CMR-0195
- Resolution2048 × 2048
- Sensor1.2"
- InterfaceUSB 3.0
- Speed32 FPS
- Lens mountC-mount
- Pixel size6.5 μm
$6,200.00
In stock - ships the same business day (5 available, order by 2 PM ET)
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
4.2 MP area scan camera for inspection, measurement and guidance on the production line. Gsense2020BSI sensor (1.2"); 2048 x 2048 pixels of 6.5 μm; up to 32 frames per second; rolling shutter; USB3 interface; C-mount lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0195 |
|---|---|
| Quantum efficiency | 93.7%@550 |
Sensor and imaging
| Sensor model | GSENSE2020BSI |
|---|---|
| Resolution | 2048 × 2048 |
| Max. frame rate | 32 FPS |
| Sensor size | 1.2" |
| Pixel size | 6.5 μm |
| Dynamic range | 81.6 |
| Exposure time | 12 us~60s |
| Shutter | Rolling |
Interfaces and I/O
| Data interface | USB 3.0 |
|---|
Mechanical
| Lens mount | C |
|---|---|
| Shipping weight | 2.00 kg |
Other models in the UV USB3 area scan cameras (LS-CMR-S13) series
See all 13 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0192 | 1.3 MP, USB3 | $2,350.00 | 2 in stock | View |
| LS-CMR-0193 | 1.3 MP, 1", USB3 | $2,350.00 | 5 in stock | View |
| LS-CMR-0187 | 0.5 MP, 1", USB3 | $2,520.00 | 2 in stock | View |
| LS-CMR-0191 | 1.3 MP, USB3 | $2,550.00 | 4 in stock | View |
| LS-CMR-0188 | 1.3 MP, 1", USB3 | $2,600.00 | 5 in stock | View |
| LS-CMR-0189 | 1.3 MP, 1", USB3 | $2,600.00 | 5 in stock | View |
| LS-CMR-0190 | 1.3 MP, 1", USB3 | $2,600.00 | 5 in stock | View |
| LS-CMR-0199 | 8.1 MP, 2/3", USB3 | $5,570.00 | 5 in stock | View |
| LS-CMR-0200 | 16.8 MP, 3.2", USB3 | $6,200.00 | 3 in stock | View |
| LS-CMR-0197 | 4.2 MP, 1.2", USB3 | $6,400.00 | 4 in stock | View |
| LS-CMR-0196 | 4.2 MP, 2.0", USB3 | $8,400.00 | 3 in stock | View |
| LS-CMR-0201 | 16.8 MP, 3.2", USB3 | $34,500.00 Quote | Ships in 3-4 weeks | View |
