0.5 MP UV USB3 area scan camera, Glux1605BSI, 1" rolling shutter, 60 fps
  • 0.5 MP UV USB3 area scan camera, Glux1605BSI, 1" rolling shutter, 60 fps
  • 0.5 MP UV USB3 area scan camera, Glux1605BSI, 1" rolling shutter, 60 fps
  • 0.5 MP UV USB3 area scan camera, Glux1605BSI, 1" rolling shutter, 60 fps

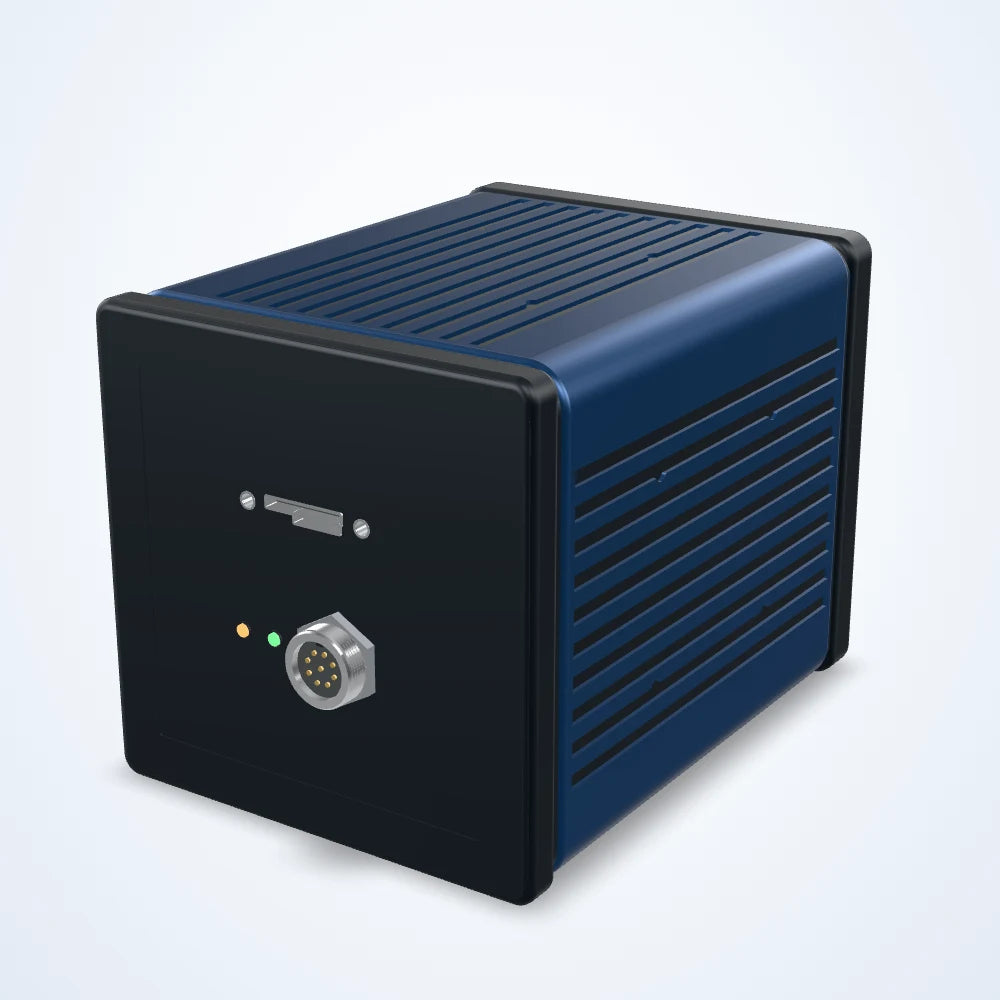

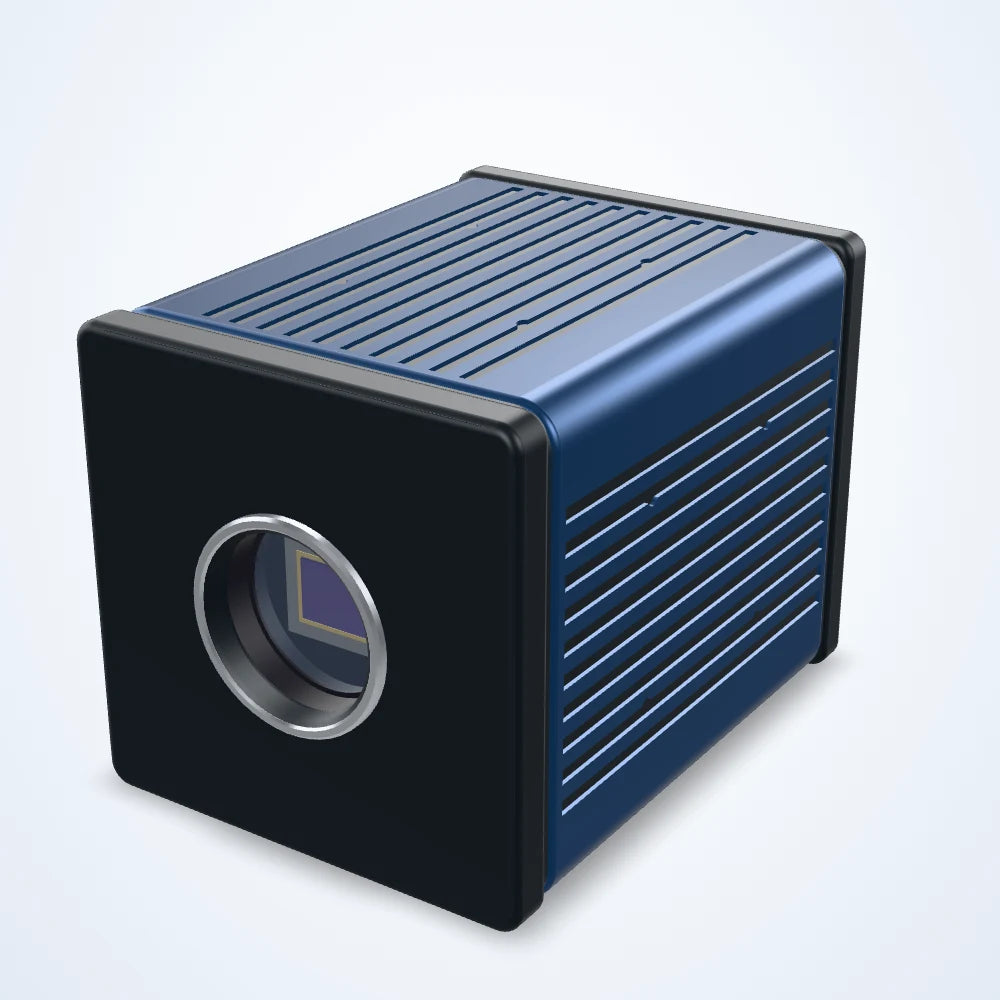

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

0.5 MP UV USB3 area scan camera, Glux1605BSI, 1" rolling shutter, 60 fps (LS-CMR-0187)

Model LS-CMR-0187

  • Resolution800×600
  • Sensor1"
  • InterfaceUSB 3.0
  • Speed60 fps
  • Lens mountC-mount
  • Pixel size16 μm / 16 μm
$2,520.00

Ships in 3-4 weeks

3.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.5 MP UV USB3 area scan camera, Glux1605BSI, 1" rolling shutter, 60 fps (LS-CMR-0187)LS-CMR-0187

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.5 MP area scan camera for inspection, measurement and guidance on the production line. Glux1605BSI sensor (1"); 800 x 600 pixels of 16 μm; up to 60 frames per second; rolling shutter; USB3 interface; C-mount lens mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0187
Quantum efficiency91%@550 / 95%@560

Sensor and imaging

Sensor modelGLUX1605BSI
Resolution800×600
Max. frame rate60 fps
Sensor size1"
Pixel size16 μm / 16 μm
Dynamic range84.72 dB / 84.72 dB
Exposure time27 us~60s
ShutterRolling
Sensor makeGPixel
Sensor typeCMOS
Pixel bit depth8 bit/HDR16 bit

Interfaces and I/O

Data interfaceUSB 3.0
Digital I/O1 input(opto-isolated), 1 output(opto-isolated), 2 bi-directional custom non-isolated I/O

Light

Color TypeUV

Environment and compliance

Operating temperature-10 - 50°C(Operating), -30 - 70°C(Storage)

Computing

Operating systemWindows, Linux

Electrical

Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run
Power supplyUSB3.0 / DC12 V

Mechanical

Lens mountC

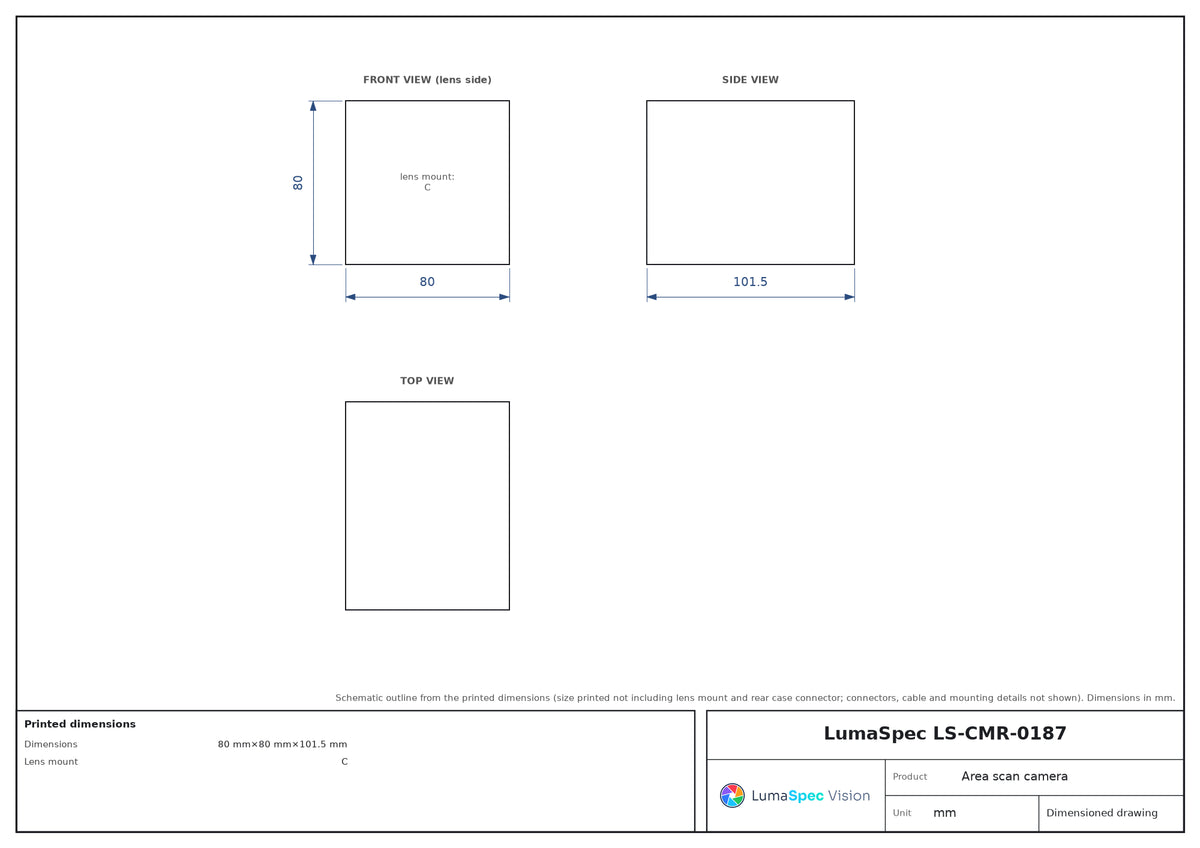

Dimensions80 mm×80 mm×101.5 mm(not including lens mount and rear case connector)
Weight860g
