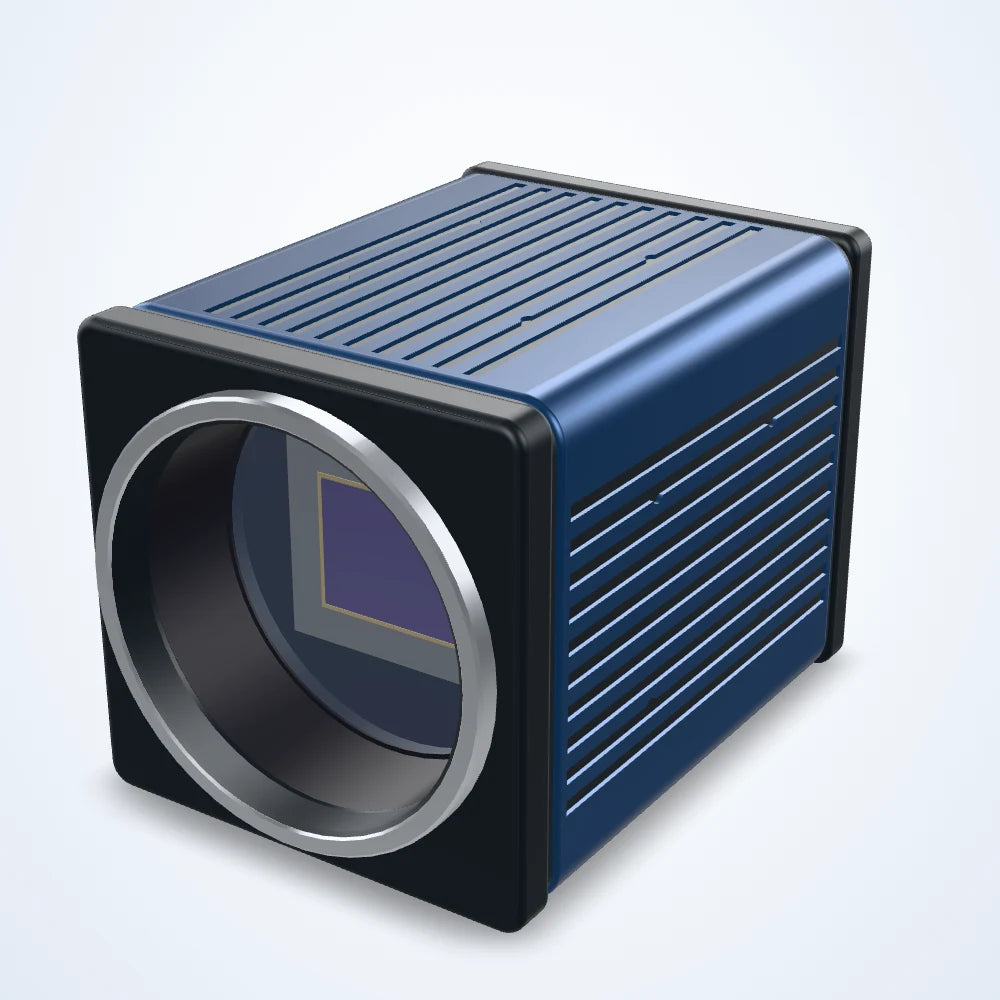

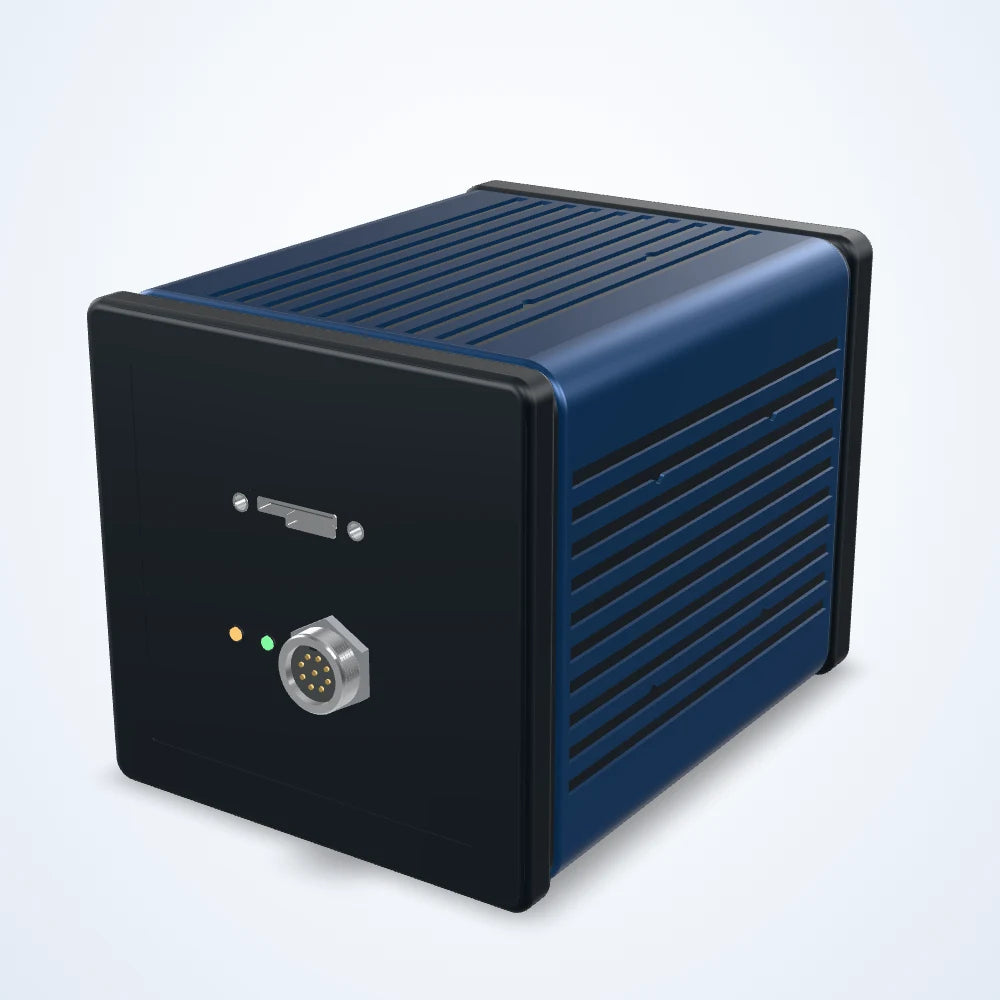

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
16.8 MP UV USB3 area scan camera, Gsense4040BSI, 3.2" rolling shutter, 20 fps, M54, Deep Cooling (LS-CMR-0200)
Model LS-CMR-0200
- Resolution4096×4096
- Sensor3.2"
- InterfaceUSB3.0/ CameraLink
- Speed20/23 fps
- Lens mountM54
- Pixel size9 μm
$6,200.00
Ships in 3-4 weeks
3.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16.8 MP area scan camera for inspection, measurement and guidance on the production line. Gsense4040BSI sensor (3.2"); 4096 x 4096 pixels of 9 μm; up to 20 frames per second; rolling shutter; USB3 interface; M54 lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0200 |
|---|---|
| Quantum efficiency | 90%@550 |
Sensor and imaging
| Sensor model | GSENSE4040BSI |
|---|---|
| Resolution | 4096×4096 |
| Max. frame rate | 20/23 fps |
| Sensor size | 3.2" |
| Pixel size | 9 μm |
| Exposure time | 12 us~1h |
| Shutter | Rolling |
| Sensor make | GPixel |
| Sensor type | CMOS |
| Dynamic range | 82.5 dB |
| Pixel bit depth | 8/12/16 bit |
Interfaces and I/O
| Data interface | USB3.0/ CameraLink |
|---|---|
| Digital I/O | 1 input(opto-isolated), 1 output(opto-isolated), 2 bi-directional custom non-isolated I/O |
Light
| Color Type | UV |
|---|
Environment and compliance
| Operating temperature | -30- 45°C(Operating), -40 - 60°C(Storage) |
|---|
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | DC19 V |
Mechanical
| Lens mount | M54 |
|---|---|

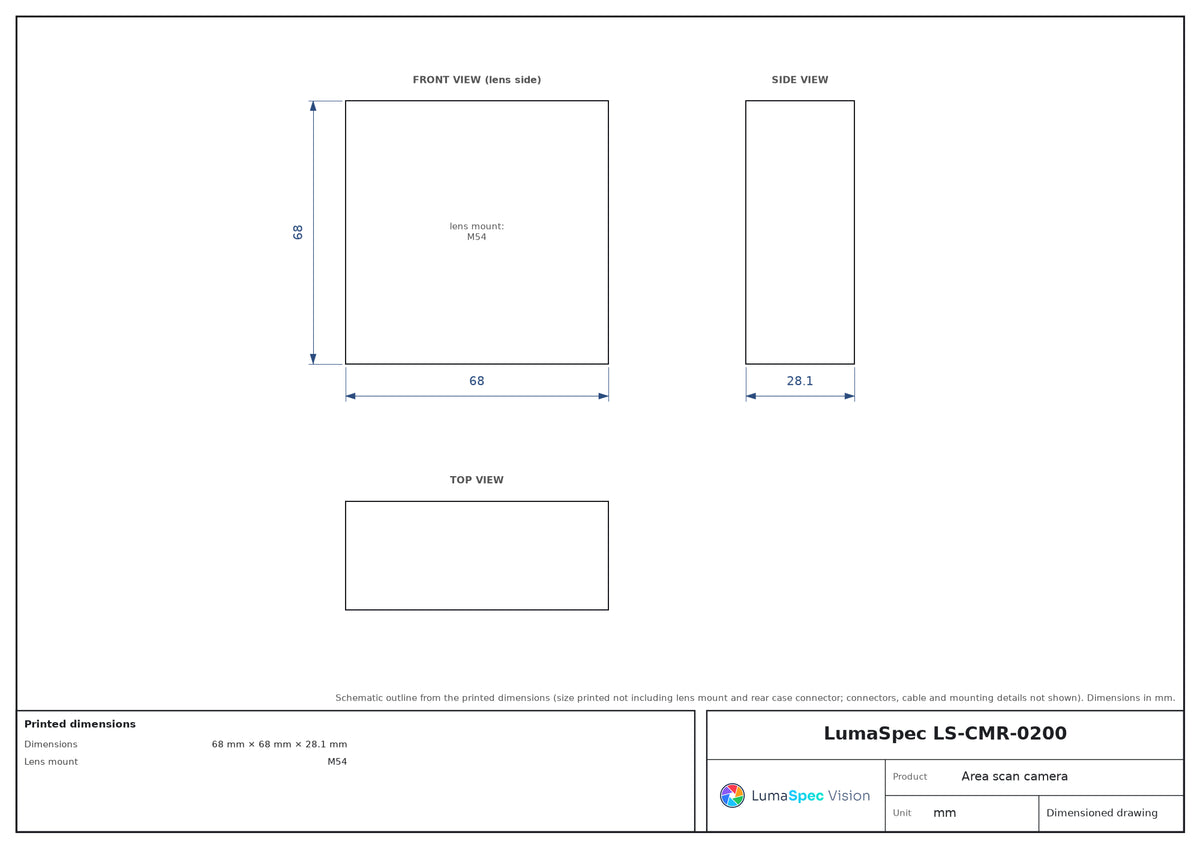

| Dimensions | 68 mm × 68 mm × 28.1 mm(not including lens mount and rear case connector) |
| Weight | 1317g |
