Area scan cameras

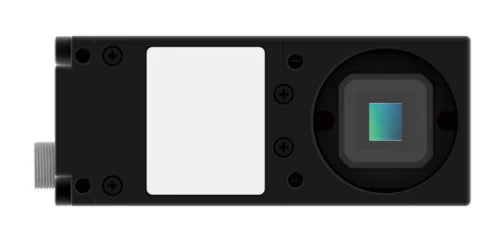

90° angle industrial camera (LS-CMR-S21)
- 3 models
- from $329.00
- Series LS-CMR-S21
The 90° angle industrial camera (LS-CMR-S21) is a range of 3 area scan cameras from LumaSpec Vision, from $329.00. It comes in 2 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- GigE, USB3
- Interface
- USB3, GigE
- Lens mount
- C-mount
Features
- Vertical height only 29mm
- Same performance and parameters as the standard camera, only the structure changed
- No difference in camera software and SDK
- Model suffix -90 means 90 degree angle camera
- Available for LS-CMR-0328-0330, LS-CMR-S27, LS-CMR-S25, LS-CMR-S22 and LS-CMR-S28 series
Typical uses
- Equipment installation with limited space
All 3 models in the 90° angle industrial camera (LS-CMR-S21)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CMR-0329 | GigE | GigE (network connector) | 39.5 x 29 | 67.75 | $329.00 | View |
| LS-CMR-0328 | USB3 | USB3.0 | 29 x 29 | 60.45 | $439.00 | View |
| LS-CMR-0330 | USB3 | USB3.0 | 39.5 x 29 | 60.45 | $439.00 | View |
