90° angle industrial camera, GigE (LS-CMR-0329)

Model LS-CMR-0329

InterfaceGigE (network connector)
Lens mountC-mount
Height29 mm
Body length67.75 mm

$329.00

Ships in 2-3 weeks

0.59 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Standard camera series in a 90 degree angle structure: horizontal installation greatly shortens the vertical space above the sensor surface, with a vertical height of only 29mm. Performance, parameters, software and SDK are the same as the standard camera; the suffix -90 in the model means 90 degree angle camera.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0329
Body cross-section W x H (mm)	39.5 x 29

Interfaces and I/O

Connectors	Network connector; power and trigger connector
Interface	GigE (network connector)

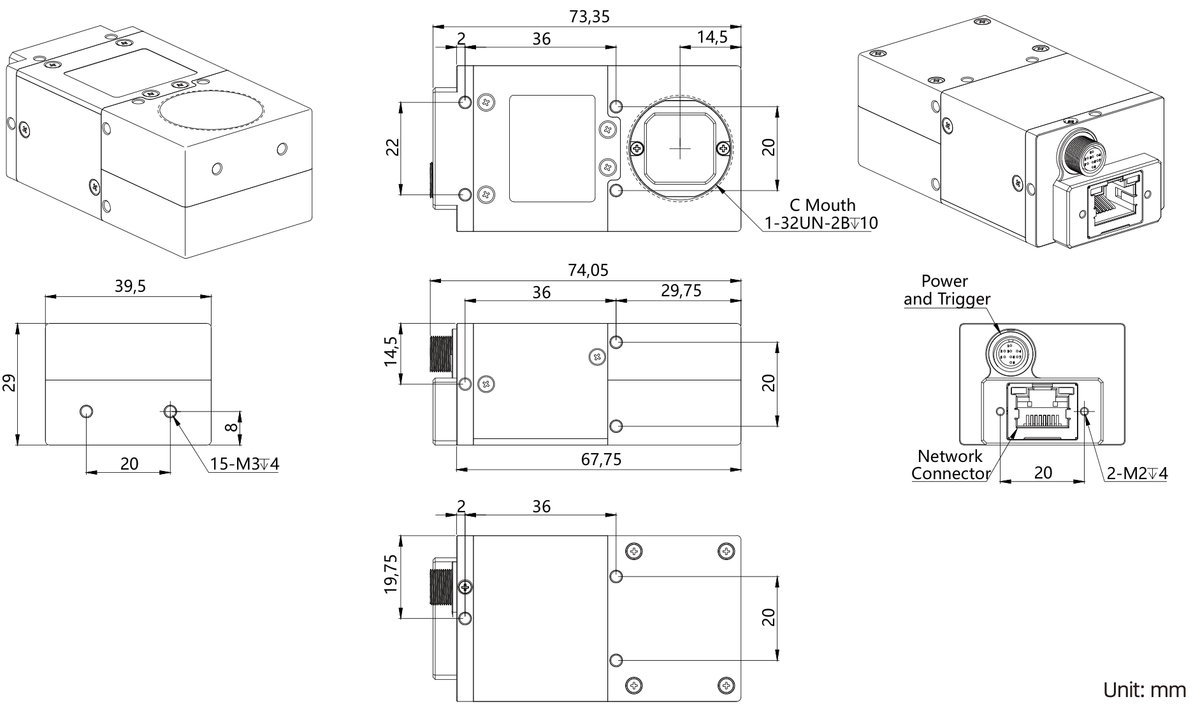

Mechanical

Height (mm)	29
Lens mount	C-Mount
Body length (mm)	67.75
Overall length (mm)	73.35 / 74.05 (two views of the drawing, marked note 1)
Mounting holes	15-M3 depth 4 (side); 2-M2 depth 4 (rear)
Shipping weight	0.59 kg

Other models in the 90° angle industrial camera (LS-CMR-S21) series

See all 3 models

Model	Size / key data	Price	Availability	Link
LS-CMR-0328	USB3	$439.00	Ships in 2-3 weeks	View
LS-CMR-0330	USB3	$439.00	Ships in 2-3 weeks	View
