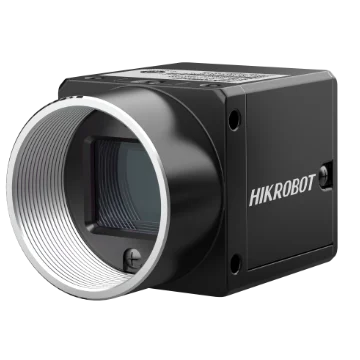

CS Series USB3.0 Area Scan Cameras

Area scan cameras

CS Series USB3.0 Area Scan Cameras

  • 50 models
  • from $349.00
  • Series HIK-CS-USB

The CS Series USB3.0 Area Scan Cameras is a range of 50 area scan cameras from Hikrobot, from $349.00. It comes in 29 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 50 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.4 MP, 1/2.9", USB3, Color, 0.4 MP, 1/2.9", USB3, Mono, 1", USB3, Color, 1.3 MP, 1/2.7", USB3, Mono, 1.6 MP, 1/2.9", USB3, Color, 1.6 MP, 1/2.9", USB3, Mono, 1.6 MP, USB3, Color, 1.6 MP, USB3, Mono, 2 MP, 1/1.7", USB3, Color, 2 MP, 1/1.7", USB3, Mono, 2 MP, 1/2.53", USB3, Color, 2 MP, 1/2.53", USB3, Mono, 2.3 MP, 1/1.2", USB3, Color, 2.3 MP, 1/1.2", USB3, Mono, 2.8 MP, 2/3", USB3, Mono, 4.2 MP, 1", USB3, Color and 13 more
Interface
USB3
Resolution
Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP
Shutter
Global, Rolling
Colour
Color, Mono
Lens mount
C-mount
Sensor format
1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3", 1/1.2", 1", 1.1" - 1.2"

Features

  • Adopts brand new design to reduce power consumption.
  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Adopts Sony® IMX178 sensor to provide high sensitivity, wide dynamic range, and low noise.
  • Supports image compression mode and noise reduction function.
  • Adopts active alignment techniques for assembling.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
  • Supports sequencer, contrast ratio, white balance, Gamma correction, etc.
  • Supports hardware trigger, software trigger, free run, etc.

All 50 models in the CS Series USB3.0 Area Scan Cameras

Link
MV-CS060-10UM-PRO6.3 MP, 1/1.8", USB3, Mono3072 × 20481/1.8"CMOS, rolling shutter$349.00View
MV-CS060-10UC-PRO6.3 MP, 1/1.8", USB3, Mono3072 × 20481/1.8"CMOS, rolling shutter$349.00View
MV-CS004-10UM0.4 MP, 1/2.9", USB3, Mono720 × 5401/2.9"CMOS, global shutter$409.00View
MV-CS004-10UM V50.4 MP, 1/2.9", USB3, Mono720 × 5401/2.9"CMOS, global shutter$409.00View
MV-CS004-10UC0.4 MP, 1/2.9", USB3, Color720 × 5401/2.9"CMOS, global shutter$409.00View
MV-CS004-10UC V50.4 MP, 1/2.9", USB3, Color720 × 5401/2.9"CMOS, global shutter$409.00View
MV-CS016-10UM1.6 MP, 1/2.9", USB3, Mono1440 × 10801/2.9"CMOS, global shutter$409.00View
MV-CS016-10UM V51.6 MP, 1/2.9", USB3, Mono1440 × 10801/2.9"CMOS, global shutter$409.00View
MV-CS016-10UC1.6 MP, 1/2.9", USB3, Color1440 × 10801/2.9"CMOS, global shutter$409.00View
MV-CS016-10UC V51.6 MP, 1/2.9", USB3, Color1440 × 10801/2.9"CMOS, global shutter$409.00View
MV-CS013-80UM1.3 MP, 1/2.7", USB3, Mono1280 × 10241/2.7"CMOS, global shutter$439.00View
MV-CS013-80UC1.3 MP, 1/2.7", USB3, Mono1280 × 10241/2.7"CMOS, global shutter$439.00View
XXV-016C-XIU1.6 MP, USB3, Color1440 × 10801/2.9”CMOS, global shutter$479.00View
XXV-016M-XIU1.6 MP, USB3, Mono1440 × 10801/2.9”CMOS, global shutter$479.00View
MV-CS050-60UM5 MP, 2/3", USB3, Mono2448 × 20482/3"CMOS, global shutter$529.00View
MV-CS050-60UM V55 MP, 2/3", USB3, Mono2448 × 20482/3"CMOS, global shutter$529.00View
MV-CS050-60UC5 MP, 2/3", USB3, Color2448 × 20482/3"CMOS, global shutter$529.00View
MV-CS050-60UC V55 MP, 2/3", USB3, Mono2448 × 20482/3"CMOS, global shutter$529.00View
MV-CS020-60UM V52 MP, 1/2.53", USB3, Mono1624 × 12401/2.53"CMOS, global shutter$549.00View
MV-CS020-60UC V52 MP, 1/2.53", USB3, Color1624 × 12401/2.53"CMOS, global shutter$549.00View
MV-CS023-10UM2.3 MP, 1/1.2", USB3, Mono1920 × 12001/1.2"CMOS, global shutter$589.00View
MV-CS023-10UC2.3 MP, 1/1.2", USB3, Color1920 × 12001/1.2"CMOS, global shutter$589.00View
MV-CS020-10UM2 MP, 1/1.7", USB3, Mono1624 × 12401/1.7"CMOS, global shutter$629.00View
MV-CS020-10UC2 MP, 1/1.7", USB3, Color1624 × 12401/1.7"CMOS, global shutter$629.00View
MVAC-PY-FV373-D3XF1", USB3, Color4 Megapixel1"CMOS, global shutter$629.00View
MV-CS200-10UM20 MP, 1", USB3, Mono5472 × 36481"CMOS, rolling shutter$759.00View
MV-CS200-10UM V520 MP, 1", USB3, Mono5472 × 36481"CMOS, rolling shutter$759.00View
MV-CS200-10UC20 MP, 1", USB3, Color5472 × 36481"CMOS, rolling shutter$759.00View
MV-CS200-10UC V520 MP, 1", USB3, Color5472 × 36481"CMOS, rolling shutter$759.00View
MV-CS028-10UM2.8 MP, 2/3", USB3, Mono1936 × 14642/3"CMOS, global shutter$859.00View
MV-CS050-10UM5 MP, 2/3", USB3, Mono2448 × 20482/3"CMOS, global shutter$859.00View
MV-CS050-10UC5 MP, 2/3", USB3, Color2448 × 20482/3"CMOS, global shutter$859.00View
MV-CS050-10UM V55 MP, 2/3", USB3, Mono2448 × 20482/3"CMOS, global shutter$859.00View
MV-CS050-10UC V55 MP, 2/3", USB3, Color2448 × 20482/3"CMOS, global shutter$859.00View
MV-CS050-80UM5 MP, 2/3", USB3, Mono2448 × 20482/3"CMOS, global shutter$859.00View
MV-CS050-80UC5 MP, 2/3", USB3, Color2448 × 20482/3"CMOS, global shutter$859.00View
MV-CS060-10UM6.3 MP, 1/1.8", USB3, Mono3072 × 20481/1.8"CMOS, rolling shutter$969.00View
MV-CS060-10UC6.3 MP, 1/1.8", USB3, Color3072 × 20481/1.8"CMOS, rolling shutter$969.00View
MV-CS120-10UM12.2 MP, 1/1.7", USB3, Mono4024 × 30361/1.7"CMOS, rolling shutter$1,349.00View
MV-CS120-10UC12.2 MP, 1/1.7", USB3, Color4024 × 30361/1.7"CMOS, rolling shutter$1,349.00View
MV-CS120-60UM V512.4 MP, 1/1.56", USB3, Mono4096 × 30241/1.56"CMOS, rolling shutter$1,349.00View
MV-CS120-60UC V512.4 MP, 1/1.56", USB3, Color4096 × 30241/1.56"CMOS, rolling shutter$1,349.00View
MV-CS040-A0UM4.2 MP, 1", USB3, Mono2048 × 20481"CMOS, global shutter$1,359.00View
MV-CS040-A0UC4.2 MP, 1", USB3, Color2048 × 20481"CMOS, global shutter$1,359.00View
MV-CS200-RC20 MP, 1", USB3, Color5472 × 36481"CMOS, rolling shutter$1,629.00View
XAS2000-19UM20 MP, 1", USB3, Mono5472 × 36481"CMOS, rolling shutter$1,629.00View
MV-XD0200-10UM V520 MP, 1", USB3, Mono5472 × 36481"CMOS, rolling shutter$1,629.00View
MV-XD0200-10UC V520 MP, 1", USB3, Mono5472 × 36481"CMOS, rolling shutter$1,629.00View
MV-CS240-90UC24.6 MP, USB3, Color6016 × 40961.1”CMOS, rolling shutter$1,629.00View
MV-CS240-90UM24.6 MP, USB3, Mono6016 × 40961.1”CMOS, rolling shutter$1,629.00View
