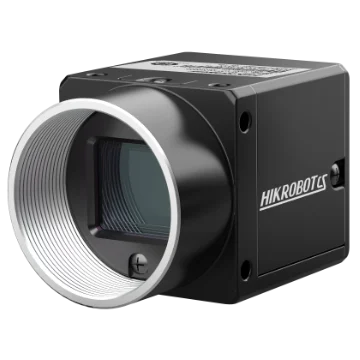

Hikrobot MV-CS060-10UM 6MP Area Scan Camera, USB3.0, IMX178, Mono

Area scan cameras

Hikrobot MV-CS120-10UC 12MP Area Scan Camera, USB3.0, Color

Model MV-CS120-10UCHikrobot

Resolution4024 × 3036
SensorCMOS, rolling shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed29.4 fps @ 4024 × 3036 Bayer RG 8
Lens mountC-mount
Mono / colourColor

$1,349.00

Ships in 2-3 weeks

0.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CS120-10UC 12MP Area Scan Camera, USB3.0, Color. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment for gain, exposure time, white balance, LUT, and Gamma correction.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CS120-10UC
Brand	Hikrobot
Compatibility	USB3 Vision, GenICam

Sensor and imaging

Sensor type	CMOS, rolling shutter
Sensor model	Sony® IMX226
Pixel size	1.85 μm × 1.85 μm
Sensor size	1/1.7"
Resolution	4024 × 3036
Max. frame rate	29.4 fps @ 4024 × 3036 Bayer RG 8
Dynamic range	70.5 dB
SNR	40.5 dB
Gain	0 dB to 24 dB
Exposure time	12 μs to 1 sec
Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset and Rolling
Mono/color	Color
Pixel format	Mono 8; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports USB 3.0 power supply
Power consumption	Typ. 1.5 W @ 5 VDC (USB 3.0 provides power supply)

Mechanical

Lens mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 80 g (0.2 lb.)
Shipping weight (estimated)	0.21 kg

Downloads

Features

Adopts brand new design to reduce power consumption.
Supports auto or manual adjustment for gain, exposure time, white balance, LUT, and Gamma correction.
Compact design with mounting holes on panels for flexible mounting from 4 sides.
Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
