Hikrobot MV-CS200-10UC V5 20MP Area Scan Camera, USB3.0, IMX183, Color
  • Hikrobot MV-CS200-10UC V5 20MP Area Scan Camera, USB3.0, IMX183, Color
  • MV-CS200-10UC V5 dimensions (mm)

Area scan cameras

Hikrobot MV-CS200-10UC V5 20MP Area Scan Camera, USB3.0, IMX183, Color

Model MV-CS200-10UC V5Hikrobot

  • Resolution5472 × 3648
  • SensorCMOS, rolling shutter
  • InterfaceUSB3.0, compatible with USB2.0
  • Speed19.2 fps @ 5472 × 3648 Bayer GB 8
  • Lens mountC-mount
  • Mono / colourColor
$759.00

Ships in 2-3 weeks

0.21 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable models:

Ask an engineerBrowse Area scan cameras

lumaspecvision.com/products/lumaspec-mv-cs200-10uc-v5

In the upper half of the 14 resolutions of this camera series, MV-CS200-10UC V5, the colour version, has a 5472 x 3648 (20 MP) sensor: about 1.6 times the resolution of the 4096 x 3024 (12 MP) version, for finer detail over the same field.

MV-CS200-10UC V5: resolution 5472 x 3648; sensor type CMOS, rolling shutter; sensor size 1"; dynamic range 65.5 dB; mono/color Color.

Hikrobot MV-CS200-10UC V5 20MP Area Scan Camera, USB3.0, IMX183, Color.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CS200-10UC V5
BrandHikrobot
CompatibilityUSB3 Vision, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Pixel size2.4 μm × 2.4 μm
Sensor size1"
Resolution5472 × 3648
Exposure time14 μs to 0.86 sec
Gain0 dB to 24 dB
Mono/colorColor
Max. frame rate19.2 fps @ 5472 × 3648 Bayer GB 8
Pixel formatMono 8; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Sensor modelSony® IMX183
Dynamic range65.5 dB
SNR41.5 dB
Exposure modeOff/Once/Continuous exposure mode, supports Rolling Shutter and Global Reset
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceUSB3.0, compatible with USB2.0
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2)
Client softwareMVS or third-party software meeting with USB3.0 Vision Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC, supports USB power supply
Power consumptionTyp. 1.7 W @ 5 VDC (USB3.0 provides power supply)

Mechanical

Dimension29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
WeightApprox. 80 g (0.18 lb.)
Lens mountC-mount
Shipping weight (estimated)0.21 kg

Engineering data

Field of view and resolution with the MV-CS200-10UC V5

Sensor area13.13 × 8.76 mm1" optical format
Lens image circle needed≥ Ø 15.8 mmC-mount
Pixel pitch2.4 µm5472 x 3648 px
Image data at max frame rate383 MB/sCalculated: 19.2 fps × 5472 × 3648 px at 8 bit · USB3 carries 625 MB/s nominal
With a 16 mm lens at 500 mm410 × 274 mm0.075 mm per pixel
Dynamic range65.5 dB
SNR41.5 dB
Power consumption1.7 Wtyp. at 5 V DC
ShutterRolling
Exposure range14 µs to 0.86 s
Weight80 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm492 × 328 mm0.09 mm per pixel821 × 548 mm0.15 mm per pixel1641 × 1095 mm0.3 mm per pixel
12 mm328 × 219 mm0.06 mm per pixel547 × 365 mm0.1 mm per pixel1094 × 730 mm0.2 mm per pixel
16 mm246 × 164 mm0.045 mm per pixel410 × 274 mm0.075 mm per pixel821 × 548 mm0.15 mm per pixel
25 mm158 × 105 mm0.029 mm per pixel263 × 175 mm0.048 mm per pixel525 × 350 mm0.096 mm per pixel
35 mm113 × 75.1 mm0.021 mm per pixel188 × 125 mm0.034 mm per pixel375 × 250 mm0.069 mm per pixel
50 mm78.8 × 52.6 mm0.014 mm per pixel131 × 87.6 mm0.024 mm per pixel263 × 175 mm0.048 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $1,308.00

Lenses for this C-mount camera

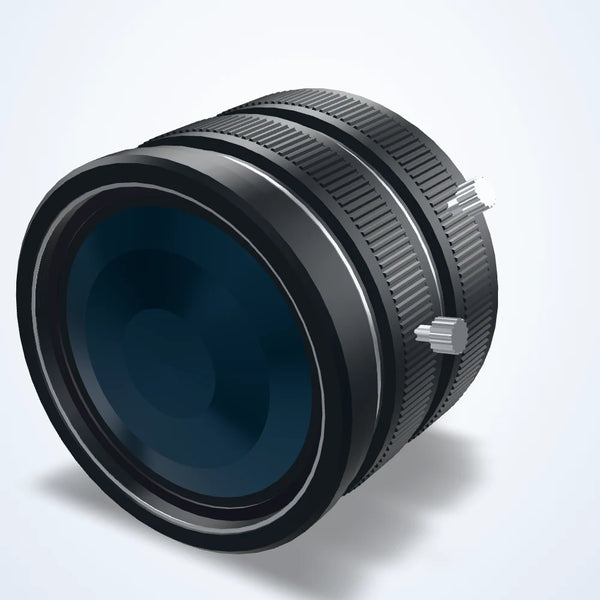

This camera's 15.8 mm sensor diagonal uses 99 % of the lens's 16 mm image circle

This camera's 15.8 mm sensor diagonal uses 99 % of the lens's 16 mm image circle

This camera's 15.8 mm sensor diagonal uses 99 % of the lens's 16 mm image circle

This camera's 15.8 mm sensor diagonal uses 95 % of the lens's 16.6 mm image circle

This camera's 15.8 mm sensor diagonal uses 95 % of the lens's 16.6 mm image circle

This camera's 15.8 mm sensor diagonal uses 90 % of the lens's 17.5 mm image circle

Before you buy

Questions about the MV-CS200-10UC V5

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the MV-CS200-10UC V5?

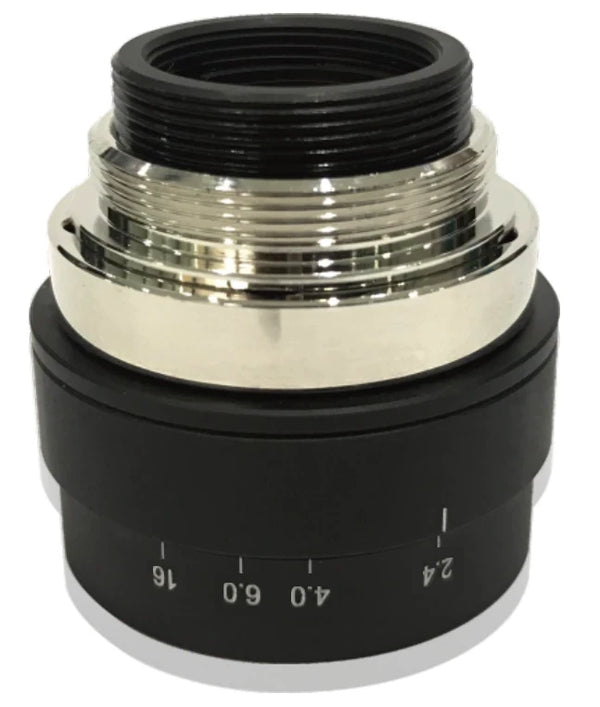

C-mount lenses whose image circle covers its sensor diagonal (about 15.8 mm): LS-FFL-1149 (75 mm), LS-FFL-1187 (3.3 mm), LS-FFL-0371 (12 mm) and LS-FFL-0399 (17 mm).

What data rate does the MV-CS200-10UC V5 need over USB3?

About 383 MB/s at its printed 19.2 fps at 5472 x 3648 (8 bits per pixel, calculated), about 61 % of the nominal 625 MB/s USB3 link.

How does the MV-CS200-10UC V5 connect?

Printed: Data interface: USB3.0, compatible with USB2.0.

What I/O does the MV-CS200-10UC V5 have?

Printed: Digital I/O: 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2).

What power supply does the MV-CS200-10UC V5 need?

Printed: Power supply: 9 VDC to 24 VDC, supports USB power supply; Power consumption: Typ. 1.7 W @ 5 VDC (USB3.0 provides power supply).

Other models in the CS Series USB3.0 Area Scan Camera series

See all 50 models

How this model compares

ModelResolutionSensorSpeedMono / colourExposure timePriceAvailabilityLink
MV-CS016-10UC V51440 x 1080CMOS, global shutter249.1 fps @ 1440 x 1080 Bayer RG 8Color$409.00 Ships in 2-3 weeks View
MV-CS020-60UC V51624 x 1240CMOS, global shutter180 fps @ 1624 x 1240 Bayer GB 8Color23 µs to 10 sec$549.00 Ships in 2-3 weeks View
MV-CS060-10UM-PRO3072 x 2048CMOS, rolling shutter59.6 fps @ 3072 x 2048Mono32 µs to 1 sec$349.00 Ships in 2-3 weeks View
MV-CS060-10UC-PRO3072 x 2048CMOS, rolling shutter59.6 fps @ 3072 x 2048Color32 µs to 1 sec$349.00 Ships in 2-3 weeks View
MV-CS120-60UM V54096 x 3024CMOS, rolling shutter26.8 fps @ 4096 x 3024 Mono 8Mono22 µs to 1.4 sec$1,349.00 Ships in 2-3 weeks View
MV-CS120-60UC V54096 x 3024CMOS, rolling shutter26.8 fps @ 4096 x 3024 Bayer BG 8Color22 µs to 1.4 sec$1,349.00 Ships in 2-3 weeks View
MV-CS200-10UM V55472 x 3648CMOS, rolling shutter19.2 fps @ 5472 x 3648 Mono 8Mono14 µs to 0.86 sec$759.00 Ships in 2-3 weeks View
MV-CS200-10UC5472 x 3648CMOS, rolling shutter19.2 fps @ 5472 x 3648 Bayer GB 8Color44 µs to 0.83 sec$759.00 Ships in 2-3 weeks View
MV-CS200-10UC V5This model5472 x 3648CMOS, rolling shutter19.2 fps @ 5472 x 3648 Bayer GB 8Color14 µs to 0.86 sec$759.00 Ships in 2-3 weeks
