Representative photo of this series
Machine vision lenses
1 inch high resolution 20 MP lens, 25 mm, 1", C-mount (LS-FFL-0400)
Model LS-FFL-0400
- Focal length25 mm
- Magnification0X-0.25X
- MountC-mount
- Sensor1"
- Working distance104-None
- Aperture2.4-11
$689.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
C-mount lenses for 1 inch sensors at 5-20 million pixels, with low distortion (< 0.5%), large light intake and a short working distance range design.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0400 |
|---|---|
| Format | 1" |
| Working temp. | -30 C to 50 C |
| WD range | 104mm-inf. |
Optics
| Image circle dia. (mm) | 16.6 |
|---|---|
| Magnification | 0X-0.25X |
| Focal length (mm) | 25 |
| Aperture range | 2.4-11 |
| Optical distortion | <0.5% |
| Working distance (mm) | 104-None |
Sensor and imaging
| Resolution (pixel) | 3.45 μm |
|---|---|
| Resolution | 20 MP |
| Sensor format | 1" |

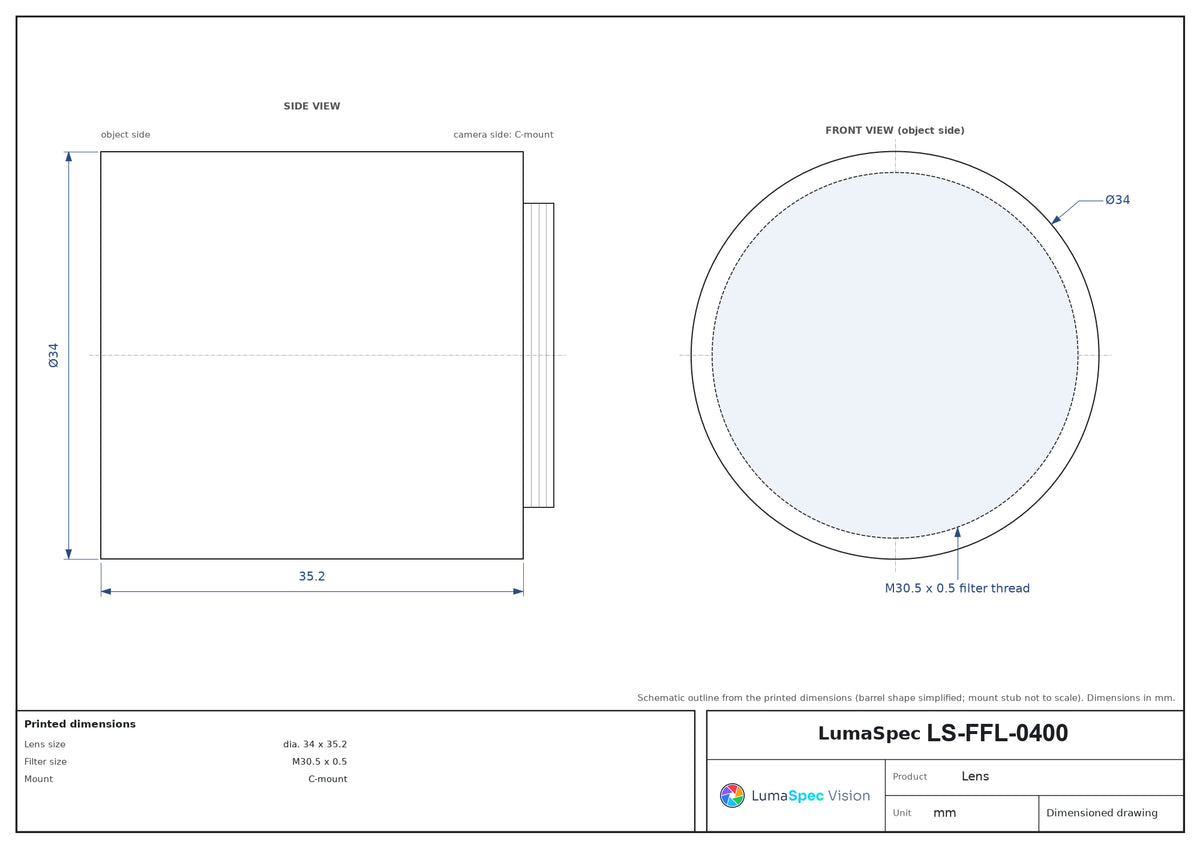

Mechanical
| Mount | C-mount |
|---|---|
| Filter size | M30.5 x 0.5 |
| Lens size | dia. 34 x 35.2 |
| Weight | 70g |
Other models in the 1 inch high resolution 20 MP lens (LS-FFL-S74) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0399 | 17 mm, 1", C-mount | $679.00 | Ships in 2-3 weeks | View |
