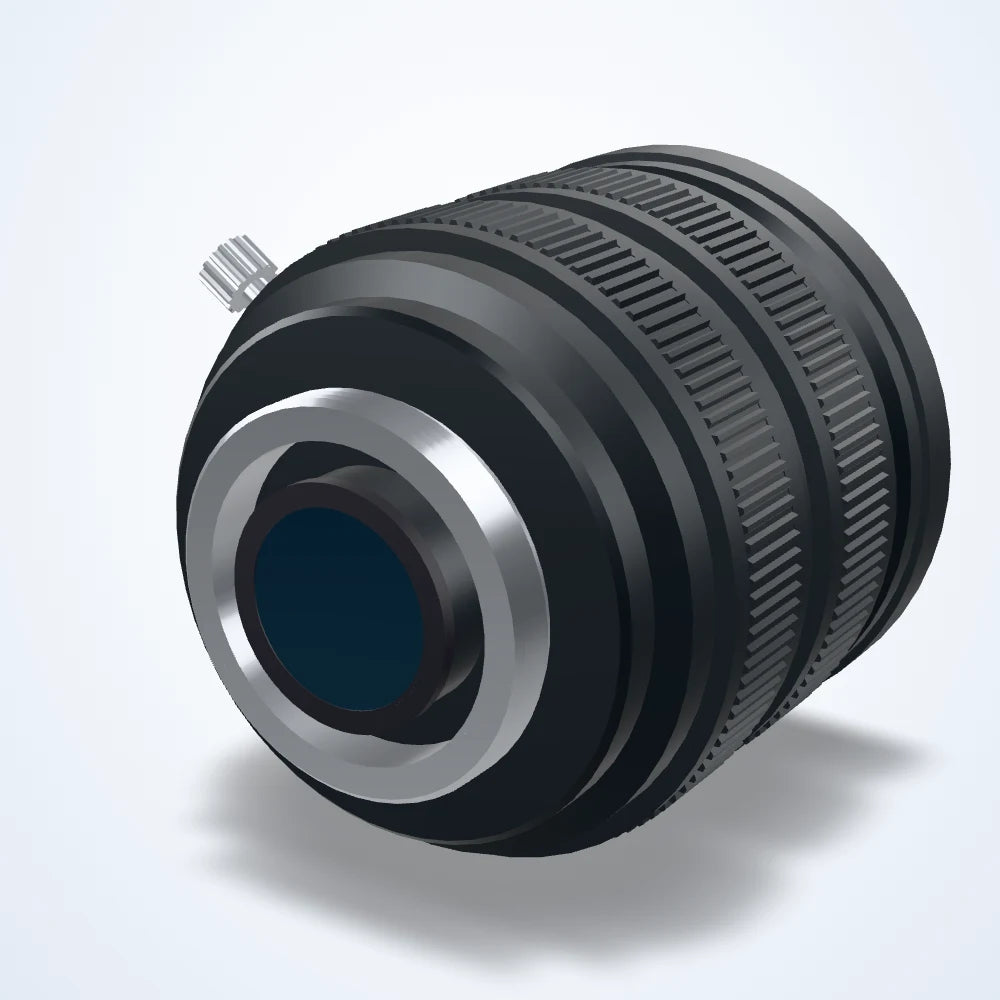

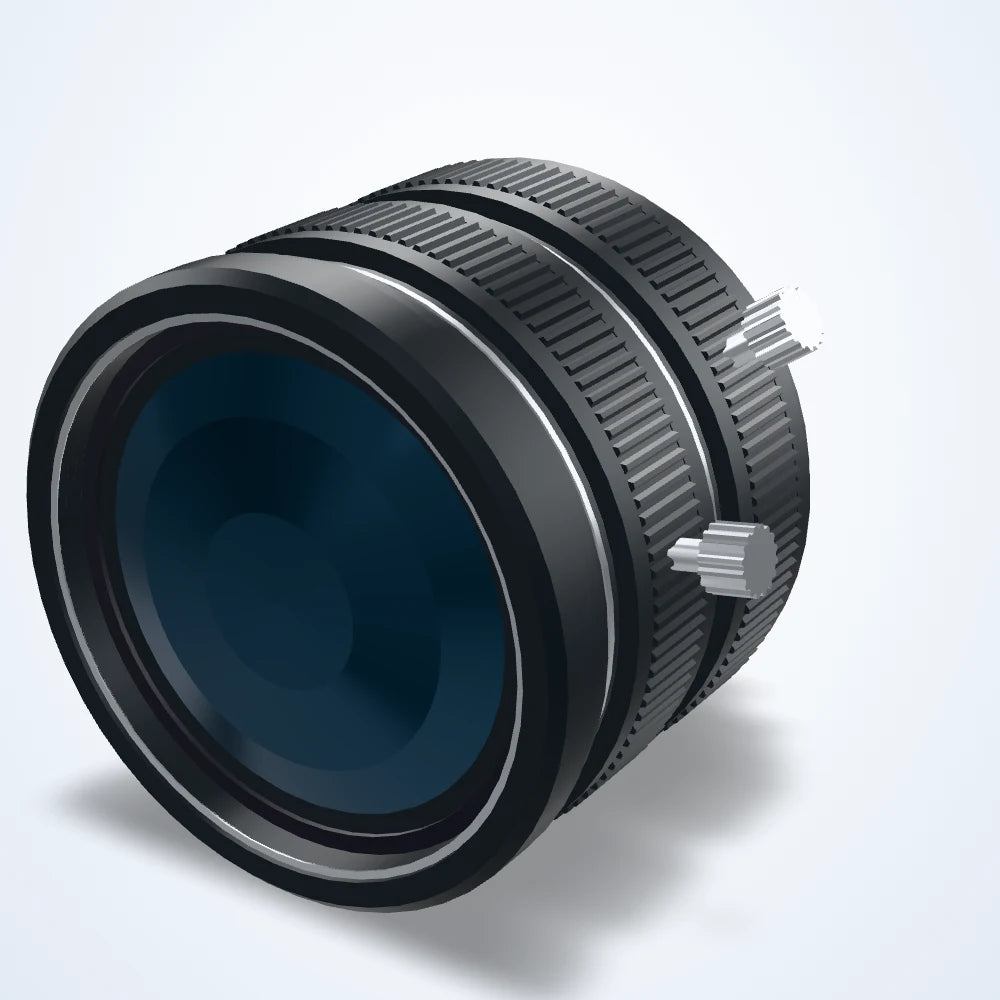

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
3.3 mm fisheye lens, 1", F2.4, C-mount (LS-FFL-1187)
Model LS-FFL-1187
- Focal length3.3 mm
- MountC-mount
- Sensor1"
- Working distance0.1m~ ∞
- ApertureF2.4
- Field of view190° x 190° x /°
$855.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
3.3 mm fisheye lens for machine-vision cameras. Focal length 3.3 mm; covers sensors up to 1"; aperture F2.4; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1187 |
|---|---|
| Angle of view | 190° x 190° x /° |
Optics
| Focal length | 3.3 mm |
|---|---|
| Aperture | F2.4 |
| Working distance | 0.1m~ ∞ |
| Field of view | 190° x 190° x /° |
| Distortion | 0%-F- ∞ |
| Focus | Manual |
Sensor and imaging
| Sensor format | 1" |
|---|
Environment and compliance
| Operating temperature | -25~+85° C |
|---|
Mechanical
| Mount | C-Mount |
|---|---|
| Flange back length | 4.90 mm |

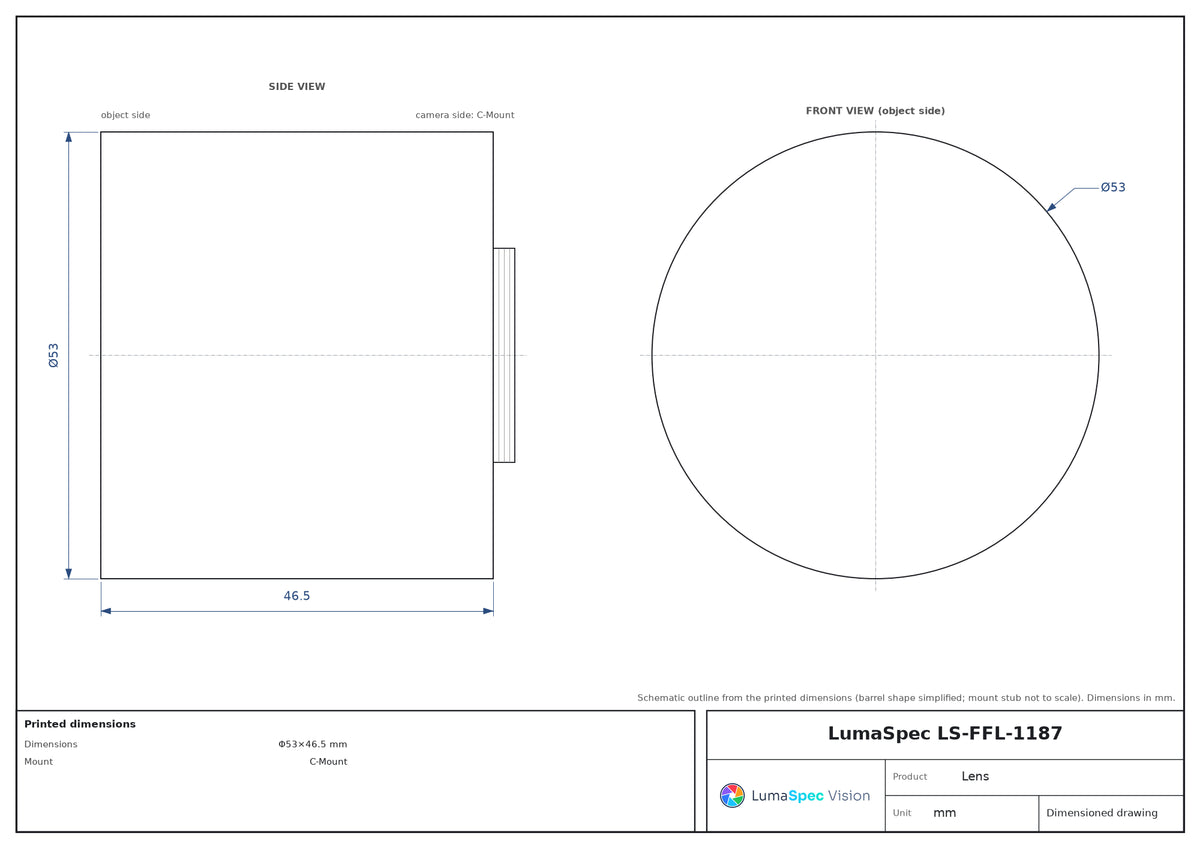

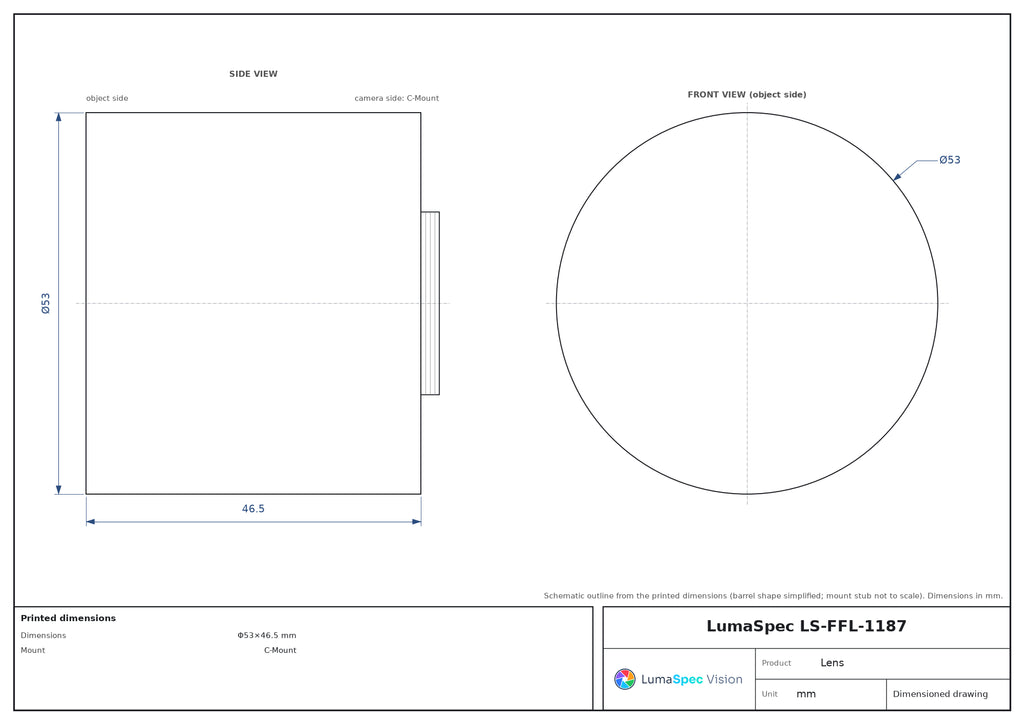

| Dimensions | Φ53×46.5 mm |
| Weight | 145g |
LS-FFL-1187
See this component from every angle.
Representative component form. Housing dimensions or proportions are inferred from comparable components; this is not a dimensioned product model. Use the printed specifications and drawing.
Concept illustration
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 3.3 mm
- Sensor format
- 1"
- Mount
- C-Mount
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
