Machine vision lenses
50 mm, 1.1", 20 MP, C-mount Machine Vision Lens, 50mm, 1.1" (pixel 2.74 µm), 20 Megapixel (LS-FFL-0560)
Model LS-FFL-0560
- Focal length50mm
- MountC-mount
- Sensor1.1"
- ApertureF2.4-16 Manual iris
- Resolution20 Megapixel
$739.00
Ships in 2-3 weeks
0.46 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
50 mm, 1.1", 20 MP, C-mount Machine Vision Lens. 50 mm F2.4-16 machine vision (FA) lens for 1.1" 20 megapixel sensors (2.74 µm, 17.5 mm image circle), covering 8K and 4K cameras, low distortion (<0.0114% TV / 0.051% optical). At a glance: focal length 50mm; format 1.1" (pixel 2.74 µm); resolution 20 Megapixel; aperture F2.4-16 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0560 |
|---|---|
| Format | 1.1" (pixel 2.74 µm) |
| Angle of view (1.1") | 18.7 x 15.1 x 11.2 |
| CRA | 6.42° |
| Notes | AT430~680nm T≥85%; 11G Element |
Optics
| Focal length | 50mm |
|---|---|
| Image circle (max) | dia. 17.5mm |
| Aperture | F2.4-16 Manual iris |
| M.O.D. | 0.25m |
| Relative illumination | 83.9% ( WD=500mm F2.4 ) |
| Distortion | 0.0114% ( TV ) ; 0.051% (Optical ) |
| Back focal length (optical) | 20.64mm , WD=1000mm |
Sensor and imaging
| Resolution | 20 Megapixel |
|---|
Mechanical

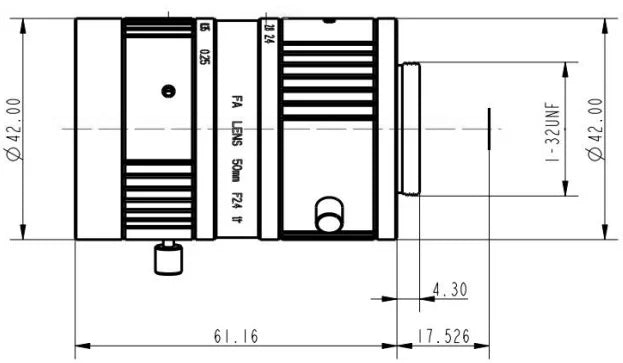

| Size | dia. 42 x 61.16mm |
|---|---|
| Filter size | M42.5 x P0.5-7H |
| Mount | C |
| Weight | 260g |
| Shipping weight (estimated) | 0.46 kg |
