1.1" machine vision lenses
  • 1.1" machine vision lenses

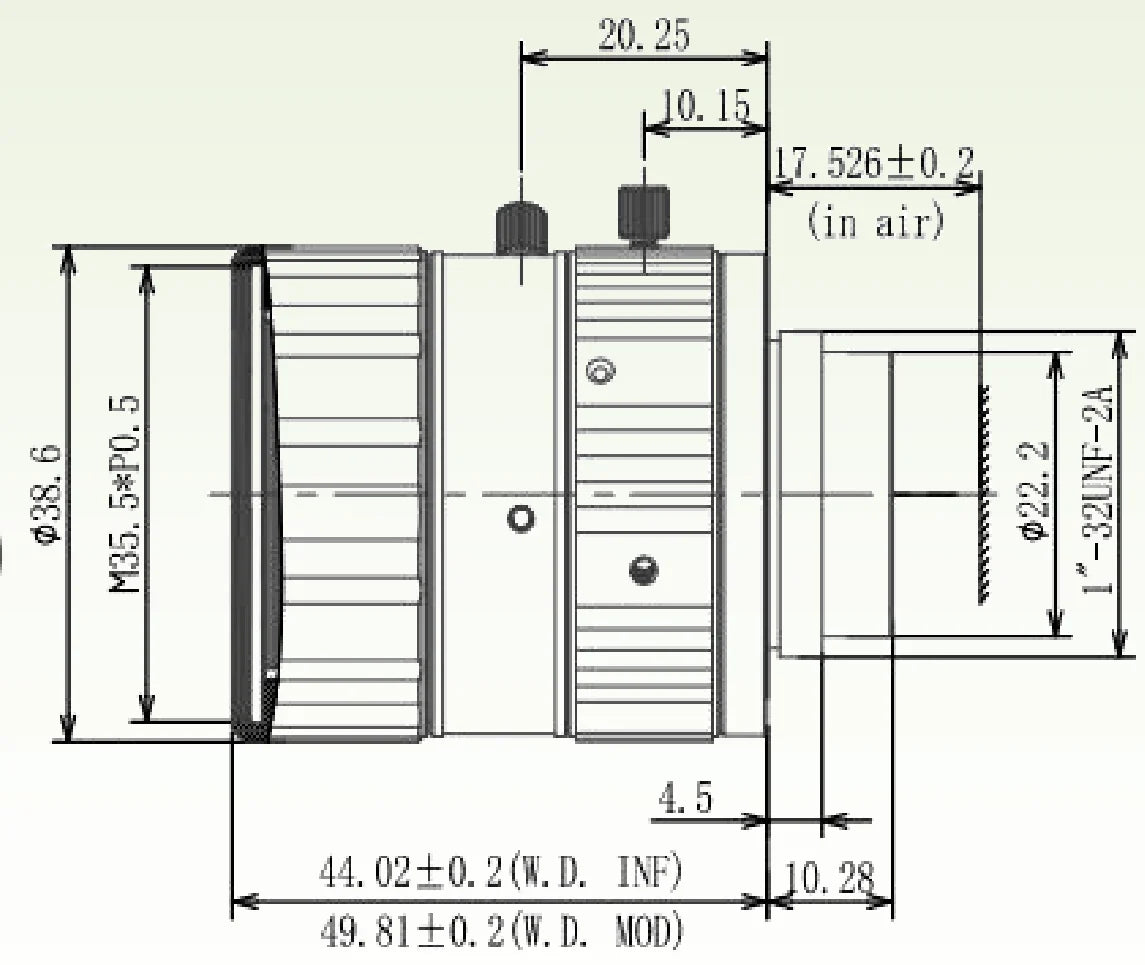

  • LS-FFL-0552 dimensions (mm)

Machine vision lenses

25 mm, 1.1", 20 MP, C-mount Machine Vision Lens, 20 Megapixel, F2.8 Manual iris (LS-FFL-0552)

Model LS-FFL-0552

  • Focal length25 mm
  • MountC-mount
  • Sensor1.1"
  • ApertureF2.8 Manual iris
  • Resolution20 Megapixel
$689.00

Ships in 2-3 weeks

0.34 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

25 mm, 1.1", 20 MP, C-mount Machine Vision Lens, 20 Megapixel, F2.8 Manual iris (LS-FFL-0552)LS-FFL-0552

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

25 mm, 1.1", 20 MP, C-mount Machine Vision Lens. 25 mm F2.8 manual-iris machine vision (FA) lens for 1.1" sensors, rated 20 megapixel (8K and 4K), with <0.2% distortion. Covers 1.1", 3/4", 2/3", 1/1.8" and 1/2" cameras for automation, 3D and AOI. At a glance: focal length 25 mm; format 1.1"; resolution 20 Megapixel; aperture F2.8 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0552
Format1.1"
Angle of view (1.1")37.3 x 30.4 x 23 deg
Angle of view (1")34 x 27 x 21.5 deg
Angle of view (2/3")23.9 x 18.5 x 15.5 deg
B.F.L.9.4 mm

Optics

Focal length25 mm
Max image circledia. 17.6 mm
ApertureF2.8 Manual iris
M.O.D.0.15 m
Distortion<0.2%

Sensor and imaging

Resolution20 Megapixel

Mechanical

Sizedia. 38.6 x 44.02 mm
Filter sizeM35.5 x P0.5
MountC
Weight175 g
Shipping weight (estimated)0.34 kg
