12 mm, 1.1", 20 MP, C-mount Machine Vision Lens, 20 Megapixel, F2.8 Manual iris (LS-FFL-0543)
Model LS-FFL-0543
- Focal length12 mm
- MountC-mount
- Sensor1.1"
- ApertureF2.8 Manual iris
- Resolution20 Megapixel
$669.00
Ships in 2-3 weeks
0.34 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12 mm, 1.1", 20 MP, C-mount Machine Vision Lens. 12 mm F2.8 manual-iris machine vision (FA) lens for 1.1" sensors, rated 20 megapixel (8K and 4K), with <0.33% distortion. Covers 1.1", 3/4", 2/3", 1/1.8" and 1/2" cameras for automation, 3D and AOI. At a glance: focal length 12 mm; format 1.1"; resolution 20 Megapixel; aperture F2.8 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0543 |
|---|---|
| Format | 1.1" |
| Angle of view (1.1") | 70.5 x 59.8 x 46.2 deg |
| Angle of view (1") | 65.7 x 53.5 x 43.3 deg |
| Angle of view (2/3") | 48.3 x 37.8 x 32.1 deg |
| B.F.L. | 11.5 mm |
Optics
| Focal length | 12 mm |
|---|---|
| Max image circle | dia. 17.6 mm |
| Aperture | F2.8 Manual iris |
| M.O.D. | 0.1 m |
| Distortion | <0.33% |
Sensor and imaging
| Resolution | 20 Megapixel |
|---|
Mechanical

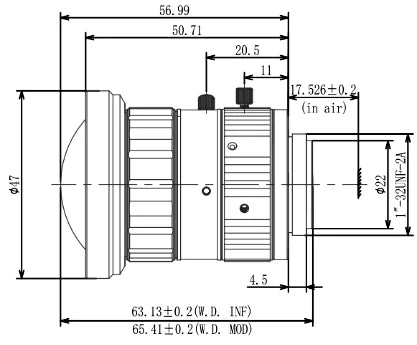

| Size | dia. 47 x 56.99 mm |
|---|---|
| Filter size | M43.5 x P0.5 |
| Mount | C |
| Weight | 175 g |
| Shipping weight (estimated) | 0.34 kg |
