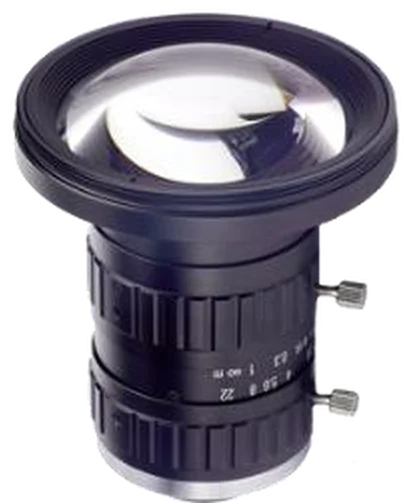

8 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0537)
  • 8 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0537)

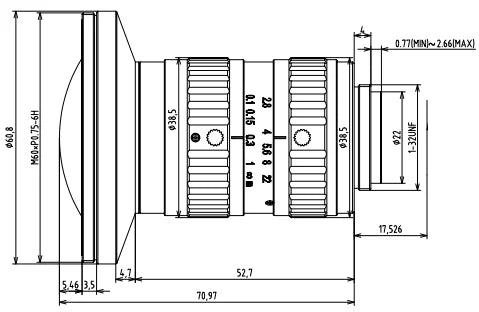

  • LS-FFL-0537 dimensions (mm)

Machine vision lenses

8 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0537)

Model LS-FFL-0537

  • Focal length8 mm
  • Magnification0.0016x ~ 0.0696x (5000-100 mm WD)
  • MountC-mount
  • Sensor1.1"
  • ApertureF2.8 Manual iris
  • Resolution25 Megapixel
$669.00

Ships in 2-3 weeks

0.52 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8 mm, 1.1", 25 MP, C-mount Machine Vision Lens (LS-FFL-0537)LS-FFL-0537

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8 mm, 1.1", 25 MP, C-mount Machine Vision Lens. 8 mm, 25 megapixel C-mount machine vision lens for 1.1" sensors (also 1", 2/3", 1/1.8", 1/2"), distortion <3.2%, magnification 0.0016x to 0.0696x. At a glance: magnification range 0.0016x ~ 0.0696x (5000-100 mm WD); focal length 8 mm; format 1.1"; resolution 25 Megapixel; aperture F2.8 Manual iris.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0537
Format1.1"
Angle of view (1.1" (14.13 x 10.35mm), DxHxV)94.4 x 82.8 x 65.8 deg
Angle of view (1" (11.26 x 11.26mm), DxHxV)89.6 x 70.4 x 70.4 deg
Angle of view (2/3" (8.4 x 7.1mm), DxHxV)69.1 x 55.2 x 47.5 deg
Angle of view (1.1")94.4 x 82.8 x 65.8 deg (1.1" = 14.13 x 10.35 mm)
Angle of view (1")89.6 x 70.4 x 70.4 deg (1" = 11.26 x 11.26 mm)
Angle of view (2/3")69.1 x 55.2 x 47.5 deg (2/3" = 8.4 x 7.1 mm)
Angle of view (1.1", DxHxV)94.4 x 82.8 x 65.8 deg

Optics

Focal length8 mm
ApertureF2.8 Manual iris
M.O.D.0.1 m
Distortion<3.2%
Back focal length13.29 mm
F-number rangeF2.8-22
Magnification range0.0016x ~ 0.0696x (5000-100 mm WD)

Sensor and imaging

Resolution25 Megapixel

Mechanical

Sizedia. 60.8 x 70.97 mm
MountC
Front threadM60 x 0.75
Optical total length88.4 mm
Shipping weight (estimated)0.52 kg

Other models in the 1.1" machine vision lenses (LS-FFL-S84) series

See all 39 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0534 6 mm, 1.1", 12 MP, C-mount $419.00 Ships in 2-3 weeks View
LS-FFL-0535 8 mm, 1.1", 12 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0538 12 mm, 1.1", 10 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0548 25 mm, 1.1", 10 MP, C-mount $459.00 Ships in 2-3 weeks View
LS-FFL-0553 35 mm, 1.1", 10 MP, C-mount $479.00 Ships in 2-3 weeks View
LS-FFL-0558 50 mm, 1.1", 10 MP, C-mount $499.00 Ships in 2-3 weeks View
LS-FFL-0559 50 mm, 1.1", 10 MP $499.00 Ships in 2-3 weeks View
LS-FFL-0536 8 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0539 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0540 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0541 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0542 12 mm, 1.1", 25 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0543 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0566 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0544 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0545 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0546 16 mm, 1.1", 25 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0547 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0567 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0570 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0549 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0550 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0551 25 mm, 1.1", 25 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0552 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
