16 mm, 1.1", 20 MP, C-mount Machine Vision Lens (LS-FFL-0545)
  • 16 mm, 1.1", 20 MP, C-mount Machine Vision Lens (LS-FFL-0545)

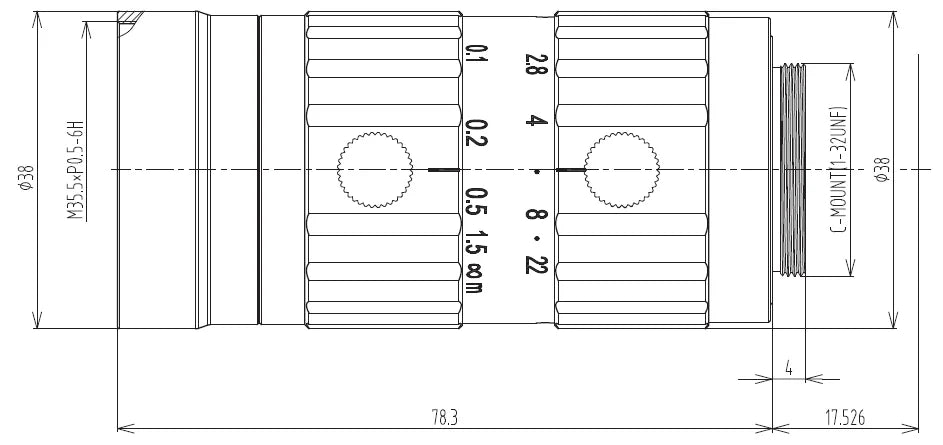

  • LS-FFL-0545 dimensions (mm)

Machine vision lenses

16 mm, 1.1", 20 MP, C-mount Machine Vision Lens (LS-FFL-0545)

Model LS-FFL-0545

  • Focal length16 mm
  • MountC-mount
  • Sensor1.1"
  • ApertureF2.8 manual iris
  • Resolution20 MP
$679.00

Ships in 2-3 weeks

0.43 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

16 mm, 1.1", 20 MP, C-mount Machine Vision Lens (LS-FFL-0545)LS-FFL-0545

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

16 mm, 1.1", 20 MP, C-mount Machine Vision Lens. 16 mm 1.1" 20 MP C-mount machine vision lens with <0.5% distortion; covers 1.1" down to 1/2" sensors. At a glance: focal length 16 mm; format 1.1"; resolution 20 MP; aperture F2.8 manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0545
Format1.1"
Angle of view (1.1", DxHxV)55.4 x 46.3 x 36 deg
Angle of view (1", DxHxV)53.1 x 44 x 33.5 deg
Angle of view (2/3", DxHxV)38 x 31 x 23.3 deg

Optics

Focal length16 mm
ApertureF2.8 manual iris
Back focal length22.4 mm
M.O.D.0.1 m
Distortion<0.5%
Filter threadM35.5 x P0.5

Sensor and imaging

Resolution20 MP

Light

Illumination45%

Mechanical

Sizedia. 38 x 78.3 mm
MountC
Weight235 g
Optical total length95.8 mm
Shipping weight (estimated)0.43 kg

Other models in the 1.1" machine vision lenses (LS-FFL-S84) series

See all 39 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0553 35 mm, 1.1", 10 MP, C-mount $479.00 Ships in 2-3 weeks View
LS-FFL-0558 50 mm, 1.1", 10 MP, C-mount $499.00 Ships in 2-3 weeks View
LS-FFL-0559 50 mm, 1.1", 10 MP $499.00 Ships in 2-3 weeks View
LS-FFL-0536 8 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0537 8 mm, 1.1", 25 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0539 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0540 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0541 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0542 12 mm, 1.1", 25 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0543 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0566 12 mm, 1.1", 20 MP, C-mount $669.00 Ships in 2-3 weeks View
LS-FFL-0544 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0546 16 mm, 1.1", 25 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0547 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0567 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0570 16 mm, 1.1", 20 MP, C-mount $679.00 Ships in 2-3 weeks View
LS-FFL-0549 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0550 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0551 25 mm, 1.1", 25 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0552 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0568 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0571 25 mm, 1.1", 20 MP, C-mount $689.00 Ships in 2-3 weeks View
LS-FFL-0554 35 mm, 1.1", 20 MP, C-mount $709.00 Ships in 2-3 weeks View
LS-FFL-0555 35 mm, 1.1", 20 MP, C-mount $709.00 Ships in 2-3 weeks View
